HGLRC Parrot120

HGLRC Parrot120
Brand: Other
Category: Drones
  • Feature 1: CPU: STM32F411CEU6
  • Feature 2: Input Voltage: 2-4S Lipo
  • Feature 3: BEC Output: 5V 2A
  • Feature 4: Input Voltage: 2-4S Lipo
  • Feature 5: Installing Hole: 16x16mm, M2
  • Feature 6: CPU: SILABS EFM8BB2 48MHZ

HGLRC Parrot120 - Video

HGLRC Parrot120 - Price

HGLRC Parrot120 - Specs

Product Details

  • Features

    Item Name: FD411 Flight Controller
    MPU: MPU6000-SPI
    CPU: STM32F411CEU6
    Black Box: NO
    Input Voltage: 2-4S Lipo
    Built-in Betaflight OSD to adjust PID
    BEC Output: 5V 2A
    Size: 21x21mm
    Installing Hole: 16x16mm, M2
    Support SBUS/PPM/DSMX/iBUS receiver
    Weight: 2.7g
  • Specification
    Brand Name: HGLRC
    Model: Parrot120
    Item Name: 20mm F4 2.5 Inch Toothpick FPV Racing Drone
    Version: PNP ( Without Receiver); With Frsky XM+ Receiver; With Flysky A8S V2 Receiver
    Drone Wheelbase: 120mm
    Material: Carbon Fiber
    Arm Thickness: 2.0mm
    Standoff Height: 23mm
    Flight control installation holes: 16*16mm
    Support camera: 14X14mm
    Empty Frame Weight: 15g
    Net Weight of Drone: 57.6g
  • Package content
    1x Parrot120 Frame Kit
    1x FD411 Flight Controller
    1x FD13A 4in1 BLS ESC
    1x FD VTX
    4x FD1103 8000KV Brushless Motor
    1x Caddx.us Turbo Eos2 FPV Camera
    6x Gemfan 65mm propeller
    1x IPEX Antenna
    1x Receiver ( Optional)

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

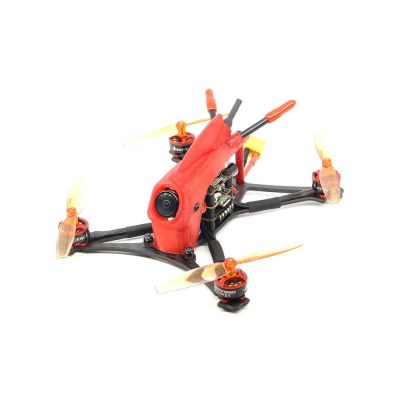

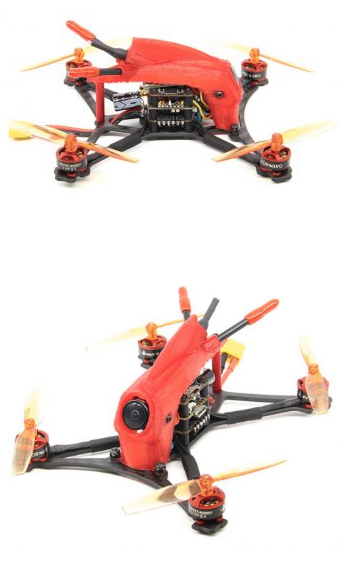

HGLRC Parrot120 120mm F4 2.5 Inch Toothpick FPV Racing Drone

Toothpicks are in fashion! This small nano racer based on a minimalist frame 2 mm thick, reinforced by double arms, is based on Gemfan bipal propellers 6.5 cm in diameter. The heart of the aircraft is a HGLRC FD411 flight controller based on an F4 processor, flashed with Betaflight, with an active OSD. It is associated with a 4 in 1 ESC of 13A DShot600. All of them drive the brushless motors FD1103 at 8000KV.

The onboard camera is a Caddx Turbo EOS2 1200TVL, whose images are broadcast by a 5.8 GHz HGLRC FD transmitter capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW, 200 mW and 400 mW, with a dipole antenna with IPEX connector. This allows large flights without worrying about range. The device is optionally delivered without a radio receiver, with a Flysky A8S V2 or FrSky XM+ receiver. Weight? 57.6 grams without the battery. HGLRC recommends 300 mAh 3S batteries. The price? The HGLRC Parrot120 will be available from $103.00 at Banggood (without shipping, without taxes). Note that a Pro version has the same characteristics as the device, but replaces the motors with 1106 to 6000KV brushless motors. It is also offered by Banggood, starting at $124.00 (still excluding port and taxes).
