HK1 Mini Plus TV Box

HK1 Mini Plus TV Box
Brand: Other
Category: TV Box
  • Feature 1: Android 9.0
  • Feature 2: SOC Rockchip RK3318
  • Feature 3: 2GB / 4GB LPDDR4 RAM + 16GB / 32GB / 64GB EMMC ROM
  • Feature 4: 2.4GHz + 5GHz dual band WiFi
  • Feature 5: 100Mbps Ethernet
  • Feature 6: Support 4K ultra HD image display

HK1 Mini Plus TV Box - Price

HK1 Mini Plus TV Box - Specs

Product Details

  • Features
    CPU: RK3318 Quad-Core 64bit Cortex-A53
    GPU: Penta-Core Mali-450 Up to 750Mhz+
    RAM: 2GB / 4GB
    ROM: EMMC 16GB/32GB/ 64GB
    Android 9.0 OS
    2.4G/ 5G Dual WIFI , BT4.0
    Supports 3D , 4K , HDR10 and HLG modes
    USB 3.0 , Digital Display
  • Specification
    Type: TV Box
    GPU: Mali-450MP5
    CPU: Rockchip RK3318
    Core: Quad Core
    RAM Type: LPDDR4
    Max. Extended Capacity: TF card up to 64GB (not included)
    TV Box Features: 5G WiFi

    5G WiFi: Yes
    Bluetooth: Bluetooth 4.1
    Power Supply: Charge Adapter
    Interface: AV,DC 5V,HDMI 2.0,LAN,TF card,USB2.0,USB3.0
    Language: Multi-language
    HDMI Version: 2.0
    Other Functions: Others
  • Package content
    1 x HK1 Mini Plus Smart TV Box
    1 x Remote Control
    1 x HDMI Cable
    1 x Power Adapter
    1 x English Manual

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

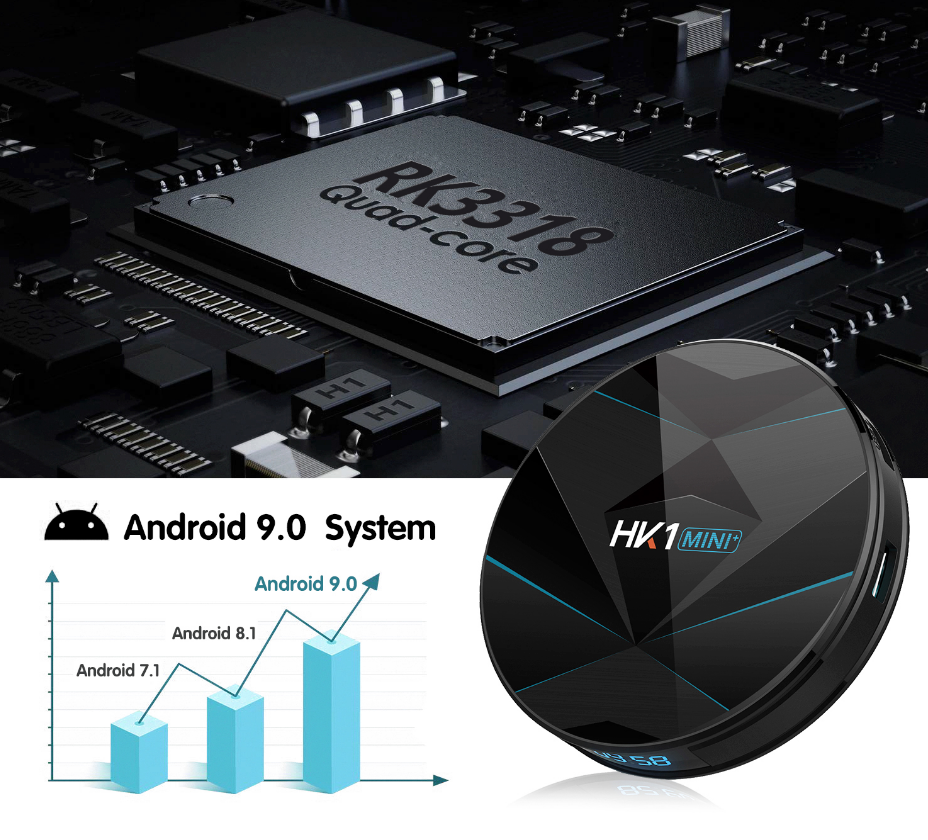

HK1 Mini Plus TV Box with Rockchip RK3318

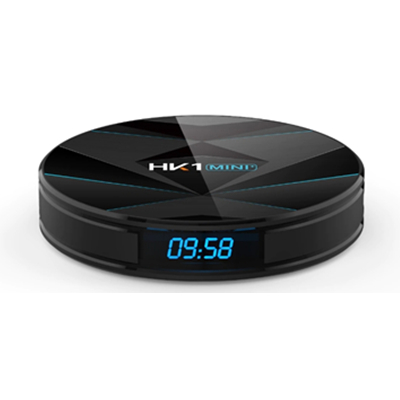

The new set-top box called HK1 Mini Plus is equipped with the new SoC Rockchip RK3318, which has recently gained popularity in low-cost set-top boxes. The HK1 Mini Plus is remarkable for its round plastic case, which we have already seen in other models of Chinese TV boxes HK1 MAX, running on RK3328 and HK1 Plus with Amlogic S905X2. This media player is also available in several versions, with different capacities of RAM and built-in memory.

The new TV Box HK1 Mini Plus is based on the new Rockchip RK3318 chipset with four ARM Cortex-A53 processors capable of up to 1.5 GHz and a Mali-450MP5 graphics processor that includes H.265 and VP9 video decoding even in 4K @60fps resolutions with HDR support. It has versions with 2/4 GB of DDR3 RAM and 16/32/64 GB of eMMc memory that can be extended by adding a memory card to the included microSD card reader.

The HK1 Mini Plus TV Box supports dual-band WiFi and Bluetooth 4.0. There is a USB 3.0 port and one USB 2.0 port, a 10/100 network port, an analog AV connector and an HDMI 2.0a port around the perimeter, which provides up to 4K @60fps video output.

The set-top box includes the TV box itself, an HDMI cable to connect the set-top box to the TV, a power supply with the plug you need and an operating manual in English.
