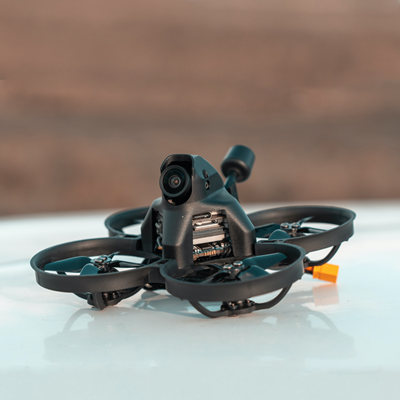

iFlight Alpha 85 HD

iFlight Alpha 85 HD
Brand: iFlight
Category: Drones
  • 1: Butter smooth XING-E 1204
  • 2: Ducts to protect the sensitive environment or yourself
  • 3: Pre-tuned with smooth cinematic settings
  • 4: iFlight Sigma 5.8G light antenna upgrade
  • 5: Pre-tuned with smooth freestyle settings
  • 6: iFlight Sigma 900mhz light micro antenna upgrade

iFlight Alpha 85 HD - Specs

Product Details

  • Features
    84.5 grams (without battery)
    Butter smooth XING-E 1204,more torque and efficiency with longer flight times compared to 1105 motors
    Ducts to protect the sensitive environment or yourself
    Pre-tuned with smooth cinematic settings
    iFlight Sigma 5.8G light antenna upgrade
    iFlight Sigma 900mhz light micro antenna upgrade
  • Specification
    SucceX-D 20A F4 Whoop AIO
    Motor: XING-E 1204 4500KV
    Wheelbase: 85mm
    Body size: 125*125mm
    Ducted propeller size: 2 inch
    FC pattern: 25.5*25.5mm
    FPV cam spacing: 14mm
    Weight: 84.5g (without battery)
    Flight time: 5-7 min cruising (4S 450mAh)
  • Package content
    1x Alpha 85mm Frame
    1x Caddx Nebula Digital HD System Kit
    1x iFlight Sigma 5.8g light antenna
    2sets HQ 2 inch 4-blades (Set of 4 - Color May Vary)
    1x iFlight Lipo Strap

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 8 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

iFlight Alpha A85 HD Whoop w/Caddx Nebula Digital HD System

iFlight offers a new Tinywhoop nano racer equipped with DJI’s digital video return technology! It is the 85 HD, from the Alpha range of the manufacturer. To reduce the weight, the housing is a Vista from Caddx and the camera is the brand new Nebula, also from Caddx. The set is compatible with DJI’s Digital FPV System headphones and DJI’s radio. If you are equipped with this radio control, you do not need a radio receiver. But iFlight offers versions with FrSky’s XM+ or R-XSR, TBS’s Crossfire Nano or Flysky’s XR602T-A if you fly with another radio control.

The unit measures 12.5 x 12.5 cm with a motor-to-engine diagonal of 8.5 cm and a weight of 84.5 grams without the battery. To carry the Caddx system, iFlight has chosen Xing-E 1204 to 4500KV brushless motors for 2-inch four-blade HQ propellers, surrounded by protective covers. The flight controller is a SucceX-D F4 Whoop AIO coupled to a 20A BLheli_S ESC 4 in 1. iFlight recommends a 450 mAh 4S battery, not supplied. According to the manufacturer, the autonomy varies between 5 and 7 minutes. iFlight assures to have worked on the Betaflight settings to optimize the behavior of the beast.
