iFlight iH2 HD

iFlight iH2 HD
Brand: iFlight
Category: Drones
  • 1: MCU:168MHz STM32F405
  • 2: Motor: XING-E 1204 4500KV
  • 3: BEC:5V 2.5A
  • 4: Wheelbase: 120mm
  • 5: Bottom plate thickness: 2.5mm
  • 6: Flight time: 5-6 min cruising

iFlight iH2 HD - Price

iFlight iH2 HD - Specs

Product Details

  • Features
    126.5 grams without battery
    Butter smooth XING-E 1204
    Duct prop guards to protect the sensitive environment or yourself
    Pre-tuned with smooth freestyle settings
  • Specification
    SucceX-E mini F4 + mini 35A stack
    Motor: XING-E 1204 4500KV
    Wheelbase: 120mm
    Body size: 100*68mm
    Bottom plate thickness: 2.5mm
    Top plate thickness: 1.5mm
    Top and bottom plate spacing: 22mm (aluminum column height 25mm)
    Ducted propeller size: 2 inch
    Maximum propeller size without ducts: 2.5 inch props
    FC pattern: 20*20mm,16*16mm
    FPV cam spacing: 19mm
    Weight: 126.5g (without battery)
    Flight time: 5-6 min cruising

    MCU:168MHz STM32F405
    Betaflight OSD:YES
    BEC:5V 2.5A
    ESC Telemetry:yes
    INA Pad:nuart2
    Input voltage:2-6
  • Package content
    1x iH2 HD Frame
    1x Caddx Vista Digital HD System Kit
    1x TPU Antenna holder
    2x TPU camera side plate soft mount
    2x Emax 2 inch / 2.5 inch 3-blades (Set of 4 - Color May Vary)
    1x iFlight Lipo Strap

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

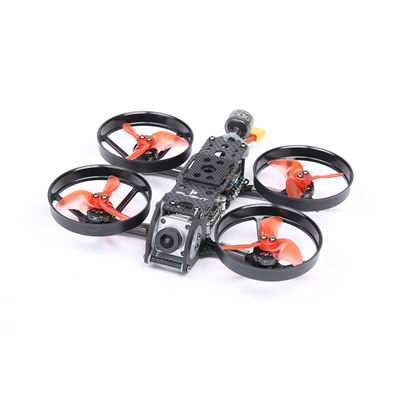

iFlight iH2 HD 2Inch 120mm Wheelbase 4S Whoop BNF w/Caddx Vista Digital HD System FPV Racing RC Drone

The iH2 of iFlight is a nano racer that dates from the end of 2018. So much to say an eternity in the racers universe! The device is updated with an HD version based on DJI’s Digital FPV System, in its Caddx Vista version. To tell the truth, the only thing it has in common with the original version is the name and size of the propellers. The rest of the structure has been redesigned for a longer shape. This allows the Vista block to be placed at the front, the flight controller and the ESC at the rear. The arms are 2.5 cm thick, and the engine to engine diagonal is 12 cm.

The unit weighs 126.5 grams without battery. It is powered by a SucceX-E mini F4 flight controller flashed with Betaflight associated with a 35A ESC 4 in 1 BMheli_S. It is powered by brushless Xing-E 1204 to 4500KV motors for Emax 3-blade 2-inch propellers, or 2.5-inch by removing the factory installed propeller guards.

The camera is DJI’s camera, associated with the Caddx Vista component which takes care of sending the video return to a DJI headset. Vista also allows the radio link if you have a DJI radio control. Otherwise, you need to add a radio receiver. iFlight offers pre-installed versions with an R-XSR or XM+ from FrSky, or a Crossfire Nano from TBS. There is no battery supplied with the device. iFlight recommends a 4S of 450 mAh, for an estimated autonomy of 4 to 5 minutes. iFlight’s iH2 HD is available for $289.99.
