iFlight TurboBee 160RS

iFlight TurboBee 160RS
Brand: iFlight
Category: Drones
  • 1: Standoff height: 25mm
  • 2: Propeller size: 4 inch
  • 3: Top plate thickness: 4mm
  • 4: Bottom Plate thickness: 2.5mm
  • 5: Body size: 123*111mm
  • 6: Wheelbase: 165mm

iFlight TurboBee 160RS - Price

iFlight TurboBee 160RS - Specs

Product Details

  • Features
    -SucceX Micro F4 F1.5 Flight controller is 2-4s Lipo Compatible
    -The lightest toothpick 1404 brushless motor on the market with double ball bearings
    -Light, Powerful and smooth configuration
    -Compatible both for 2s/3s Lipo/LIHV
  • Specification
    Wheelbase: 165mm
    Body size: 123*111mm
    Weight: 29.9g
    Standoff height: 25mm
    Bottom Plate thickness: 2.5mm
    Top plate thickness: 4mm
    Flight control mounting holes: 16 * 16mm / 20 * 20mm
    Support camera size: 14 * 14mm nano camera
    Motor mounting holes: 14xx series (9mm)
    Propeller size: 4 inch

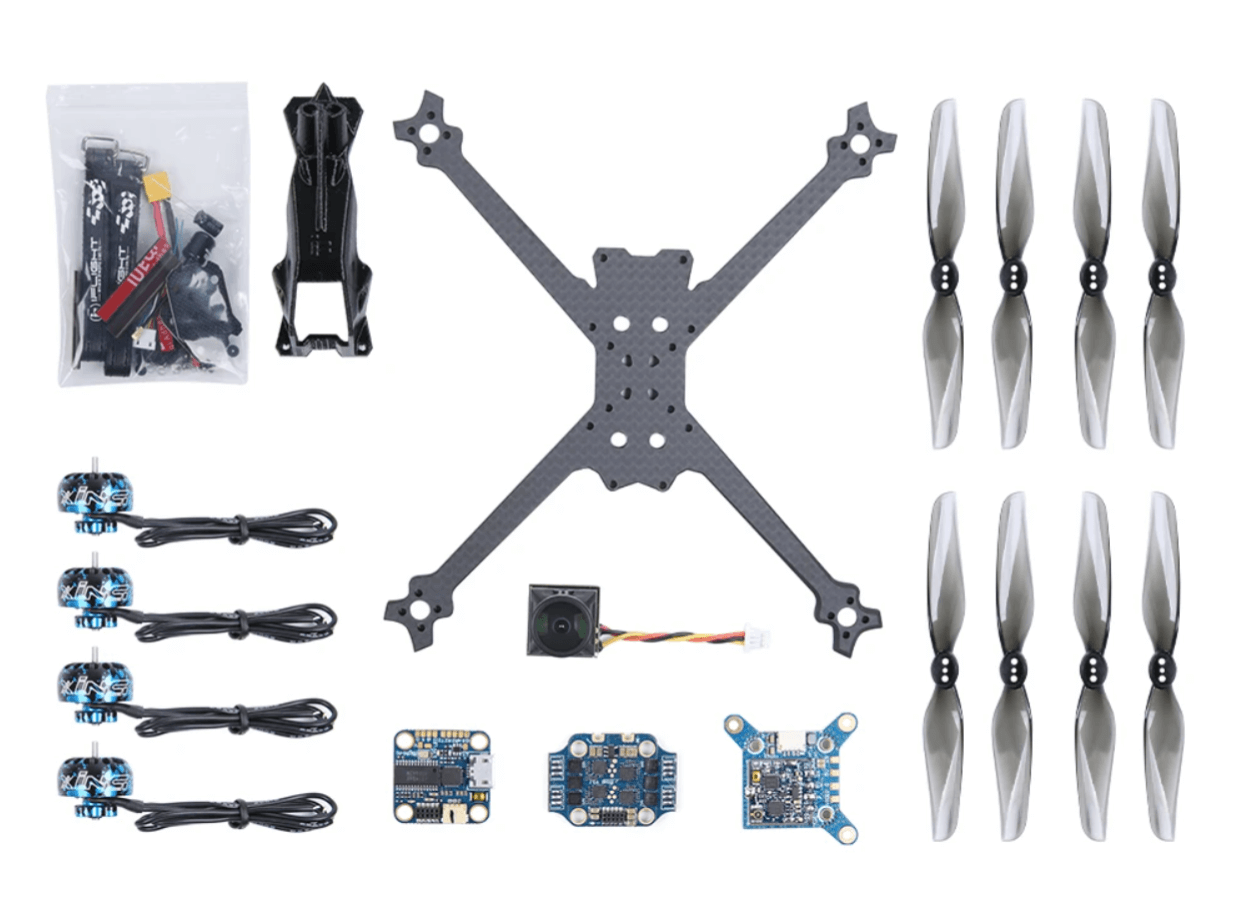

  • Package content
    -160RS frame with duct x 1set
    -TPU canopy x 1pc
    - SucceX Micro V1.5+15A 4IN1 ESC flystack x 1set
    - SucceX Micro300mW VTX
    - XING 1404 3800KV motor x 4pcs
    - T4030 propellers x 4pairs
    - Sigma special antenna ipex/ UFL x 1pc
    - Screws//Standoffs//spare cables

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

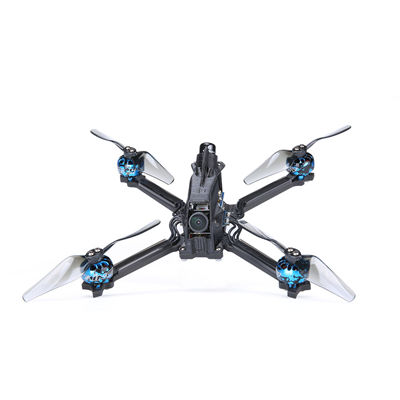

iFlight TurboBee 160RS 165mm Wheelbase 4Inch DIY Build Kit FPV Racing Frame

It is a minimalist and medium-sized racer from the manufacturer iFlight. It follows the TurboBee 136RS and TrurboBee 120RS (tested here). The TurboBee 160RS measures 16.5 cm diagonal from engine to engine, with an extended 4 mm thick unibody X-shaped carbon frame. The motors are brushless Xing 1404 to 3800KV for 4-inch 4030 two-blade propellers. The flight controller is a SucceX Micro F4 V1.5 flashed with Betaflight coupled with a ESC 4 in 1 of 15A.

The video part? The video transmitter is a SucceX Micro 300 mW, a 5.8 GHz model capable of transmitting with a power of 25 mW (the maximum allowed in France), but also 100 mW, 200 mW, or 300 mW. The antenna connector is an IPEX, and the supplied antenna is a polarized Sigman. And the camera? There is no camera in this pack… You have to choose your own, in 1.4 x 1.4 cm (nano) format.

It’s a kit! Same for the radio receiver, there’s no radio receiver in the pack. It is also up to you to assemble the device, as it is supplied in kit form. This feature ensures a light price. The TurboBee 160RS is designed to be powered by 2S or 3S batteries (not included). The price ? The TurboBee 160RS will be offered at $149.99 at Banggood.
