iFlight SucceX mini F7

iFlight SucceX mini F7
Brand: iFlight
Category: Gadget
  • Feature 1: Current sensor: yes
  • Feature 2: Blackbox: 32MB
  • Feature 3: ESC Telemetry: RX6
  • Feature 4: Target: EXF722DUA
  • Feature 5: 48 standard channels, A/B/E/F/R Band
  • Feature 6: 5.8G Video transmitter (U.FL)

iFlight SucceX mini F7 - Coupon

Banggood Coupon: BGNAbprc01   Price: $67.99

iFlight SucceX mini F7 - Price

iFlight SucceX mini F7 - Specs

Product Details

  • Features
    * STM32 F405 MCU FC w/OSD, integrated dual IMC20689 accelerometer and gyro;
    * Plug-in connection, pin header design, easy to install and disassemble;
    * Support current meter;
    * BLHeli-32-bit 35A 4-IN 1 ESC
    * Super-lightweight(including screws,aluminum column & nuts):
    FC&ESC:13.9g
    FC & ESC & VTX:16.4g
    * Switchable pit/20/100/200//500mW 48CH VTX
  • Specification
    FC:
    MCU: 216MHz STM32F722RET6
    Gyro: TwinG ICM20689
    Blackbox: 32MB
    OSD: yes
    Uarts: 4Set
    ESC Telemetry: RX6
    INA Pad: nuart2
    Input voltage: 2-6S
    Target: EXF722DUAL
    CLI config: IFLIGHTF7_TWIN_G.config
    Size:27*27mm /20*20mm φ3 mounting

    ESC:
    Input voltage: 2-6S
    Current: 35A
    Current sensor: yes
    Telemetry output: yes
    Target: iFlight-BL32-4in1 BL32-32.6
    Size: 31*31mm /20*20mm φ3 mounting

    VTX:
    Input voltage: 2-6S
    48 standard channels, A/B/E/F/R Band
    Output Power: pit/20/100/200/500mW
    BEC Output: 5V/1A for Camera or FC
    RF Connector: U.FL (IPEX)
    Video Format: NTSC/PAL
    Size: 26*26mm /20*20mm φ3 mounting
    U.FL version Packing
    5.8G Video transmitter (U.FL)
    U.FL 5.8G whip antenna
  • Package content
    - 1 x SucceX mini F7 V3 Flight Controller
    - 1 x SucceX V7 Mini 35A V3 2-6S 4 in 1 ESC
    - 1 x Succex Mini VTX (Optional)
    - Cable Set

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

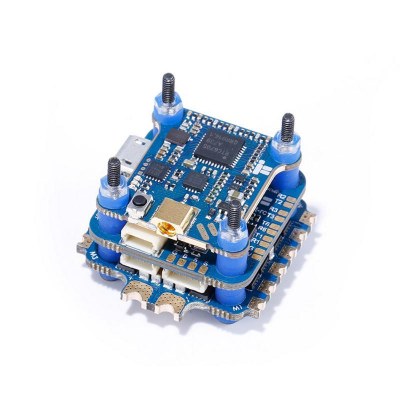

iFlight SucceX mini F7 TwinG V3 F722 Flight Controller

“The micro racers will be 6S or not,” says JPSartreFPV on its YouTube channel. What is certain is that manufacturers of electronics for small racers are offering increasingly powerful components. This all-in-one SucceX by iFlight range measures 3.1 x 3.1 cm with 2 x 2 cm M3 mounting holes. It is based on an F7 processor-based flight controller, with an active OSD, 4 UART, ESC telemetry and flashed with Betaflight. The ESC 4 in 1 supports 35A and batteries up to 6S !

The SucceX mini F7 can be equipped with a 5.8 GHz video transmitter compatible with 48 channels, with a transmission power of 0 mW (pitmode), 25 mW (the maximum allowed in France without the risk of being hung high and short), but also 100 mW, 200 mW and 500 mW to go further. The antenna (not supplied) is to be connected to a u.FL… connector according to the technical data sheet. The pictures, on the other hand, show an MMCX connector. The price? It will be from $79.99 at Banggood. The price with the video transmitter is not yet indicated.
