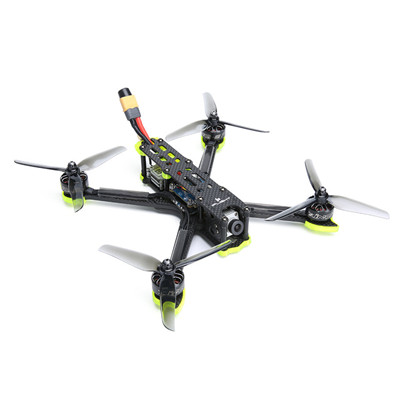

iFlight Nazgul5 HD 6S

iFlight Nazgul5 HD 6S
Brand: iFlight
Category: Drones
  • 1: 5mm arm design for more durability
  • 2: Easy-Swap arms
  • 3: LED illuminated Logo
  • 4: XING-E 2207 motors and NAZGUL 5140 props
  • 5: Popular True-X configuration
  • 6: Fits both 30.5x and 20x stacks

iFlight Nazgul5 HD 6S - Price

iFlight Nazgul5 HD 6S - Specs

Product Details

  • Features
    - 5mm arm design for more durability
    - Easy-Swap arms
    - LED illuminated Logo
    - XING-E 2207 motors and NAZGUL 5140 props
    - 5" version also fits 5.1" style propellers
    - Popular True-X configuration
    - TPU crash-guards
    - Fits both 30.5x and 20x stacks
  • Specification
    Brand name: iFlight
    Item name: Nazgul5 HD 4S 5 Inch FPV Racing Drone
    SucceX-E F4 45A Flight Stack
    XING-E 2207 FPV Motor ( 6S 1800KV )
    Wheelbase: 240mm
    Body Size: 170*170mm
    Propeller Size: 5 inch /5.1 inch
    FC Mounting Hole: 30.5*30.5/20*20 mm
    FPV Cam Spacing: 19mm
    Weight: 400.8g (without battery)
  • Package content
    1 x XL5 V5 Frame
    1 x Caddx Vista Digital HD System Kit
    1 x SucceX-E F4 45A Flight Stack
    4 x XING-E 2207 FPV Motor ( 6S 1800KV )
    1 x Albatross LHCP RP-SMA 5.8g antenna
    2sets x Nazgul 5 inch 3-blades (Set of 4 - Color may vary)
    1 x 20*200mm Microfiber PU Leather Battery Strap (Color May Vary)
    1 x 20*250mm Microfiber PU Leather Battery Strap (Color May Vary)

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

iFlight Nazgul5 HD 6S 5 Inch 240mm Freestyle FPV Racing Drone

The Nazgul5 from iFlight is a device that I liked a lot (see the test here). The manufacturer already proposes its successor, the Nazgul5 V2 HD! Inside, there is a Caddx Vista box and a DJI camera: it is equipped with the Digital FPV System which allows a digital video return in HD.

What are the other modifications? The Nazgul5 V2 HD is based on version 5 of the XL5 carbon structure, with the iFlight logo displayed with an LED underneath. Its independent 5mm thick motor arms have been redesigned for extra strength: they are 1.5cm wide at the base and 1.2cm wide at the end (compared to the 1.15cm and 1.13cm of the V4). It is designed for 5 and 5.1 inch propellers (iFlight supplies a set of Nazgul 5140), powered by brushless motors Xing-E 2207 at 2750KV for the 4S version, 1800KV for the 6S version. The flight controller is a SucceX-E F4 flashed with Betaflight, associated with an ESC 4 in 1 SucceX-E 45A BLheli_S.

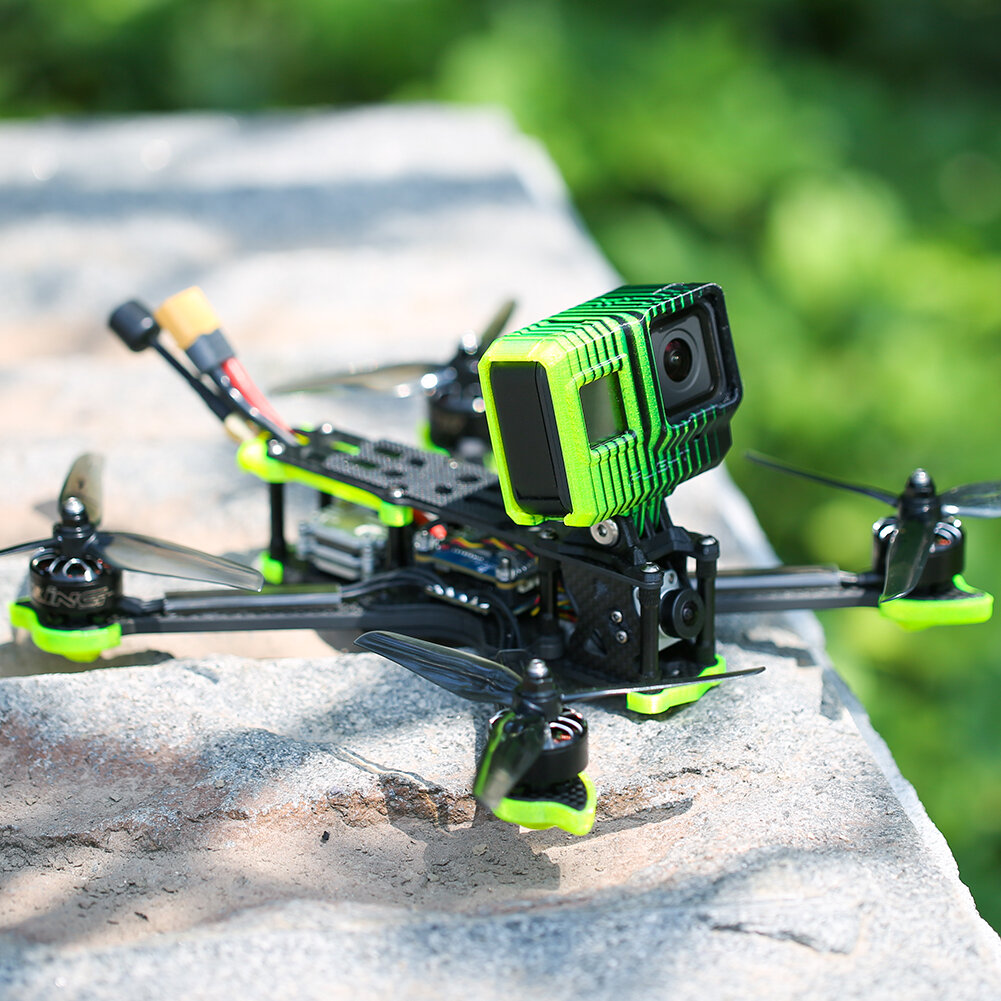

The Nazgul5 V2 HD comes ready to fly, with its PIDs set, just connect it to a DJI radio control and headphones. If you prefer to use another radio protocol, the unit can be delivered pre-equipped with an XM+ or R-XSR, EU-LBT or Non-EU receiver, FrSky, or a Crossfire Nano RX from TBS. The GoPro camera mount is not included in the basic package, but is available as an option for models 5, 6, 7 and 8. The price? The Nazgul5 V2 HD can be pre-ordered directly from iFlight starting at $300, or from Banggood starting at €288.
