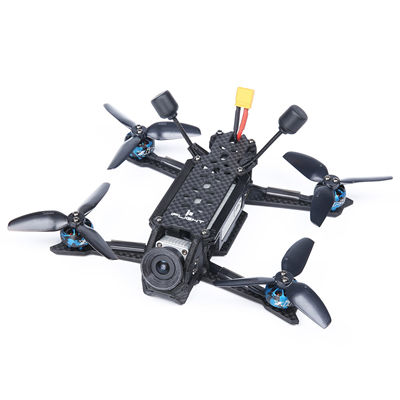

iFlight TITAN H3 HD

iFlight TITAN H3 HD
Brand: iFlight
Category: Drones
  • 1: SucceX-D Mini F7 + 35A BL_S ESC Stack
  • 2: Bind and Fly Built and test flown
  • 3: Equipped with the DJI FPV Air Unit -Bind and Fly
  • 4: Buttery-smooth 720p 120fps FPV feed
  • 5: Pre-tuned with smooth freestyle settings
  • 6: Full 3K Carbon Fiber airframe with chamfered arms

iFlight TITAN H3 HD - Price

iFlight TITAN H3 HD - Specs

Product Details

  • Features
    1. Equipped with SucceX-D Mini F7 + 35A BL_S ESC Stack
    2. Bind and Fly Built and test flown
    3. Equipped with the DJI FPV Air Unit -Bind and Fly
    4. Buttery-smooth 720p 120fps FPV feed
    5. Pre-tuned with smooth freestyle settings
    6. Full 3K Carbon Fiber airframe with chamfered arms
    7. Equipped with XING 1404 motors
  • Specification
     Brand Name: iFlight
     Model: TITAN H3 HD
     Item Name: 142mm SucceX-D Mini F7 3 Inch FPV Racing Drone
     Wheelbase: 142mm

     Weight: 170.6 without battery
     Recommend Lipo Battery: 4S 650mAh/850mAh Lipo
  • Package content
    1x Prebuilt and tested TITAN H3 HD Quadcopter
    1x DJI Digital HD FPV Air Unit (FPV Camera + Air Unit Module)
    1x TPU Bracket for DJI Air Unit Module
    1x TPU Antenna holder for DJI antenna
    2x TPU camera side plate soft mount
    1x iFlight Lipo Strap
    2x HQ T3x3x3 Propeller (Set of 4 - Color May Vary)
    4x XING 1404 4600KV Motor
    1x SucceX-D Mini F7 Flight Controller
    1x SucceX-E Mini 35A 4in1 ESC BLheli_S 2-6S
    2x DJI FPV Air Unit Antenna (MMCX 90° - Pair) (From Air Unit Packaging)

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

iFlight TITAN H3 HD 142mm SucceX-D Mini F7 4S 3 Inch FPV Racing Drone

The manufacturer iFlight is building a range of racers equipped with DJI’s digital video feedback system, and adding this Titan H3 HD to it. It is a little more imposing than the Titan DC2 HD, with a motor-to-motor diagonal of 14.2 cm. But it’s still a small size … The motors are Xing 1404 to 4600KV for 3 inch HQ 3 * 3 * 3 propellers. The flight controller is a SucceX-D Mini F7 flashed with Betaflight, associated with an ESC 4 in 1 SucceX-E Mini 35A BLheli_S.

Real-time video feedback is provided by the DJI camera associated with an FPV Air Unit and its two antennas, capable of sending the image in 720p at 120 fps to DJI’s headphones, and recording 1080p / 60 fps on board the Titan H3 HD. TPU support absorbs vibrations, another guides DJI antennas. To take off, all you need is a helmet, a DJI radio and a battery, not supplied. iFlight recommends a Lipo 4S from 650 to 850 mAh with an XT30 connector.

Without battery, it is 170.6 grams. If you prefer a remote control other than that of DJI, you can choose the device equipped with an R-XSR or XM + receiver from FrSky, or Crossfire Nano from TBS. The price ? The iFlight TITAN H3 HD will be offered from 349.99 USD at Banggood Online Store.
