JGMaker® Artist-D

JGMaker® Artist-D
Brand: Other
Category: 3D Printer
  • 1: Large Build Volume
  • 2: Quick Nozzle Replacement
  • 3: Dual Z-axis Design
  • 4: Two-step Modular Design
  • 5: Filament Runout Detector
  • 6: Direct Drive Extruder

JGMaker® Artist-D - Price

JGMaker® Artist-D - Specs

Product Details

  • Features
    1. Large Build Volume
    2. Quick Nozzle Replacement
    3. Dual Z-axis Design
    4. Two-step Modular Design
    5. Linear Rail
    6. Filament Runout Detector
    7. Direct Drive Extruder
    8. 32 Bit Silent Board
    9. Clean Internal Wiring
    10. Power Resume Printing
    11. Thermal Runaway Protection
  • Specification
    Model: Standard Artist-D
    Color: Black
    Nozzle diameter: 0.4mm
    Print accuracy: 0.05~0.30mm
    Layer thickness: 0.05~0.3mm (Recommend 0.2mm)
    Printing speed: 10~120mm/s
    Nozzle number: Independent dual extruder nozzle
    Filament diameter: 1.75mm±0.05mm
    Hotbed size: 310*310mm
    Build size: 300*300*340mm
    Nozzle temperature: 180~245℃
    Power requirements: AC 110/220V Optional
    Rated power: 360W
    Dimension: 560*640*630mm
    Net weight: 13.5kg
    Shipping dimension: 680*670*320mm
    Shipping weight: 20.5kg
    Bed leveling: Manually adjust
    Control panel: LCD display + Control dial
    Screen language: English
    Supported materials: PLA/ABS/TPU/Wood, etc.
    Supported file types: STL、OBJ、G-Code
    Build surface: FA specially made platform
    Filament sensor: Supported
    Software: Cura/JGcreat (64 bit)
    Supported OS: Windows7/Windows10/XP
    Connectivity: SD card
    Operating environment: Temperature 5℃~40℃; Humidity 20~50%
  • Package content
    1 x 3D Printer

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

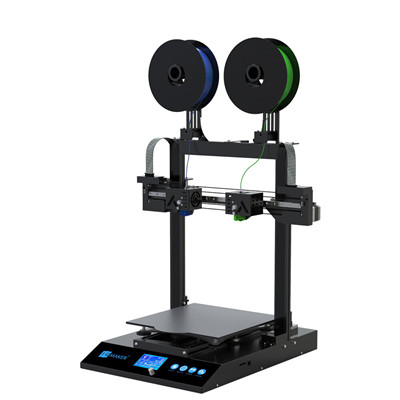

JGMaker® Artist-D 3D Printer

The 3D printer JGAurora JGMaker Artist-D was financed on Kickstarter with great success. And for good reason, it offers a very attractive data sheet.

The Artist D printer therefore has 2 independent direct drive extruders (IDEX). They are installed on a linear rail which allows them to be perfectly at the same height, contrary to the V-Slot profile where they could be at different levels depending on the tension of the eccentrics.

With the JGMaker Artist-D you can do this at the touch of a button, without the hassle of changing nozzles and torques. Thanks to a 32-bit motherboard under Open Source firmware (Marlin 2.0) with silent drivers, the JGMaker Artist-D limits noise pollution.

The Z axis is based on 2 synchronized axes, the 2 motors of which are driven by a single driver. The removable and flexible bed offers a printing volume of 310 x 310 x 350 mm.

The “cable management” is clean thanks to the secured connectors. These connectors are clipped on and therefore cannot be disconnected with the movements and vibrations of the machine. This new JGMaker 3D printer allows the resumption on power failure or in case of shortage of consumables thanks to the filament detector.

From a safety point of view, overheating detection (bed and nozzle) greatly reduces the risk of fire starting. The JGMaker Artist D is delivered as a kit which is very easy to assemble in only 2 steps.

The two heads each have their own slicer specifications so one of them can easily be used to make soluble media for example. You can also use the mirror mode to print two identical parts at the same time.
