JJRC X7P

JJRC X7P
Brand: JJRC
Category: Drones
  • Feature 1: Wheelbase: 280mm
  • Feature 2: Effective Pixels: 4K 12MP
  • Feature 3: Video Frames: 25FPS
  • Feature 4: Sensor: 1/3.2
  • Feature 5: Max. Stream: 13Mbps
  • Feature 6: Video Resolution: 1920 X 1080

JJRC X7P - Price

JJRC X7P - Specs

Product Details

  • Features
    Ultrasonic
    GPS+GLONASS Two Satellite Positioning Systems
    5G WIFI FPV
    Optical Flow Positioning
    Adjustable 4K 12MP Camera
  • Specification
    Aircraft
    Wheelbase: 280mm
    Size: 23.7 X 27.1 X 7.6cm
    Weight: 440g
    GNSS: GPS/GLONASS
    Positioning: Ultra-sonic/Optical Flow
    Max. Ascent Speed: 2m/s
    Max. Descent Speed: 1.5m/s
    Max. Flight Speed: 29km/h
    Max. Limit Height: 5000m
    Hovering Accuracy Range: Vertical +/-0.1m(Ultrasonic working range);+/-0.5m
    Horizontal:+/-0.5m(Optical flow positioning works normally);+/-1.5m
    Working Frequency: 5170-5190 Ghz or 5735-5755 Ghz

    Positioning System
    Optical Flow: Support
    Use Environment: Rich texture on the surface,Adequate lighting conditions
    (Less than 15lux,Indoor fluorescent lamp normal illumination environment)
    Speed Measurement Range: Flight Speed 1.5m/s(height 2m,Ample light)
    Height Measurement Range: 0.5-4m

    Ultra-sonic: Support
    Use Environment: Except for the surface of the water or absorbing material
    Speed Measurement Range: Flight Speed ≤3m/s
    Height Measurement Range: 0.2-4m

    Camera
    Effective Pixels: 4K 12MP
    Video Frames: 25FPS
    Sensor: 1/3.2
    Camera Adjustable Angle: -90°- 0°(Adjusted By Transmitter)
    Photo Taking Mode: Single Shot
    Max. Stream: 13Mbps
    Support File System: FAT32(Less than or equal to 64GB)
    Image Format: JPEG
    Video Format: MP4
    Photo Resolution: 4096 X 3072
    Video Resolution: 1920 X 1080

    Gimbal
    Stabilization: 2-Axis
    Tilt: -90° - 0°

    Remote Controller
    Operating Frequency: 5Ghz
    R/C Distance: About 1.2km (Free interference and no occlusion)
    EIRP: FCC:≤26dBm
    CE:≤20dBm
    SRRC:≤=20dBm
    Working Current/Voltage: 370mA@3.7V
    Transmitter Battery: Built-in 3.7V 2600mAh Lipo
    Charging Method: USB
    Using Time: About 3.5h
    Max. Power: 10W

    Battery
    Weight: 124g
    Battery Type: lipo 2S
    Capacity: 2950mAh
    Voltage: 7.6V
    Energy: 22.42Wh
    Flying Time: About 25mins
    Charging Time: About 4h
    Working temperature: 0-40 Celsius

    Charger
    Item No.: H01008
    Input: DC5V 2A
    Output: DC4.35V 1.2AX2
    Rated Power: 10W

    APP
    Name: Enjoy-fly
    Video Transmission System: 5G WiFi(802.11.ac)
    Live View Quality: 720P@15fps
    Mobile Device Bracket: Thickness:6.5-8.5mm
    The max. length: 80mm
    Required Operating Systems: IOS 9.0 or later/Android 5.0 or later
    FPV Distance: About 1km (Free interference and no occlusion)

    SD Cards: Supported
    Supported SD Cards: Micro SD Class10 And above or UHS-1 Micro SD Card
    Max. Expansion: 32GB
  • Package content
    1 X JJRC X7P RC Drone
    1 X Remote Controller
    1 X Battery
    1 X Bag
    1 X Charger
    1 X Charger Cable
    2 X Propeller
    1 X Phone Mount
    1 X L-shape Wrench
    1 X Manual

Our Rating

The overall rating is based on review by our experts

8.0 4.0 1
  • Design 8 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

JJRC X7P 4K 5G WIFI 1km FPV GPS Brushless RC Drone

Looking for a quadcopter with a long flight time? Take a closer look at the JJRC X7P, which can fly continuously for over 20 minutes. The drone has a LiPo 2s/2600mAh battery installed, which is enough for this quadcopter to fly for more than 20 minutes. Also, the drone has good brushless engines, GPS positioning system and HD camera. All this is $150. This year, many expensive quadcopters with impressive flight time have been announced, but increasing the battery is not always a good solution.

JJRC say their new JJRC X7P quadcopter can fly up to 23 minutes and this is the best result in this price segment of drones. But if you read the review on MJX Bugs 2SE, you will realize that the stated time does not always coincide with the results of real tests.

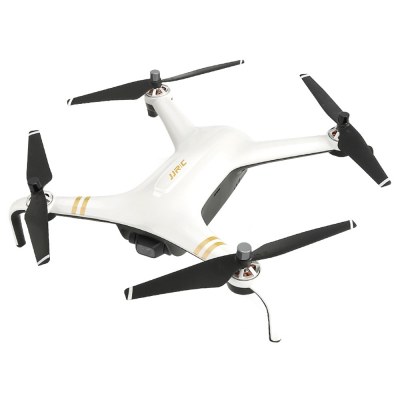

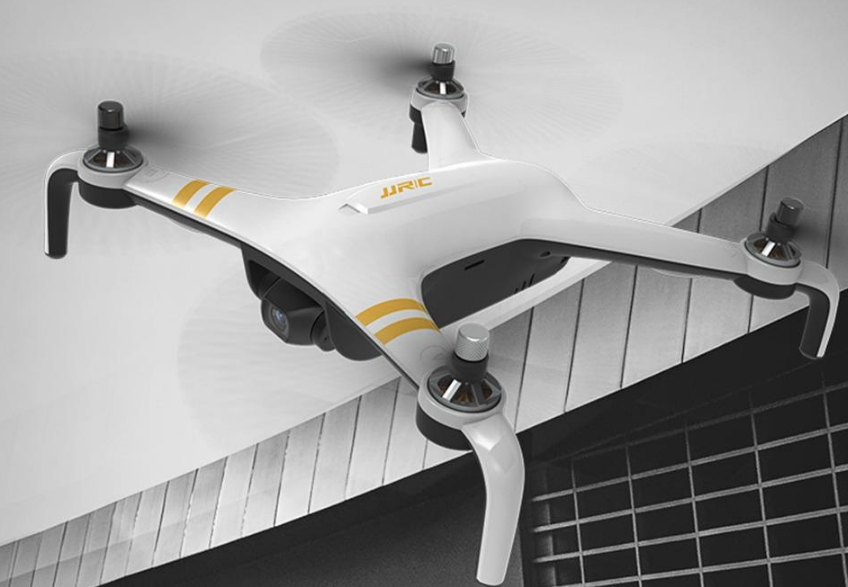

As you can see in the photo below, the landing legs are of very interesting shape. Instead of the usual arrangement under the engines, they seem to continue and smoothly turn into legs. This design approach makes it more cumbersome. The JJRC X7P is 28 centimetres away from the motor and weighs 399 grams, including the battery.

Propellers and beams are marked like DJI drones, and even look like them from above. The battery is inserted into the drone from the back of the case, and the power switch is located on the battery compartment.

If you believe the manufacturer, a fully charged LiPo battery will allow you to fly on the drone up to 23 minutes, but here the battery is charged for an entire eternity, about 3 hours. On the right side of the JJRC X7P quadcopter is a micro-USB port. I tried to connect the drone to the computer with a USB cable and the computer defined it as a COM port. This is the hope that X7P will be able to update the firmware and configure it.

During the evening flights you will be able to orientate yourself to the 4 LED lights under each beam. The front LEDs are red and the rear LEDs are green. I think they needed to change their colors.

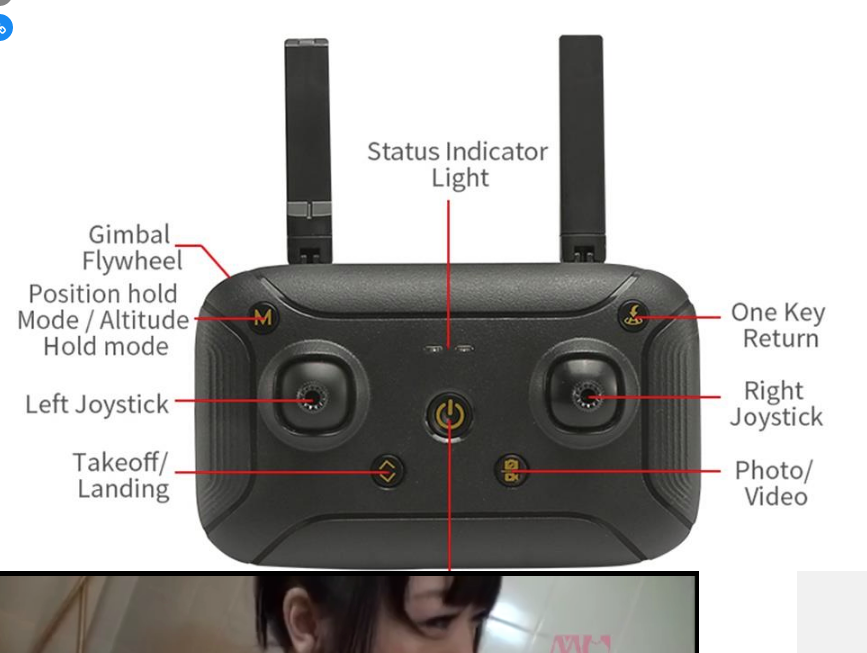

Personally, I think the remote control is bulky. For such sizes, it does not even have a screen to display the status and other telemetry data, such as altitude, flight time, GPS coordinates, etc.

To use all the features of the JJRC X7P RC drone, you need to download and install a proprietary application called “Enjoy-Fly APP”. In the general settings menu, you will need to calibrate the compass and gyro sensor. Here you can also activate the “Beginner” mode, which limits the flight distance to 200 meters and the altitude to 120 meters.

At the top of the application you will see a status bar with the actual flight mode – Altitude, Position, Track, Orbit; number of satellites and battery level. Flight time, altitude and speed are displayed at the top of the screen.

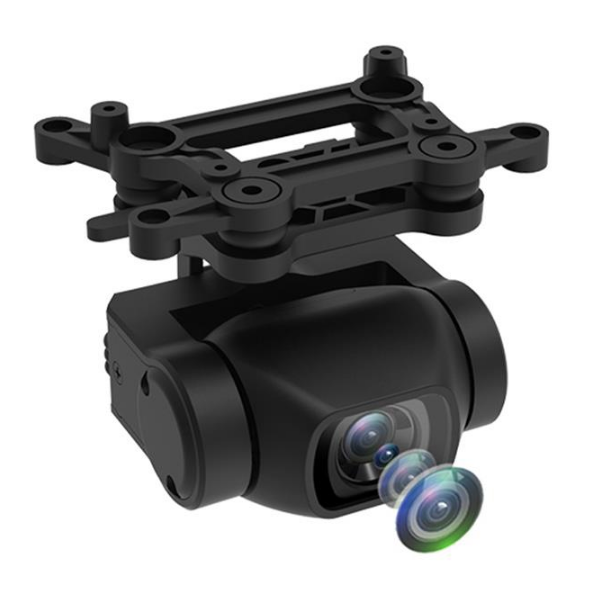

Undoubtedly, the greatest advantage of the camera is the remote tilt adjustment. Thanks to the adjustable tilt, you can capture what’s under the drone, such as a section of the roof of a house or some vertical structure, so if you don’t tilt the camera down, you can’t see anything. That’s about what tilting is for.

In order to avoid vibration jelly on the video, the camera is mounted on a hanger, which in turn hangs on anti-vibration cushions.

The quality of the video is very good, I didn’t even expect it from the drone in this price range. The video comes out with bright colors and great contrast. The only drawback of the camera is electronic video stabilization, not mechanical.

Thanks to the built-in video recorder (DVR), you can record video to an SD card. The recorder allows you to shoot photos and videos with a resolution of 1920×1080 pixels. 5 minutes of video takes about 375mb.

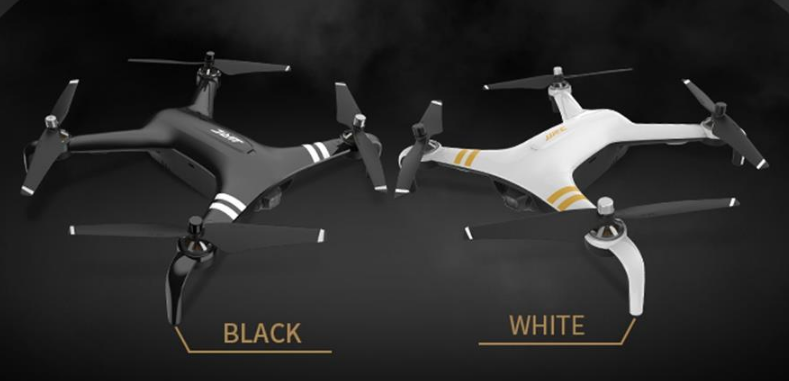

With an initial price of $ 239.99 it’s not the cheapest quadcopter with GPS on the market, but considering the flight time of the JJRC X7P, it’s unrivaled! As already written above, you can buy it in 2 colors: black and white.
