LDARC ET75

LDARC ET75
Brand: Other
Category: Drones
  • 1: Drone Wheelbase:74mm
  • 2: MPU: MPU6000
  • 3: MCU: STM32F4AA
  • 4: Support 2-4S Lipo
  • 5: Rated voltage: 4.0V~6.0V
  • 6: Input Votlage: 2-4S

LDARC ET75 - Specs

Product Details

  • Features
    Brand Name: LDARC
    Model: ET75 HD
    Item Name: 74mm F4 OSD FPV Racing Drone w/ Caddx Turtle V2 Camera
    Version: PNP ( Without Receiver) ; BNF ( With AC2000 Receiver)
    Drone Wheelbase:74mm
    Weight: 52.5g ( without battery)
  • Specification
    F4 OSD Flight Controller
    Brand Name: LDARC
    Firmware: MATEKF411
    MCU: STM32F4AA
    MPU: MPU6000
    BEC: 5V 1.5A
    Onboard Current Sensor
    Onboard ESC
    Support SBUS DSM2/X iBUS Receiver

    Onboard 12A BLheli_S ( G_H_30) 4in1 ESC
    Con. Current: 12A
    Max. Current: 20A
    Support 2-4S Lipo
    Firmware: BLheli_S

    Onboard AC2000 Receiver ( Only BNF Version has)
    Item Name: AC2000 Receiver
    Rated voltage: 4.0V~6.0V
    Support S-FHSS(8 CHs)/D16 non-EU(14 CHs)/D16 EU-LBT(14 CHs) three modes, output S.BUS signal
    Perfect fit high reliability medium and small size drone
    The channel 16 of S.BUS value is real-time RSSI, BETAFLIGHT OSD can display this RSSI value in screen.

    48CH 0/25/100/200mW VTX
    Brand Name: LDARC
    Channel: 40CH
    Power: 0/25/100/200mW Switchable
    Input Votlage: 2-4S
    Support IRC Tramp

    51mm 3-Blade Propeller
    Brand Name: LDARC
    Item Name: 51mm 3-Blade Propeller
    Color: Black
    Quantity: 10 CW & 10 CCW

    XT1102 9300KV Motor
    Brand Name: LDARC
    Model: XT1102
    Item Name: 1103 9300KV
    Shaft Diameter: 1.5mm
    Input Voltage: 2-3S
    Motor Mounting Hole Size: 6.6 ( M1.4)
    Weight: 2.8g

    Caddx Turtle V2 1080P Camera
    Image sensor: 1/2.7" CMOS sensor
    Horizontal: 800TVL
    TV system: NTSC/PAL,changeable
    Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
    Power Input: DC 4.5-20V
    FPV FOV: 155°
    Recording FOV: 170°
    Mini Illumination: 0.01lux
    Image Resolution: 2 Megapixels
    Lens: 1.8mm Turbo Eye Lens
    Working Current: 380mA@5V/160mA@12V (low consumption)
    OSD Menu: Yes (Support Voltage Display)
    Video Files: MP4
    Audio: Support
    Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
    S/N Ratio: >60dB (AGC OFF)
    Video Output: CVBS
    Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)

    Lipo Battery ( All Version Have)
    3S 11.4V 300mAh 30C Lipo Battery
  • Package content
    1x LDARC ET75 HD FPV Racing Drone
    1x Displaying Rack
    1x Battery
    4x ET75 Pillar
    1x Tool

Our Rating

The overall rating is based on review by our experts

8.0 4.0 1
  • Design 8 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

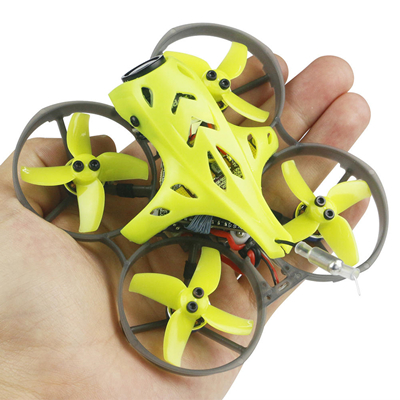

LDARC ET75 HD 74mm F4 OSD 3S FPV Racing Drone

There was the ET85 HD (see here), here is its little brother the ET75 HD! Despite its name, its diagonal measurement from motor to motor is 7.4 cm. This nano racer with streamlined propellers carries a hybrid camera, the Caddx Turtle V2, which offers real-time video feedback and 1080p sequence recording at 60 frames per second. The heart of the aircraft is a flight controller based on an F4 processor, flashed with Betaflight, with an active OSD and a microUSB connector. It also houses a 4 in 1 ESC of 12A. The propellers are 5.1 cm quadruple blades (although the data sheet indicates three-blade propellers). The motors are 1102 to 9300KV brushless motors connected with connectors, so they are easy to replace.

The camera is the Caddx Turtle V2, tiltable between 10 and 35°, connected to a 5.8 GHz video transmitter compatible with 48 channels capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW or 200 mW. The device is available without a radio receiver, or with an AC2000 receiver compatible with Futaba and FrSky D16 EU-LBT and Non-EU standards. LDARC provides a 3S 11.4V battery of 300 mAh 30C, with an XT30 plug. An LED and a buzzer complete the equipment. The price? The ET75 HD is available from $161.59 at Banggood (without shipping, without taxes). It is delivered in a transparent plastic box and, more unusually, with a presentation stand!
