LDARC ET85 HD

LDARC ET85 HD

Brand: Other
Category: Drones
  • 1: MCU: STM32F4AA
  • 2: MPU: MPU6000
  • 3: BEC: 5V 1.5A
  • 4: Onboard Current Sensor
  • 5: Onboard ESC

Our Rating

The overall rating is based on review by our experts

8.8
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

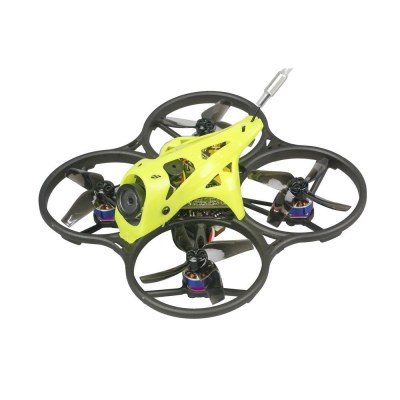

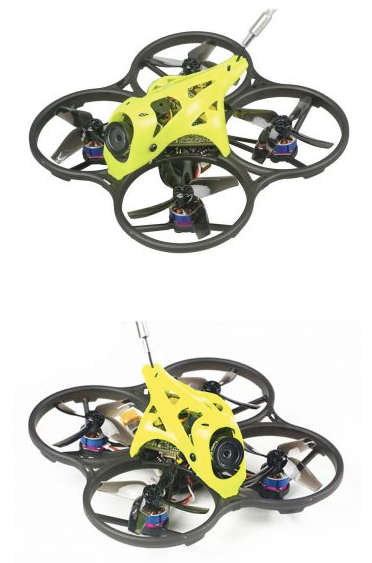

LDARC ET85 HD 87.6mm F4 4S Cinewhoop FPV Racing Drone

The manufacturer LDARC had allowed its competitors BetaFPV and Eachine to get a head start with Cinewhoop, these nano racers capable of filming in HD. It is catching up with the ET85 HD, a Tinywhoop type aircraft with its streamlined propellers. The design is not surprising: it is an aircraft based on an F4 flight controller flashed with Betaflight, which offers an active OSD. It is coupled with a 4 in 1 ESC of 12A BLheli_S which drives 1103 to 6500KV brushless motors for quadripetal propellers with a diameter of 5.1 cm.

The camera is a hybrid, the Caddx Turtle V2: tiltable between 10 and 45°, it can film in 1920 x 1080 pixels at 60 frames per second, but also provide real-time video feedback. It is therefore associated with a 5.8 GHz video transmitter compatible with 48 channels and capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW and 200 mW, with a dipole antenna. To power the ET85 HD? LDARC provides a Lipo 4S of 430 mAh 80C. The price? Count $170.99 for the version without radio receiver at Banggood (without postage, without taxes), and $185.99 for the version with an AC2000 receiver compatible with Futaba and FrSky (Non-EU and EU-LBT).

SPECS

Product Details

Features Image sensor: 1/2.7" CMOS sensor
Horizontal: 800TVL
TV system: NTSC/PAL,changeable
Video Resolution: 1080P@60fps / 1080P@30fps / 720@60fps
Power Input: DC 4.5-20V
FPV FOV: 155°
Recording FOV: 170°
Mini Illumination: 0.01lux
Image Resolution: 2 Megapixels
Lens: 1.8mm Turbo Eye Lens
Working Current: 380mA@5V/160mA@12V (low consumption)
OSD Menu: Yes (Support Voltage Display)
Video Files: MP4
Audio: Support
Electronic Shutter : PAL : 1/50-100,000 NTSC : 1/60-100,100
S/N Ratio: >60dB (AGC OFF)
Video Output: CVBS
Max Micro SD Card Supported: 8-64GB(need Class 10 or above, recommend Class 10/UHS-I/UHS-II)
Specification Brand Name: LDARC
Model: ET85 HD
Item Name: 85mm F4 OSD 4S FPV Racing Drone PNP BNF
Version: PNP ( Without Receiver) ; BNF ( With AC2000 Receiver)
Drone Wheelbase: 87.6mm
Weight: 69.9g ( without battery)
