Brand: Other
Category: 3D Printer
  • 1: Extraordinary cutting ability
  • 2: 0.08mm ultra-fine laser line
  • 3: 410 x 420 mm large engraving area
  • 4: Filter protective cover and glasses
  • 5: Both X-axis and Y-axis are equipped with precise scales


Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 9 / 10
  • Performance 9 / 10

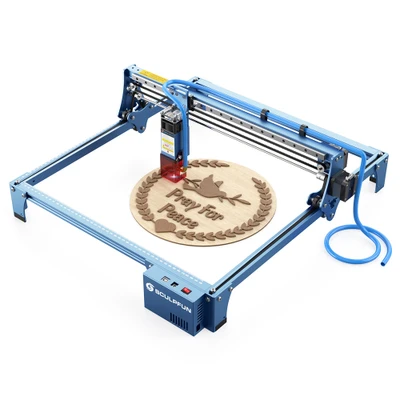

SCULPFUN S10 Laser Cutter & Engraving Machine

After the success of the S6 and S9 models, SCULPFUN has been reliably informed that the next laser engraving machine will be released, the SCULPFUN S10, which we guess will be equipped with a 10W dual-core laser module similar to the Atomstack X7 Pro, as 5W laser power is not so popular nowadays.

In terms of design, the S10 should still be frame-mounted, with a working area of 410*400mm, which is said to be the most suitable size for a consumer’s home table.

It’s great that we see the addition of an air assist kit to this new unit, which customers don’t need to buy separately, saving a certain amount of budget. However, you will still need to purchase an air pump separately.

In terms of expandability, SCULPFUN S10 supports a Y-axis extension kit of 950*400 mm, which directly increases the working area of this machine by 230%. In addition, rollers and honeycomb panels can also be purchased, with a wealth of accessories for customers to choose from.

However, it also has a regrettable aspect, that is, it still has no external touch screen, does not allow copying files to TF card, and does not support offline work.


Product Details

Features - 360° Eye Protection
- 0.08mm Ultra Fine Line
- 15000H Service Life
- Clearly Object Carving
Specification Brand: SCULPFUN
Model: S10
Engraving size: 410*400mm
Machine Electricity Power: 36W
Diode laser power: 10W
Laser wave length 455±5nm
Engraving accuracy: 0.01mm
Focusing method: fixed focus laser + sliding device
Operating software: LaserGRBL, LightBurn
Data transmission method: USB connection
Product weight: 3.42kg
Packing weight: 5.13kg
Packing size: 600x345x130mm


Post a Review Please not that each user review reflects the opinion of it's respectful author.
  1. Daniel Fernandes

    SCULPFUN S10 Price

    Thanks for the news!
    When will the SCULPFUN S10 go on sale and your price estimate?
