ATOMSTACK X7 Pro

ATOMSTACK X7 Pro
Brand: ATOMSTACK
Category: 3D Printer
  • 1: Double compression spot coupling technology
  • 2: 410x400mm Large Carving Area
  • 3: Full-metal Structure
  • 4: Laser sintering temperature up to 1200℃
  • 5: Laser optical power is 10W
  • 6: Laser Power 50W

ATOMSTACK X7 Pro - Coupon

Atomstack Coupon:  X7PRO50   Price: $549.99

ATOMSTACK X7 Pro - Price

ATOMSTACK X7 Pro - Specs

Product Details

  • Features
    - Laser optical power is 10~11W
    - Ultra-fine laser focus area reduced to 0.08*0.15mm
    - High-density laser can easily cut 10mm thick wooden boards
    - It can directly engrave mirror stainless steel metal, ceramics, glass
  • Specification
    Brand: ATOMSTACK
    Model: X7 PRO
    Carving size: 410*400mm
    Carving material: wood, bamboo, cardboard, plastic, leather, PCB board, alumina, non-reverse
    Electroplating layer and paint surface layer metal, 304 mirror stainless steel, glass, ceramics, cotton cloth, slate;
    Cutting material: cardboard, non-woven fabric, wood board, acrylic, some thin plastic board, sponge;
    Laser power: 50W
    Laser output optical power: 10-11W
    Laser wavelength: 455±5nm
    Engraving accuracy: 0.01mm
    Focusing method: fixed focus laser, free focus
    Laser protective cover: There is a protective cover on the laser to protect the eyes of the user, without the need to wear additional goggles, and at the same time prevent pets from grabbing the laser spot
    Operating software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system
    Supported file formats NC, BMP, JPG, PNG, DXF
    Data transmission method: USB connection
    Power input: 100-240V AC, 50/60HZ
    Output: 12V 5A
    Certification: CE, FCC, RoHS, FDA, PSE

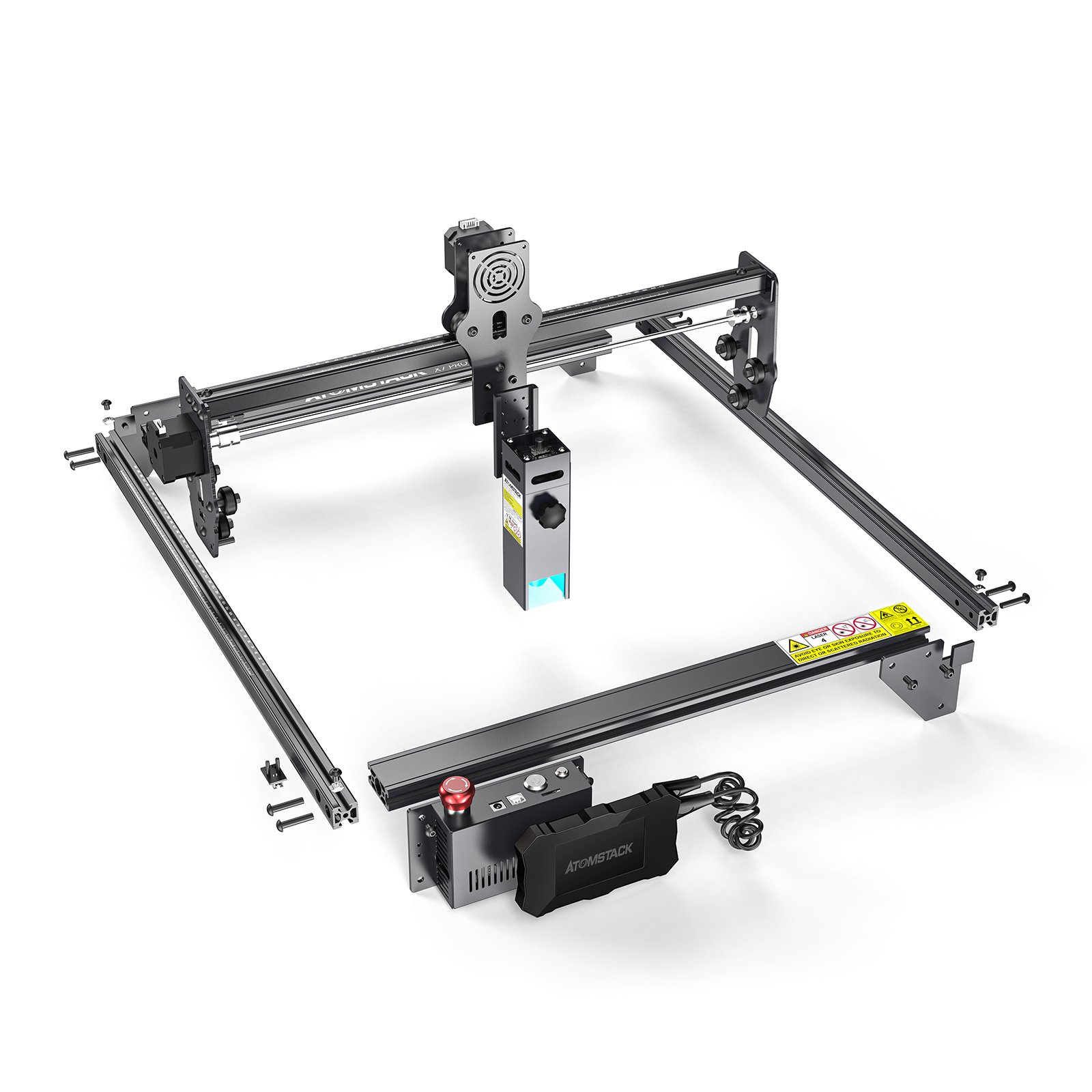

  • Package content
    1* X-axis assembly
    2* Section 57CM
    2* Section 48CM
    1* Control box
    3* Support legs
    1* Goggles
    1* Laser
    1* 24V2A power adapter
    1* Power switch line
    1* USB cable

Our Rating

The overall rating is based on review by our experts

9.5 4.8 1
  • Design 9 / 10
  • Features 10 / 10
  • Connectivity 9 / 10
  • Performance 10 / 10

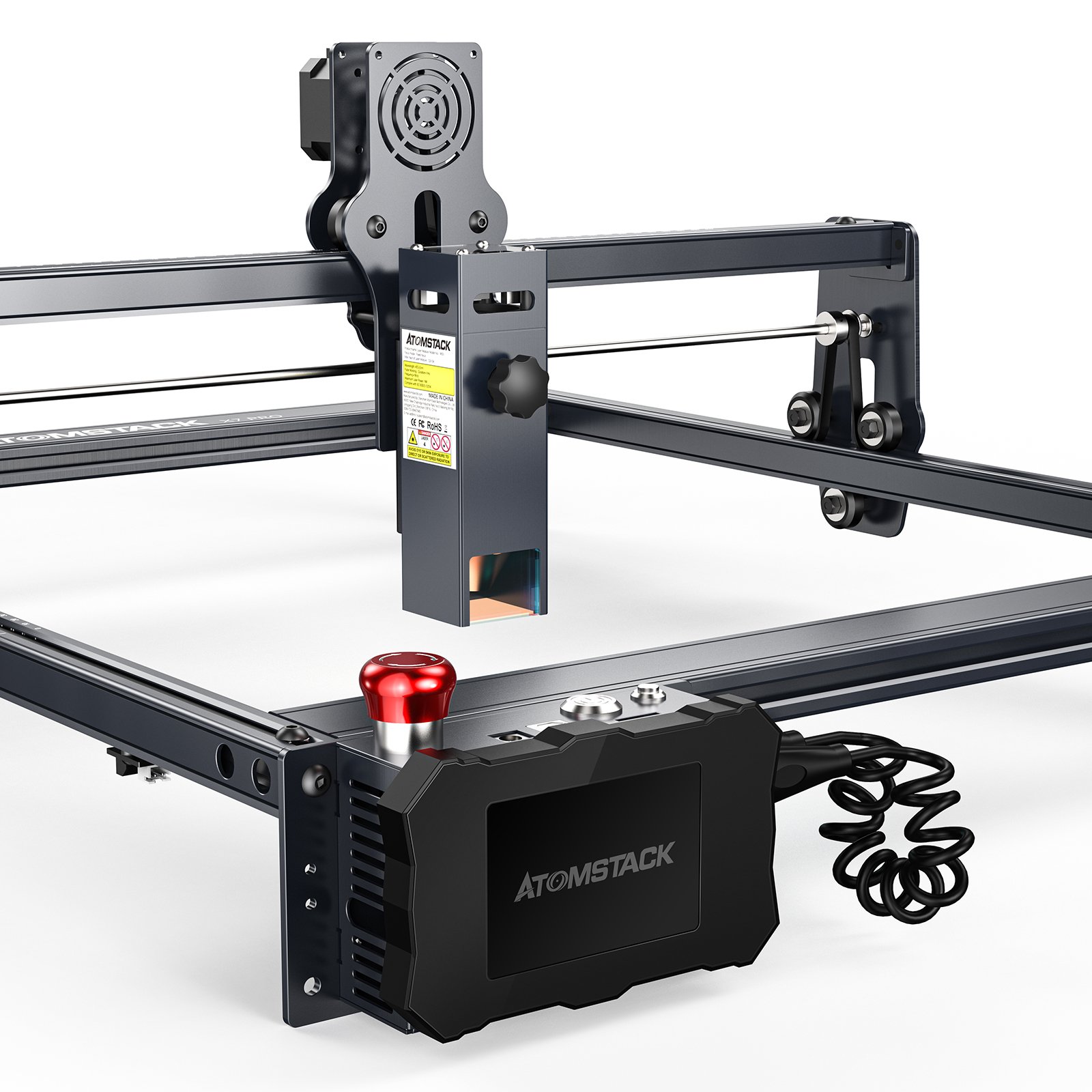

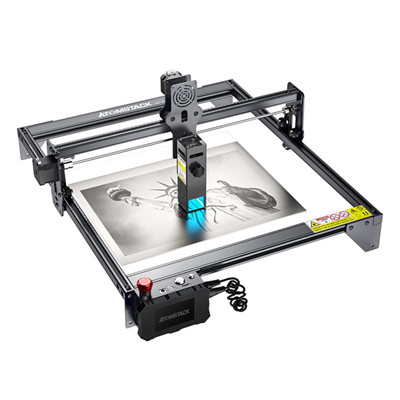

ATOMSTACK X7 Pro 50W Flagship Laser Engraving Machine

I dare to say that ATOMSTACK has released probably the best consumer grade laser engraving on the market today with the model number: X7 Pro. As you know, Atomstack previously released the M50 50W laser module, which is very popular among people in the engraving industry. This laser head has 50W electrical power output and most importantly it has 10W optical power output, which is way better than the 5.5W optical power output of the Ortur Laser Master 2 Pro.

Obviously, ATOMSTACK X7 Pro is the current flagship laser engraver, it has the most powerful laser emitter, is equipped with gyroscope, supports WIFI connection, has a separate control panel, and can be operated offline without connecting to a computer.



The advantages of this new device are too many, and I’ll reveal them to you one by one:

In terms of controls, we can see that the X7 Pro continues the 410*400 mm engraving area, the same as the previous models, the A5 Pro and the A5 M40. The difference is that the X7 Pro has an additional touch panel and the operating system is developed independently by Atomstack. It has a WIFI module inside, so it can transfer engraved graphics without linking to a computer through a network cable. Of course, it also supports TF card, you just need to copy the engraving files into it. By the way, this TF card comes with the package.

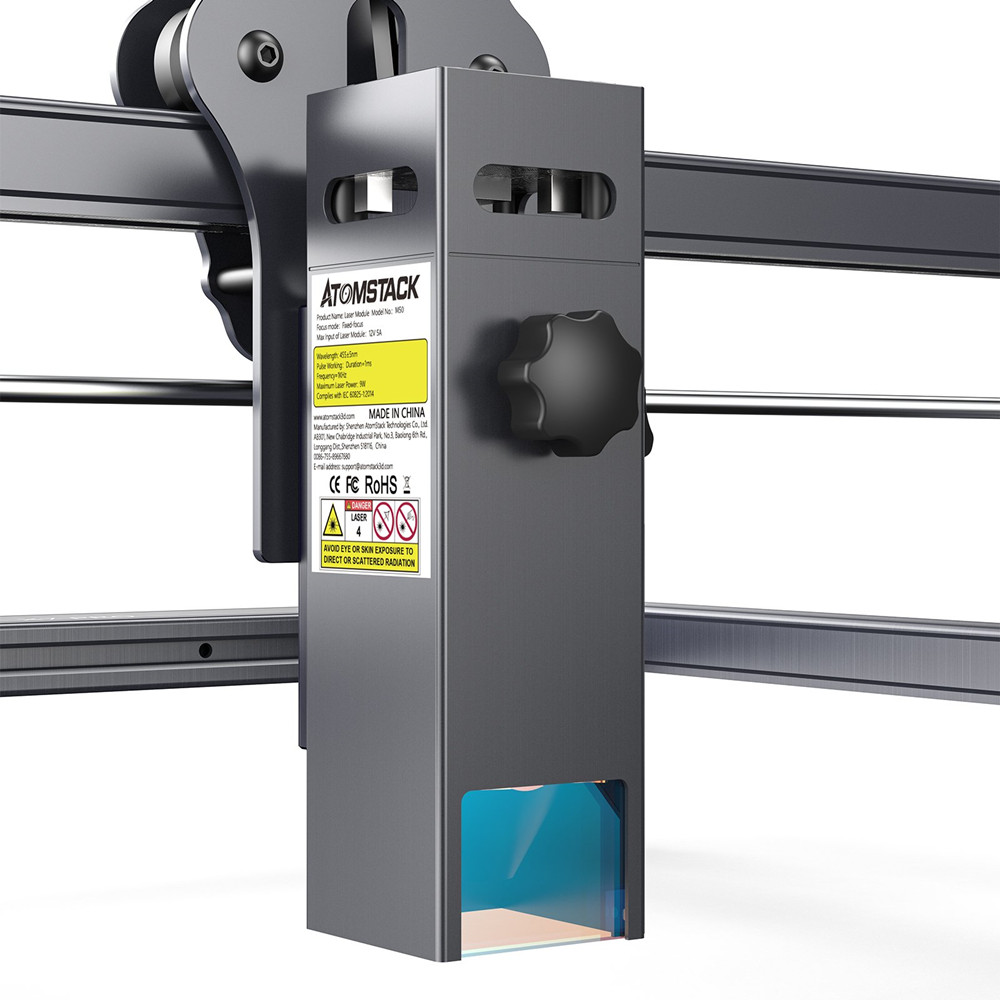

In terms of safety, the previous laser module shields were made of colored acrylic plastic, which filtered out more than 90% of UV light. The X7 Pro uses a new glass shield that filters out 97% of the UV light. The glass material has a high melting point and will not burn up due to the high temperature generated by the laser cutting, while the acrylic material is slightly inferior.

Surprisingly, this new device is equipped with a horizontal gyroscope. Therefore, if your machine has any displacement of more than 20 degrees during the work, it will immediately stop working. For example, if your family’s kitten and dog jumped on the workbench and touched the machine, it is necessary to stop working in time to avoid unnecessary damage.

We just started calling ATOMSTACK X7 Pro the flagship engraver because its hardware configuration is just too powerful. It adopts the double compression spot coupling technology, which couples two 5W laser sources into a single 10W ultra-powerful light source with a reduced focal area of 0.08*0.15mm, which can easily cut 10mm thick wood panels as well as 6-8mm thick black acrylic. Even, it can directly engrave various metal materials, ceramics, glass, the effect is much better than the 5W model. Meanwhile, the engraving speed is also improved a lot, which can reach 13000 mm/min.

Let’s summarize the advantages of the X7 Pro laser engraver:

  • It is equipped with the brand’s most powerful M50 laser module, with 50W electrical power output and 10W optical power output.
  • It has a compressed spot technology, which can easily cut 15mm wood, and can engrave more delicate patterns on metal, ceramic and glass.
  • It is equipped with gyroscope, which greatly increases the safety factor and can stop the carving machine in response to the displacement of unexpected events.
  • It has its own developed offline control touchpad, so that it can work without connecting to a computer.
  • It has an emergency stop button, a limiter, a reset switch, and controls the engraving machine through physical buttons, further increasing the safety factor.
