Category: 3D Printer
  • 1: New Eye Protection Design
  • 2: 410x400mm Large Carving Area
  • 3: Full-metal Structure
  • 4: Quick Assembly Design
  • 5: Precise Scale Lines
  • 6: Laser Power 20W

ATOMSTACK A5 Pro - Price

ATOMSTACK A5 Pro - Specs

Product Details

  • Features
    - Upgrated Ultra-fine 0.23mm*0.23mm Laser Focal Area
    - New eye protection design
    - 410x400mm Large Carving Area
    - Upgraded High-quality Laser
  • Specification
    Product Model: ATOMSTACK A5 20W
    Engraving Size: 410*400mm
    Engraving Materials: All wood, bamboo, Paper, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective plating and lacquered metal
    Cutting Materials: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board
    Laser Power: 20W
    Laser Output Optical Power: 4.5~5W
    Laser Wave Length: 455±5nm
    Engraving Accuracy: 0.01mm
    Focusing Method: fixed focus laser, no need to focus
    Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
    Input Format: NC, BMP, JPG, PNG, DXF, etc.
    Data Transmission Method: USB connection
    Input Voltage: AC100-240V, 50/60Hz
    Output Voltage: DC12V, 5A
    Equipment Net Weight: 4.0kg
    Package Weight: 5.6kg
    Equipment Size: 570*600*270 mm
    Packing Size: 618*342*129 mm
    Certification: CE / FCC / RoHS / FDA
  • Package content
    1 x X-axis assembly
    2 x Section 57CM
    2 x Section 48CM
    1 x Control box
    3 x Support legs
    1 x Goggles
    1 x Laser
    1 x 24V2A power adapter
    1 x Power cord
    1 x USB cable

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

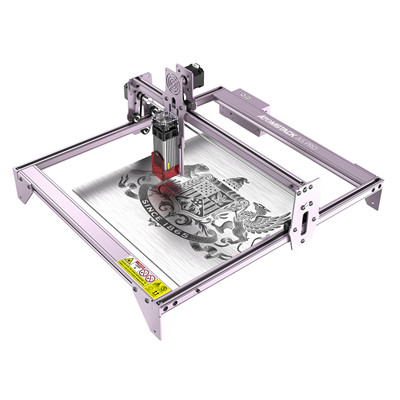

ATOMSTACK A5 Pro 40W Laser Engraving Machine

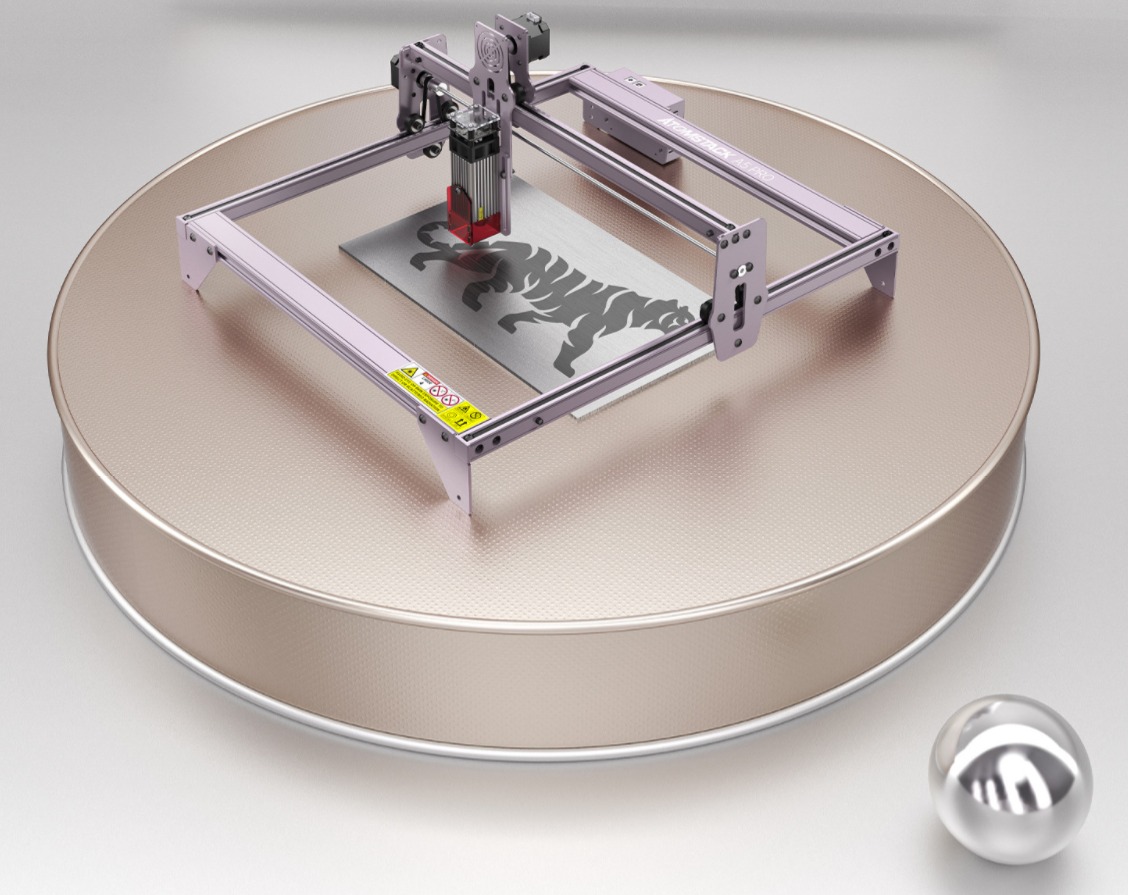

We present ATOMSTACK A5 Pro, an upgrade of A5 on all aspects of specifications and performance. It took 9 months of research and development by ATOMSTACK to finally enable a premium laser engraving experience that can cover the needs of a medium or even higher level of users at an affordable price.

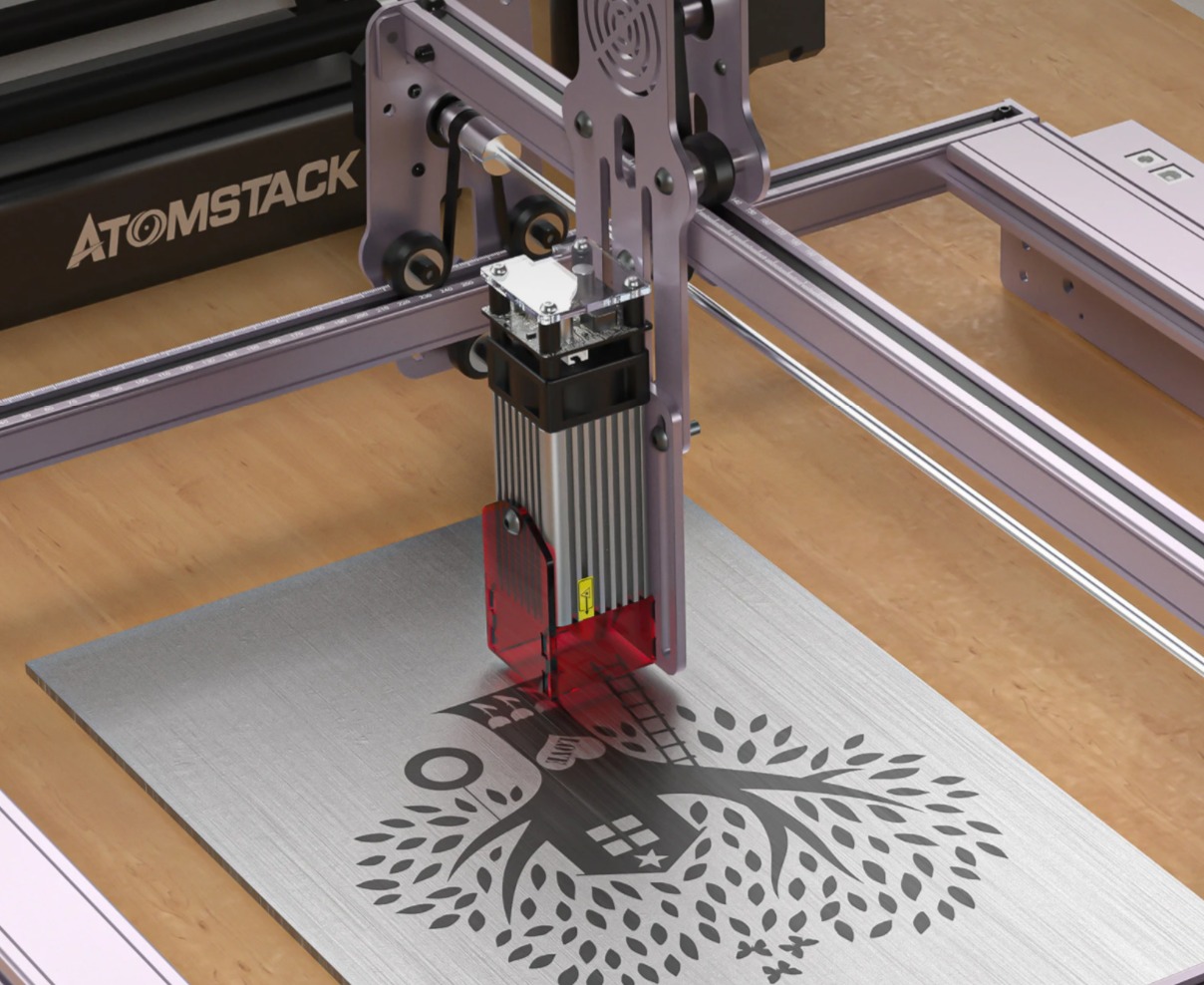

ATOMSTACK A5 Pro is equipped with 32-bit 12V MCU circuitry. With an accuracy of 0.23 x 0.23 mm, the focal point is a quarter of the size of the average focal point of other lasers. Through the use of the 12-bit precision PWM control signal, up to 1000 grayscale gradations can be achieved, providing real, photo-like detail.

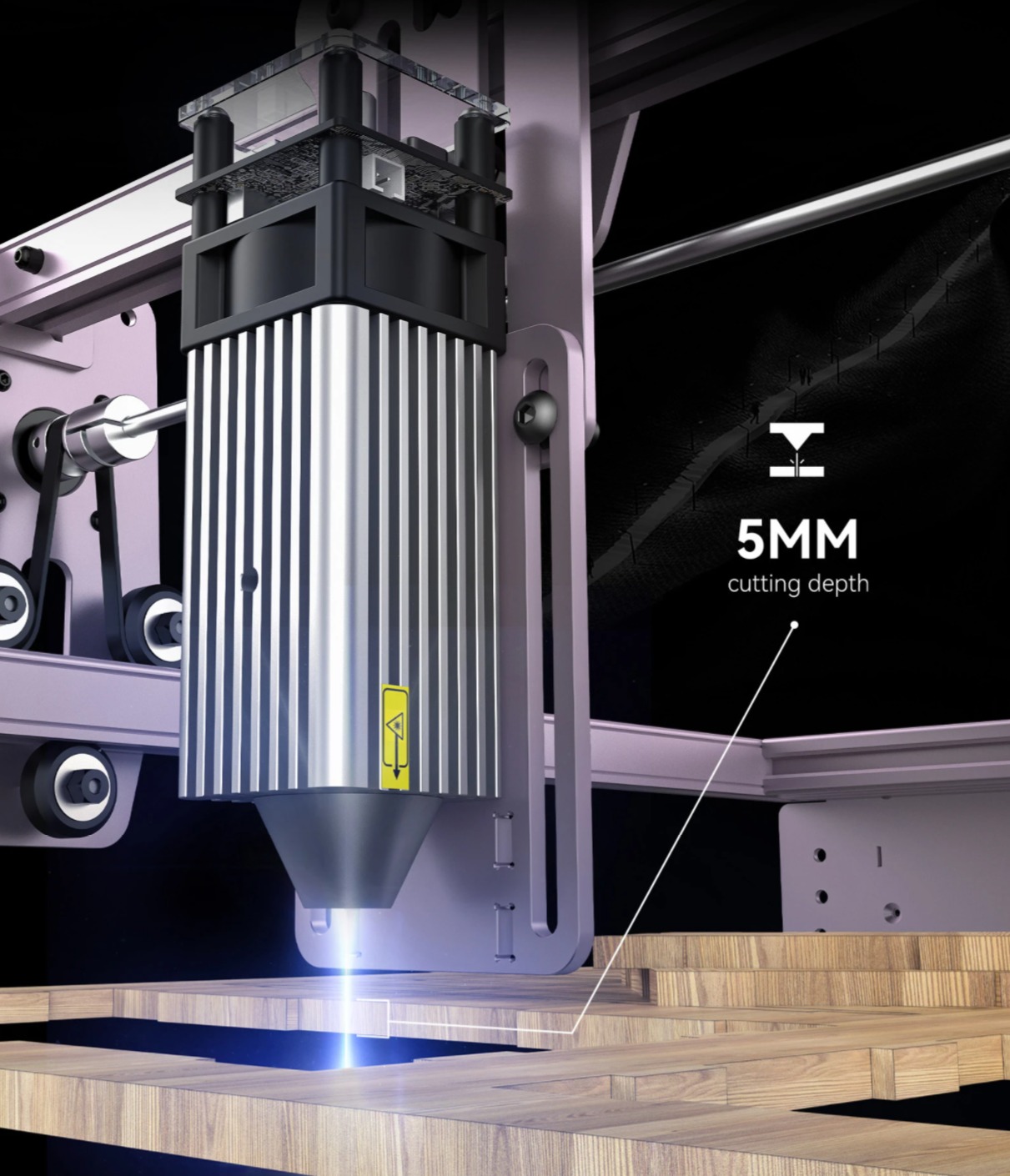

The extremely advanced laser module with second-generation high-power FAC technology offers multiple power options from 1 W to 40 W. With the same amount of power, a thinner 50mm fixed focus laser beam can cut through a thicker object, you can even go beyond the 5mm thick edge.

ATOMSTACK’s engineering team optimized the motion algorithm and upgraded it to the new firmware, increasing the maximum speed from 4,000 mm/min to 10,000 mm/min. In addition, compared to the traditional USB-to-serial port, the MCU’s native USB CDC interface supports up to two times higher transmission speed, greatly reducing the delay caused by command transmission and thus reducing engraving time. Therefore, the engraving speed of ATOMSTACK A5 Pro is twice that of A5, and three times the market average. In addition, ATOMSTACK laser engravers have been fully tested with Laser, the world’s most popular and easy-to-use free and open source laser control software.

The 12V-powered electrical system built into the motherboard supports a powerful laser module and multiple additional components. As tested in laboratories, the reinforced cable can withstand more than 5,000,000 bends, which provide longer life to the engraver. Buckle in the wire connection, high-quality flexible cables and wire protection chains ensure uninterrupted 24-hour operation and consistent engraving results. In addition, the structure made of metal gives the ATOMSTACK A5 Pro excellent solidity.

More features to ensure safety are built into ATOMSTACK A5 Pro so users can engrave without worry. When the machine is moved or tilted, or the computer stops the engraving process: the motors stop moving, the laser will automatically stop to avoid possible damage to the machine and the user. In case of flames, the alarm will beep and flash. Also, an emergency stop button has been added to make sure it can be stopped manually when needed.
