Category: 3D Printer
  • 1: New Eye Protection Design
  • 2: 410x400mm Large Carving Area
  • 3: Full-metal Structure
  • 4: Quick Assembly Design
  • 5: Precise Scale Lines
  • 6: Laser Power 20W


Amazon Coupon:  V7EX6K8A  Price: $209.29



Product Details

  • Features
    - New Eye Protection Design
    - 410x400mm Large Carving Area
    - Full-metal Structure
    - Quick Assembly Design
    - Precise Scale Lines
  • Specification
    Product Model: ATOMSTACK A5 20W
    Engraving Size: 410*400mm
    Engraving Materials: All wood, bamboo, Paper, Plastic, Leather, PCB Board, Aluminum Oxide, Non-reflective plating and lacquered metal
    Cutting Materials: Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board
    Laser Power: 20W
    Laser Output Optical Power: 4.5~5W
    Laser Wave Length: 455±5nm
    Engraving Accuracy: 0.01mm
    Focusing Method: fixed focus laser, no need to focus
    Operating Software: LaserGRBL, LightBurn, support Win XP / Win 7 / Win 8 / XP / Win 10 system.
    Input Format: NC, BMP, JPG, PNG, DXF, etc.
    Data Transmission Method: USB connection
    Input Voltage: AC100-240V, 50/60Hz
    Output Voltage: DC12V, 5A
    Equipment Net Weight: 4.0kg
    Package Weight: 5.6kg
    Equipment Size: 570*600*270 mm
    Packing Size: 618*342*129 mm
    Certification: CE / FCC / RoHS / FDA
  • Package content
    1x Engraving Machine
    1x Laser Module
    1x Goggles
    1x 24V2A Power Adapter
    1x Power Cord
    1x USB Cable
    1x Focal Length Film
    1x M5 Wrench
    10x Rolled Belts
    3x Small Wood Chip
    1x M3 Wrench
    1x Marker
    1x Brush
    3x Small Acrylic

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

New ATOMSTACK A5 20W Laser Engraving Machine CNC Router Desktop DIY Laser Engraver

The ATOMSTACK A5 is an new extra large engraving machine with a powerful 20W laser. Can be used on wood, plastic, paper, bamboo, leather, metal, etc. to engrave. Its big advantage is that it can engrave on objects measuring 410 x 400 mm and gives more useful extras. All this is currently for $199.99.

Recently, I can be fascinated by CNC, such as CNC lathes, CNC milling machines, 3/4/5-axis machining equipment, etc., wonderful tools that can turn pieces of steel into wonderful crafts.

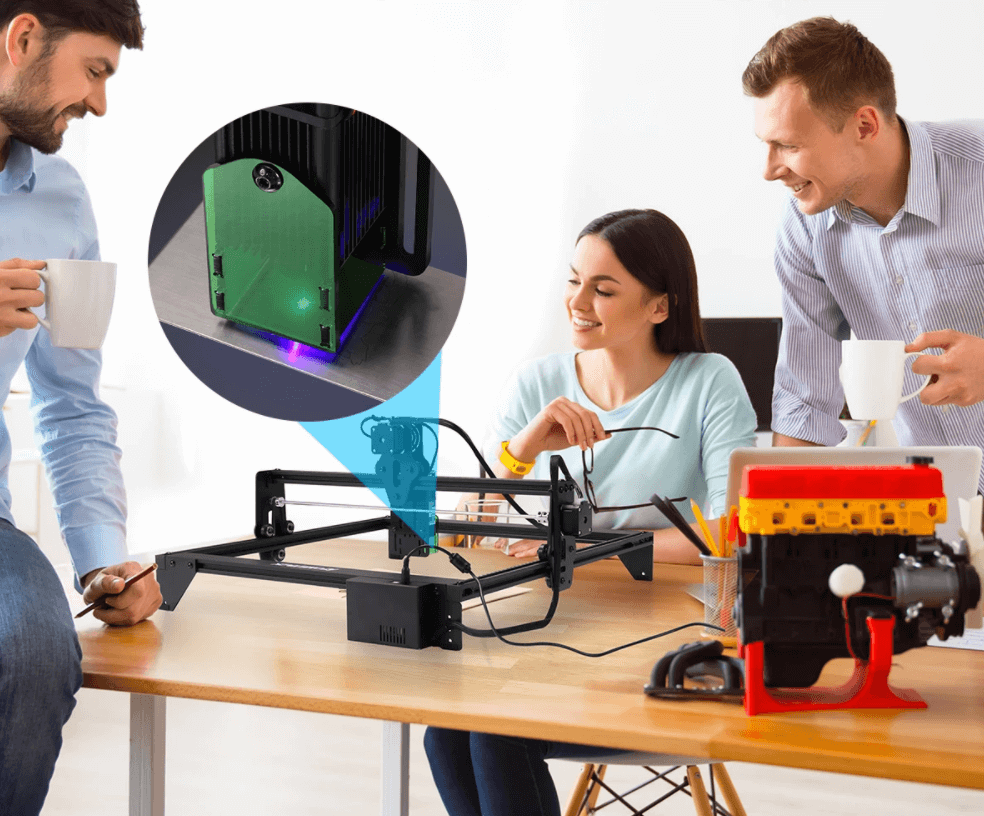

Assembled (because it comes in pieces) it looks like a large metal frame. The object to be engraved is placed in the frame. The advantage of this design is that it can even be applied directly to the surface to be engraved.

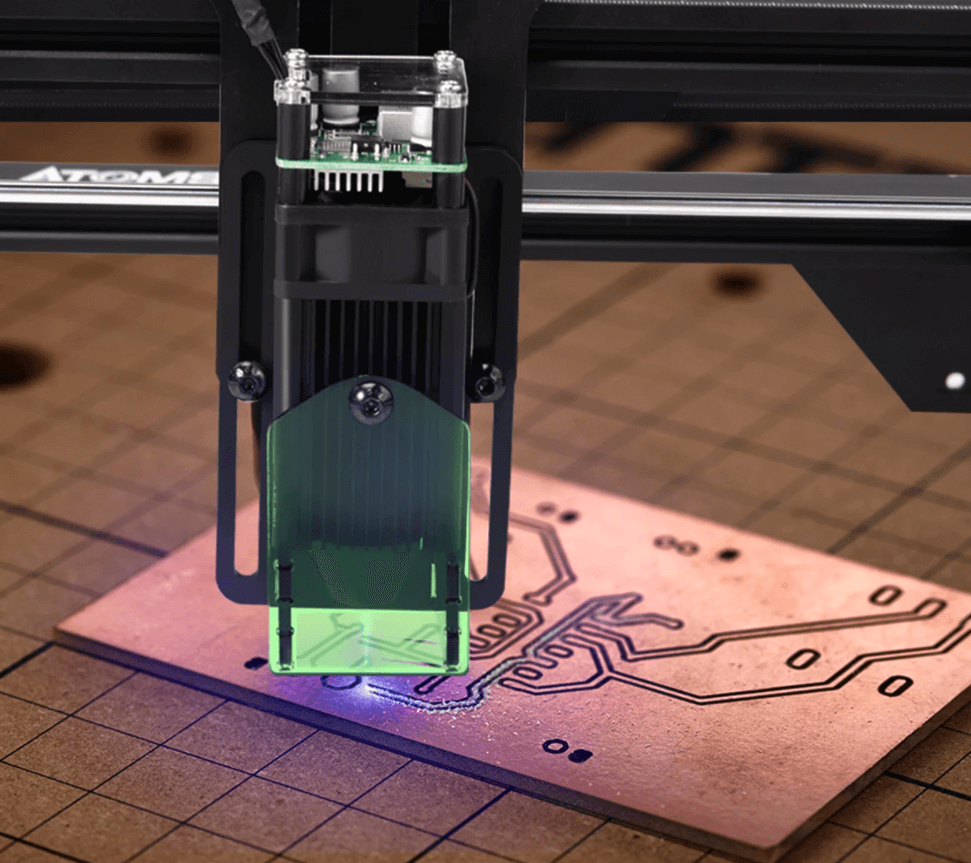

Engraving is done with a 20W laser with an accuracy of 0.01mm (output power: 5W). Standard software such as LaserGRBL, LightBurn and standard file formats (NC, BMP, JPG, PNG, DXF) can also be used. You got a couple of useful extras, one of which is a laser blocker box that makes it safer to use. According to the manufacturer, the power of the laser they use is reduced by only 0.1W after 1,200 hours of engraving.

A positive feature is that the laser is ready to use out-of-the-box. How well the ATOMSTACK A5 finally works can only be determined after a test. With the included materials you can start engraving immediately. If you want to start engraving by laser, the ATOMSTACK A5 set is certainly worth a recommendation.
