Atomstack X20 Pro

Atomstack X20 Pro

Category: 3D Printer
  • 1: The World's First Quad-core Diode Laser
  • 2: 450x450mm Large Carving Area
  • 3: 12mm Solid wood Cutting in One-PASS
  • 4: Built-in Powerful air assist kit
  • 5: Laser optical power is 20W



Atomstack Coupon:  X20PRO

Our Rating

The overall rating is based on review by our experts

  • Design 10 / 10
  • Features 10 / 10
  • Connectivity 10 / 10
  • Performance 10 / 10

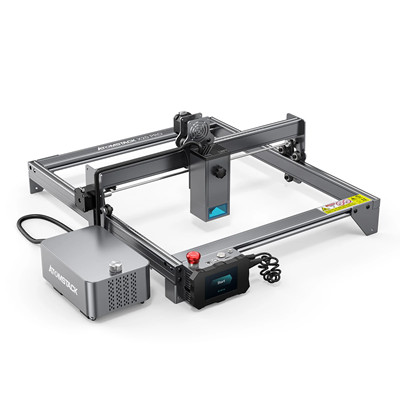

Atomstack X20 Pro 130W Quad-Laser Engraving and Cutting Machine Built-in Air Assist System

I couldn’t hide my excitement until now as I saw the most powerful diode laser of the year come out in a whole product. Just this week, Atomstack, the famous laser engraver manufacturer, released a device called X20 Pro on its official website. The device claims to be equipped with a quad-core laser module, which consists of four 6W laser beams coupled into a single 20W super laser beam. The Quad-core laser represents the most advanced technology in the diode laser market today, and the Atomstack X20 Pro deserves to be the world’s first 20W quad-core laser cutting and engraving machine.

Last year’s star product, the X7 Pro, was the first 10W dual-core laser engraver to cause a stir. This year, Atomstack continues to push the envelope on laser modules, and after a year of hard work, their R&D team has finally delivered a satisfying product for our customers.

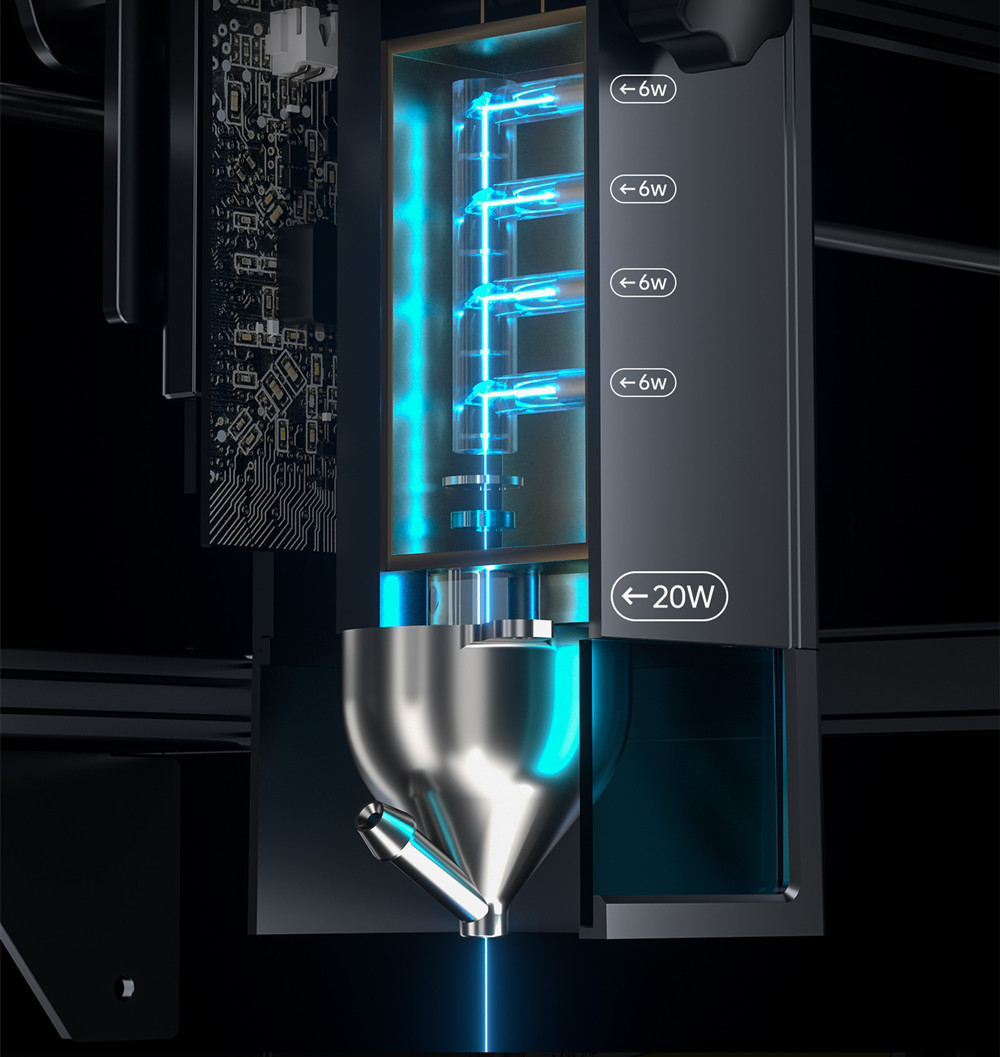

Four 6W laser beams coupled into a single 20W super laser beam
Four 6W laser beams coupled into a single 20W super laser beam

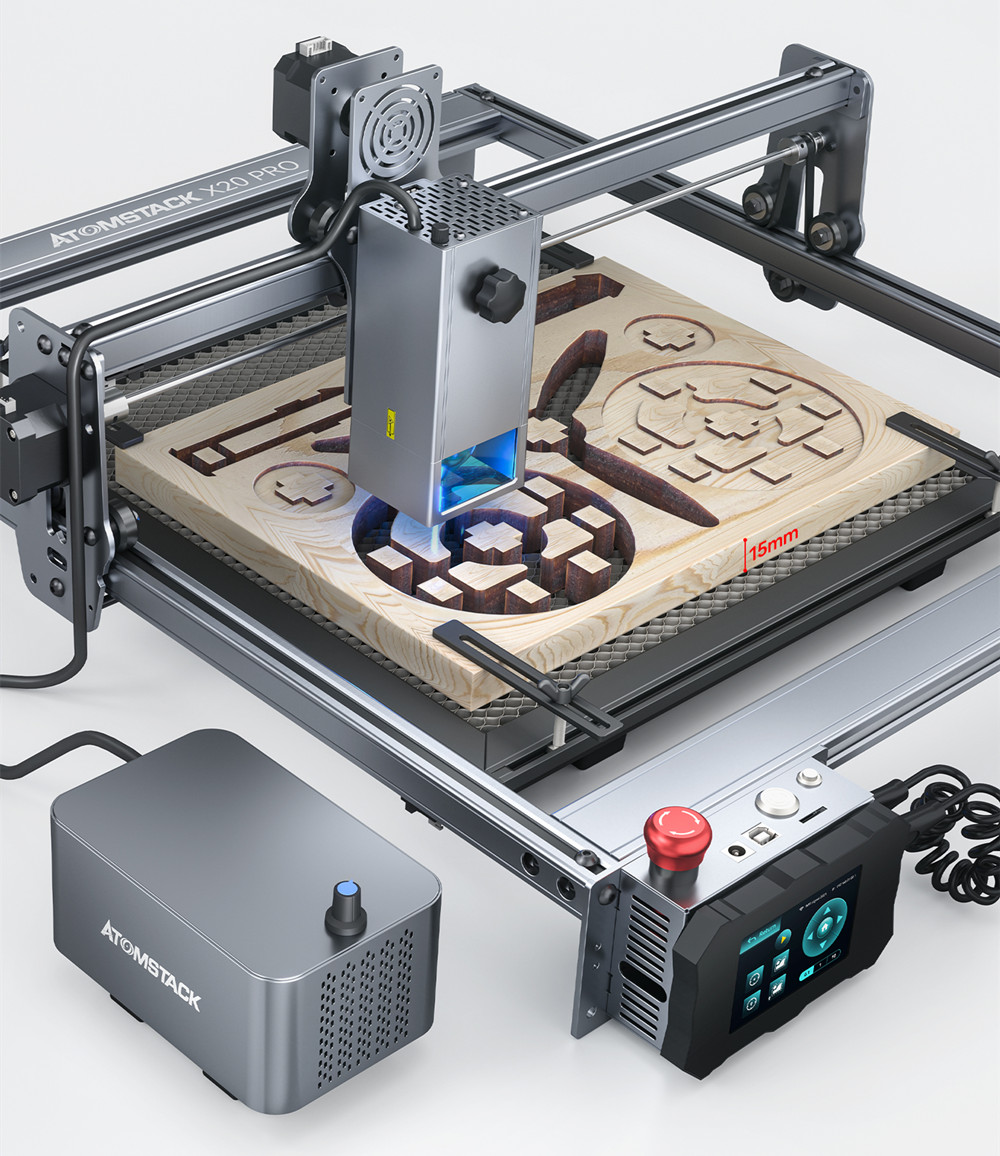

We learned that the X20 Pro laser cutter has a machine power of 130W, and the most important laser power output is 20W. Atomstack Labs gives data that it can cut 12mm of solid wood in one pass, 8mm of acrylic in one pass, and even 0.5mm of thin metal paper.

Since it is the main cutting function, Atomstack’s R&D engineers seem to be sincere. It has a built-in air assist system, which greatly enhances the experience of using it, making the cutting surface clean and reducing the burn marks. On the other hand, if customers buy this device, they do not need to pay extra cost for air assist.

Built-in self-developed air assist kit
Built-in self-developed air assist kit

In terms of working area, the X20 Pro is upgraded to 400*400 mm, and also supports offline work by copying files to a TF card and working through the touch screen. In addition, Atomstack’s own APP will also be applied to this new machine for the first time.

Control the machine through the APP
Control the machine through the APP

In short, this is definitely the most heavyweight diode laser device this year, representing the most advanced technology, you deserve to have it!


Product Details

Features - 12mm Solid wood Cutting in One-PASS
- 8mm Acrylic Cutting in One-PASS
- It can even cut 0.5mm sheet metal
- Built-in Powerful air assist kit
Specification Brand: Atomstack
Model: X20 Pro
Recommend working area: 400*400mm
Machine Power: 130W
Laser Output Power: 20W
Wave Length: 445 ± 5nm
Engraving Accuracy: 0.01mm
