Atomstack M100

Atomstack M100

Category: 3D Printer
  • 1: The World's First Quad-core 20W Diode Laser
  • 2: 12mm Solid wood Cutting in One-PASS
  • 3: 8mm Acrylic Cutting in One-PASS
  • 4: It can even cut 0.05mm thin sheet metal
  • 5: Built-in Powerful air assist kit


Our Rating

The overall rating is based on review by our experts

  • Design 10 / 10
  • Features 10 / 10
  • Connectivity 8 / 10
  • Performance 10 / 10

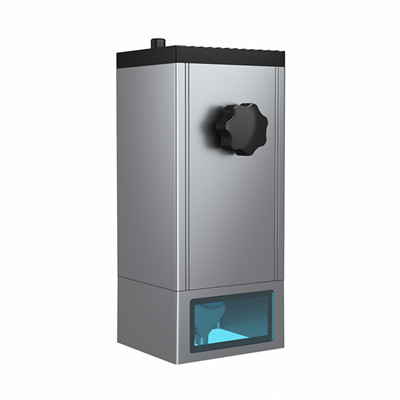

ATOMSTACK M100 130W Quad Laser Module With Air Assist System

The most popular laser engraver on the market today is the Atomstack X20 Pro, with its superb quad-core laser output and 20W of laser power that makes it invincible.

In fact, many customers had already purchased the older Atomstack model and would have purchased a full X20 Pro again, which would have added to the cost. Therefore, the company has introduced a separate 20W laser module, the M100, to fit older models. The new flagship module will be available for all frame-mounted laser engravers, such as the X7 series, A10 series, S10 series and A5 series.

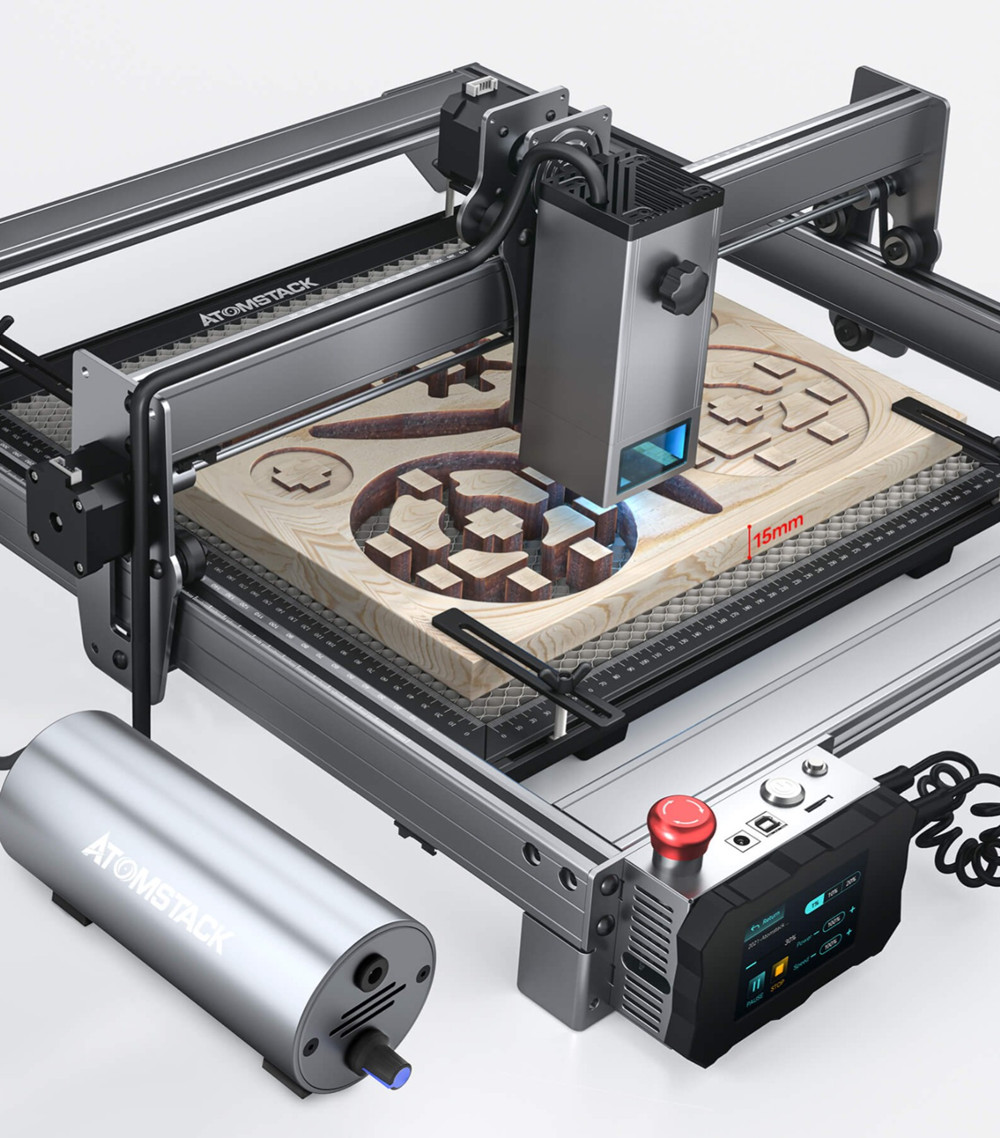

Back to the point, why is the Atomstack M100 called the most powerful laser module for diode blue lasers today? It can cut 12mm linden wood board at a time, 8 mm acrylic at a time, and even 0.05mm metallic paper.

If you are a long time user then I think it is necessary to upgrade your device with one of these laser modules because it will not let you down. Many X20 Pro users have given positive feedback that it is the most powerful diode laser available.


Product Details

Features 1. Equipped with air-assisted system, which is extremely helpful for cutting and engraving.
2. It works on all Atomstack frame-mounted models, just replace your old laser module.
3. Made of aluminum, strong and durable.
4. The laser head is equipped with a goggle piece that protects the user's eyes while preventing pets from grabbing the laser dot.
5. Upgraded high quality fixed-focus laser, no need to focus.
6. Aviation aluminum TTL driver board with cooling fan can ensure continuous long time work.
7. Engraving speed is 200% higher than other 10W lasers.
8. The laser sintering temperature is 2400 degrees, the effect of engraving metal is better.
9. The wind-collecting hood can clean the smoke and dust to protect the lens to avoid laser energy attenuation.
Specification Brand: Atomstack
Model: M100
Machine Power: 130W
Laser Power: 20W
Product Material: Aluminum 6061 Anode
Housing Size: 140*65*60mm
Circuit Board Size: 44*52mm
Circuit Board: V/PWM Modulation Board
Wire Rod: 22# 2P2.54 Terminal Reverse Wire 80mm
Optical Lens: φ6/glass
Fan: 24V
Laser Beam Mode: Spot
Working Mode: Pulse Work
Lightspot Size: 0.08*0.1mm
Working Time: 10000H
Working Temperature: 0℃~70℃
Storage Temperature: -40℃~85℃
Sintering Temperature: 2000~2400℃
Product Net Weight: 715g
