Ortur Laser Master 2 Pro

Ortur Laser Master 2 Pro

Brand: Ortur
Category: 3D Printer
  • 1: Firmware: OLF-V1.5 Firmware
  • 2: Motors: NEMA 17 Stepper Motors
  • 3: Engraving Area: 400mm*400mm
  • 4: Focus: Fixed Focus
  • 5: Engraving Speed: 0-10,000MM/Min

PRICE

Our Rating

The overall rating is based on review by our experts

8.8
  • Design 9 / 10
  • Features 9 / 10
  • Connectivity 9 / 10
  • Performance 8 / 10

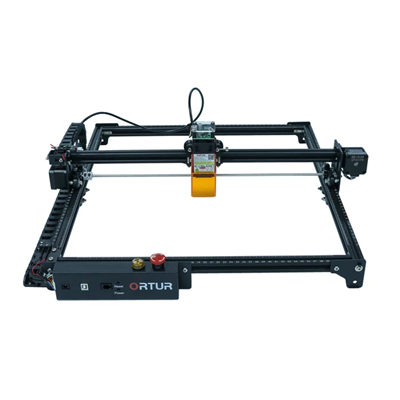

ORTUR Laser Master 2 Pro Laser Engraving Machine

The Ortur Laser Master 2 Pro is a new laser engraver, considered one of the best options on the market today. It is a model that presents a great value for money and is now available at a spectacular price on a temporary basis. This engraver is one of the most complete in this market segment.

ORTUR’s Motto. “Imagine It , Design It, Make it!”

Ortur is a brand that has made a name for itself in the 3D Printer world with its products. This laser engraver is one of their most recent and complete products so far.

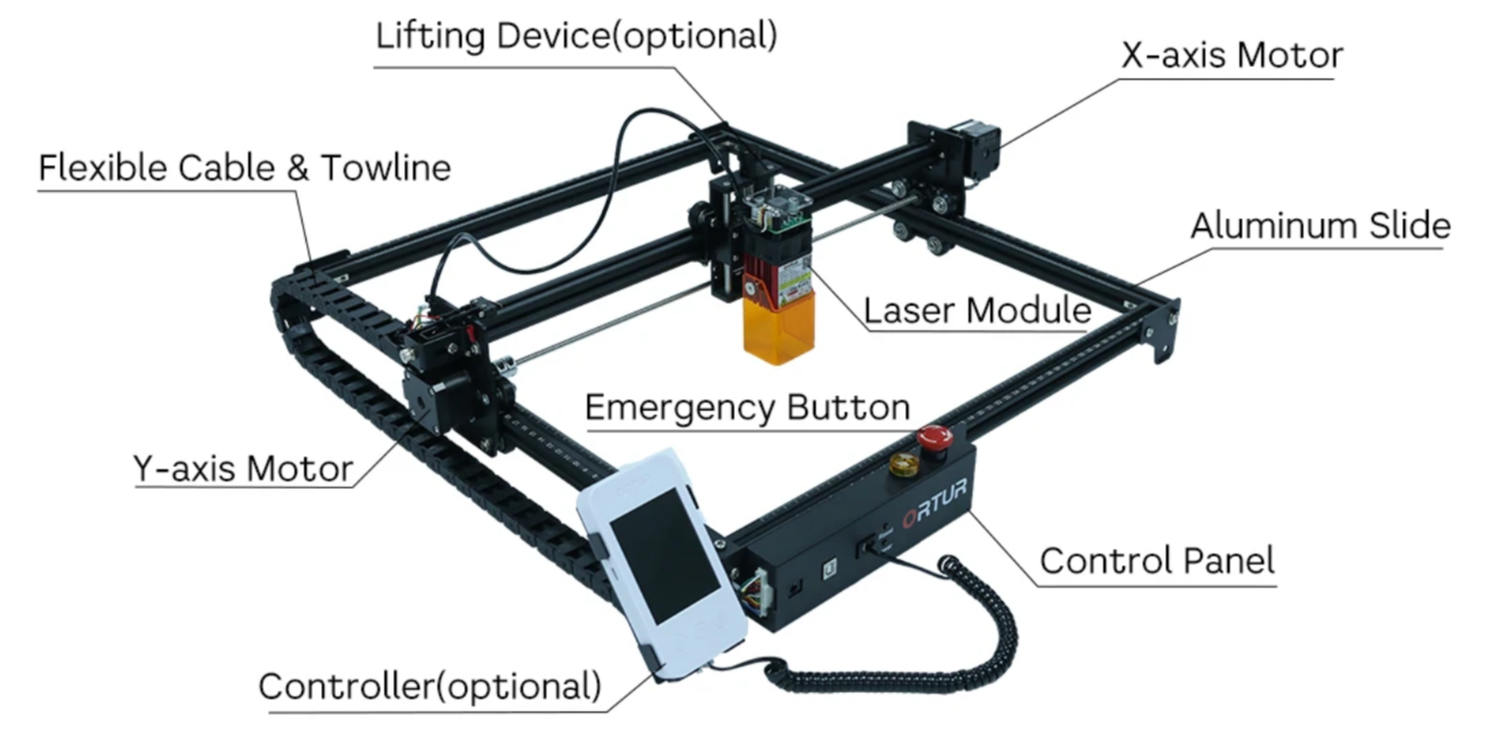

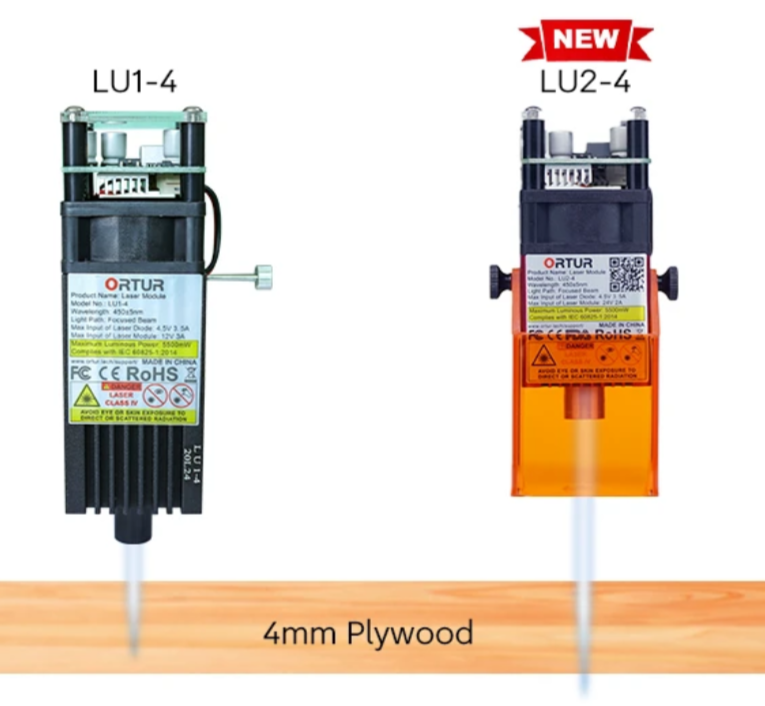

When you have assembled this Ortur Laser Master 2 Pro you have 4 aluminum profiles and two motors that form its frame. The assembly process is also very simple, it takes only about 20 minutes according to the brand itself. When you have it ready, you have 3 laser modules to choose the power you want 7W, 15W, 20W. This allows a good use, because it adjusts to each user.

This is a model of enormous precision, which will allow you to obtain a small size and very accurate recording, so even professionals will be able to make use of it at all times. Its ease of use means that both professionals and anyone at home who wants to take their first steps will be able to make use of it. The precision is adjustable, with various options, to carry out the projects you want.

The Ortur Laser Master 2 Pro has support for a huge selection of cutting and carving accessories, so you can make beautiful creations every time. This large selection is something that will allow you to make the best use of it.

Show Case
Show Case

Master 2 Pro VS. Master 2 Specification

Laser Master 2 Pro Laser Master 2
Motherboard OLM-MAXUP-V10 Motherboard, with 32Bits MCU OLM-MAX-V10 Motherboard, with 32Bits MCU
Firmware OLF-V1.5 Firmware V1.40 Series Firmware
Frame Materials Aluminum + Powder Coated Steel Aluminum + Arylic
Motors NEMA 17 Stepper Motors NEMA 17 Stepper Motors
Mechanical Precision Y:12.5um,X:12.5um Y:12.5um,X:12.5um
Engraving Area 400mm*400mm 400mm*430mm
Wave Length 445±5nm 445±5nm
Focus Fixed Focus Fixed Focus
Default Focal Length 50mm 50mm
Control Mode PWM PWM
Power Rate S0-S1,000 S0-S1,000
Engraving Speed 0-10,000MM/Min 0-3,000MM/Min
Baud Rate 115200 – 921600 (Default: 115200) 115200 – 921600 (Default: 115200)
Input Voltage 110V-220V (Compatible) 110V-220V (Compatible)
Power Adapter Output 24V/2A 12V/3A
Operating Temp -20℃-50℃ -20℃-50℃



Installation Video:

– Early birds discount! (June 1, 2021, 8:00 am, UTC-July 1, 2021, 8:00 am, UTC)

If you want to buy this Ortur Laser Master 2 Pro, now is the right time. Temporarily you can buy it on their website at a price of only $389. This discount is possible by using the discount code: ORTURPRO on the Ortur.net when you go to buy it.

Free birds gifts! (150 units YRR (67.99$) for free! )

  • One YRR for free to the first 5 orders every day(the campaign will last 30 days!)
  • Ortur.net will announce the winner list on the shop homepage everyday(the day after the order made)

SPECS

Product Details

Features 1. Active Position Protection
2. Exposure Duration Detection and Limitation
3. Laser Beam Safety Guard
4. Flame Detector
5. Emergency Stop Button
Specification Motherboard: OLM-MAXUP-V10 Motherboard with 32Bits MCU
Firmware: OLF-V1.5 Firmware
Ortur Control Box (Offline Controller)
Adjustable Z-axis Lifting Device
Motors: NEMA 17 Stepper Motors
Frame Materials: Aluminum + Powder Coated Steel
Engraving Area: 400mm*400mm
Wave Length: 445±5nm
Focus: Fixed Focus
Default Focal Length: 50mm
Control Mode: PWM
Power Rate: S0-S1,000
Engraving Speed: 0-10,000MM/Min
Baud Rate: 115200 - 921600 (Default: 115200)
Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn)
Control Softwares: LaserGRBL (free), LightBurn (Paid Software)
Input Format: JPG, JPEG, PNG, BMP, SVG, etc.
Available Materials of Engraving: Wood Board, Paperboard, Black Acrylic, Leather, Food, Stainless Steel, Power Coated Metal, etc.
Available Materials of Cutting: Wood Board, Paperboard, Black Acrylic, Leather, Felt Cloth, Dark Color Plastic Sheet (Melt), etc.
Input Voltage: 110V-220V (Compatible)
Power Adapter Output: 24V/2A
Operating Temp: -20℃-50℃
