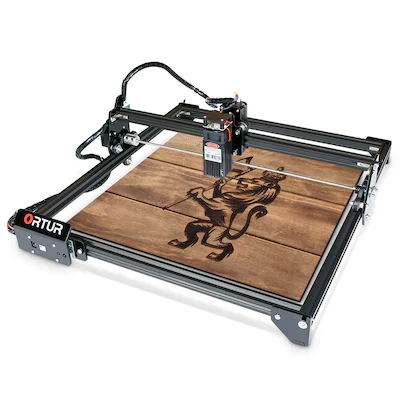

ORTUR Laser Master 2

ORTUR Laser Master 2
Brand: Ortur
Category: 3D Printer
  • 1: Specialized Motherboard with STM32 MCU
  • 2: The Most Advanced 32Bits Laser Engraver Firmware
  • 3: Active Position Protection
  • 4: Laser Beam Safety Guard
  • 5: Exposure Duration Detection and Limitation
  • 6: 400 x 430 mm large engraving area

ORTUR Laser Master 2 - Video

ORTUR Laser Master 2 - Coupon

Ortur Coupon: ORTURPRO  Price: $389.00  End Time: 2021-07-01

ORTUR Laser Master 2 - Price

ORTUR Laser Master 2 - Specs

Product Details

  • Features
    Good Safety Performance
    LaserGRBL (LightBurn) Control Software for Fast Installation
  • Specification
    Motherboard: 32 bits motherboard with STM32 MCU
    Firmware: Ortur Laser Master Firmware
    OS of Upper Computer: Windows ( Working with LaserGRBL ), MAC OS and Linux ( Working with LightBurn )
    Power of Laser Engraver: 36W, 12V 3A
    Electrical Power of Laser Module: 7W, 15W, 20W
    Wave Length: 445 ± 5nm
    Variable Focus: Yes
    Default Focal Length: 55MM for 15W & 20W Laser Module; 58MM for 7W Laser Module
    Input Format: NC, BMP, JPG, PNG, DXF, etc.
    Carving Area: X: 400MM x Y: 430MM
    Carving Speed: 3000MM / Min and less
    Image size: No Limit
  • Package content
    1 x Laser Engraving Machine

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Connectivity 9 / 10
  • Performance 8 / 10

ORTUR Laser Master 2 32-bit Motherboard Laser Engraving Machine

Laser engraving machines will be used by many do-it-yourselfers or professionals. ORTUR Laser Master 2 is also suitable for less experienced users and offers excellent engraving parameters, thanks to its decent performance.

If you want to give your home project an identity with a logo or other graphic image, ORTUR Laser Master 2 will be a suitable helper. It can engrave into materials such as hardwood, plywood, cardboard or even stone.

You can also engrave it on acrylic with it, but never do it on PVC. This is because hydrogen chloride gas is formed during the engraving of PVC.

As we mentioned, you can choose between 20 W and 15 W versions. The seller claims that the 20 W version is also suitable for efficient laser cutting, not just engraving. The 15 W version can do it, but less efficiently.

And now for a few technical details, if you’re interested. It contains a motherboard with a 32-bit STM32 MCU chip. It handles many more instructions.

There is a large engraving space of up to 400 x 430 mm. The power of the laser is at 20 W version 5000 – 5500 mw and at 15 W 4000 – 4500 mw. So you can choose according to your specific needs. The complete dimensions of the device are 57.00 x 55.00 x 17.52 cm and the weight stopped at 2.8 kilograms.

The range of laser power can be from S0 – S1000, while 8-bit engraving machines reach only S0 – S255. The overall efficiency is thus much higher and the engraving speed is 3000 mm/min. Software that you run on Windows (LaserGRBL), macOS and Linux (LightBurn software) is also available for ORTUR Laser Master 2.
