ORTUR Aufero Laser 1

ORTUR Aufero Laser 1
Brand: Ortur
Category: 3D Printer
  • 1: OLM-PRO-V1.2 Motherboard
  • 2: NEMA 17 Stepper Motors
  • 3: OLF-V180 seris Firmware
  • 4: Supporting the faster engraving speed
  • 5: 2nd Generation FAC
  • 6: 180 x 180 mm large engraving area

ORTUR Aufero Laser 1 - Price

ORTUR Aufero Laser 1 - Specs

Product Details

  • Features
    - Active Position Protection
    - Exposure Duration Detection and Limitation
    - Laser Beam Safety Guard
    - 24V Power Delivery System
    - Power control system, if shutdown the machine, it would cut the power
  • Specification
    Motherboard: OLM-PRO-V1.2 Motherboard, 32Bits ESP32MCU
    Firmware: OLF-V180 seris Firmware
    Frame Materials: Aluminum profile+Acrylic
    Motors: NEMA 17 Stepper Motors
    Mechanical Precision: Y:12.5um, X:12.5um
    Engraving Area: 180mm*180mm
    Wave Length: 445±5nm
    Focus: Fixed Focus
    Default Focal Length: SF: 50mm
    Control Mode: PWM
    Power Rate: S0-S1,000
    Engraving Speed: 0-5,000MM/Min
    Baud Rate: 115200 - 921600 (Default: 115200)
    Computer OS: Win XP, Win 7, Win 8, Win 10 (LaserGRBL) Mac and Linux (LightBurn)
    Input Voltage: 110V-220V (Compatible)
    Power Adapter Output: 24V/2A
    Operating Temp.: -20℃-50℃
  • Package content
    1 x Aufero Laser 1 Engraving Machine

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 8 / 10
  • Features 8 / 10
  • Connectivity 9 / 10
  • Performance 8 / 10

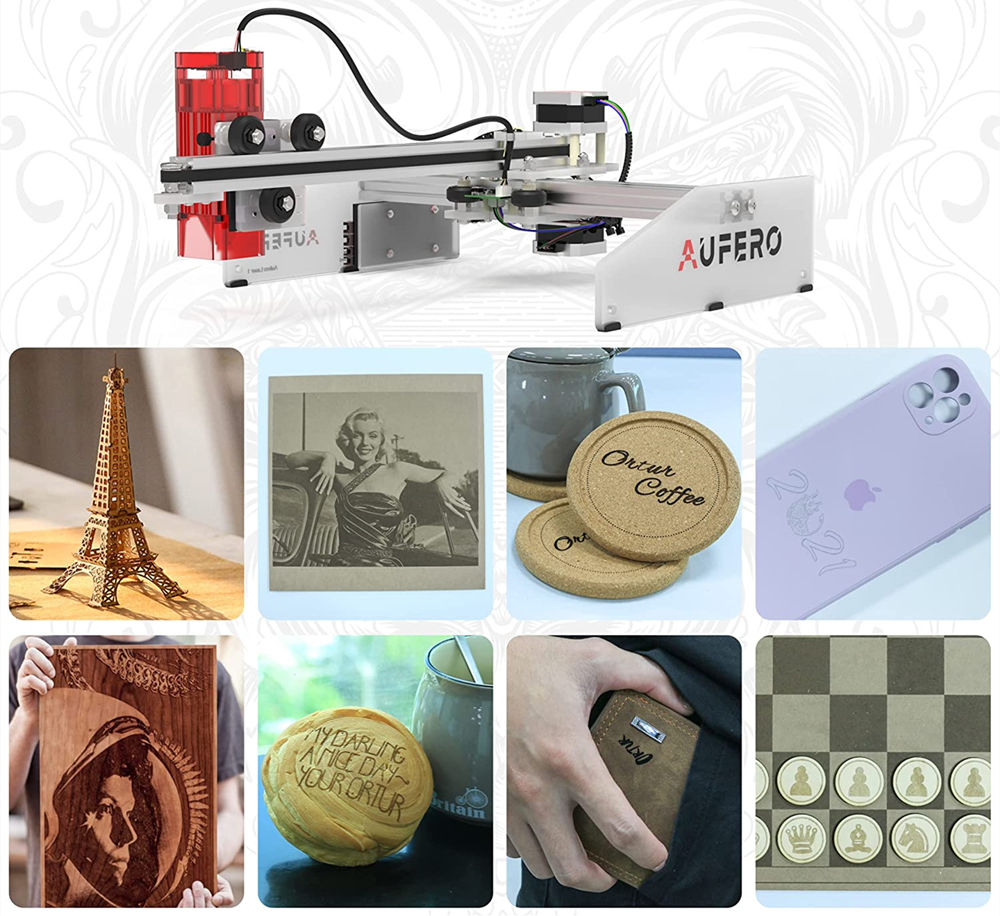

ORTUR Aufero Laser 1 Cantilever Laser Engraving Machine

Since 2020, ORTUR has had a good success in the laser engraving segment, and together with Atomstack, they have more than 70% of the category. ORTUR’s current top-of-the-line model is the Laser Master 2 Pro, and Atomstack is about to release their flagship model, the X7 Pro. I personally believe that the new products in the laser engraver segment will be geared towards the average consumer and will become more user-friendly and user-friendly.

We learned that Ortur will launch a new sub-brand Aufero in October, and will also release the first product of this new brand: Aufero Laser 1. This is a portable laser engraver, just like size of a laptop, so the engraving area is not like the mainstream 400*400mm, but 180*180mm.

The Aufero Laser 1 laser engraver has a shape that looks like a flying machine, a shape that could be called a cantilever structure. I understand that Atomstack’s new model P7 M40, which will be released soon, is also of this design. I think this design is novel, does not take up a lot of space and is easily portable.

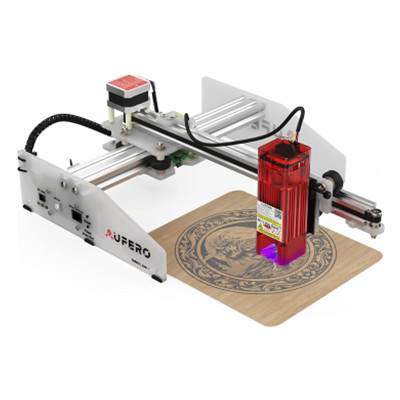

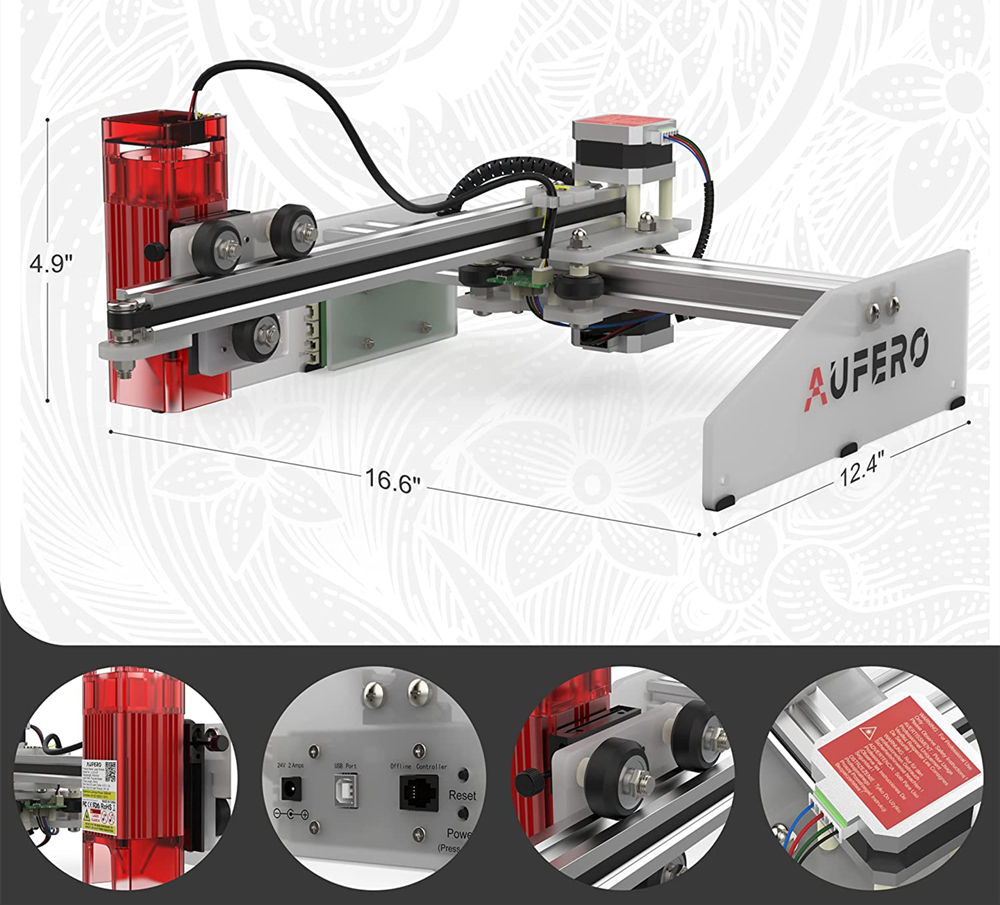

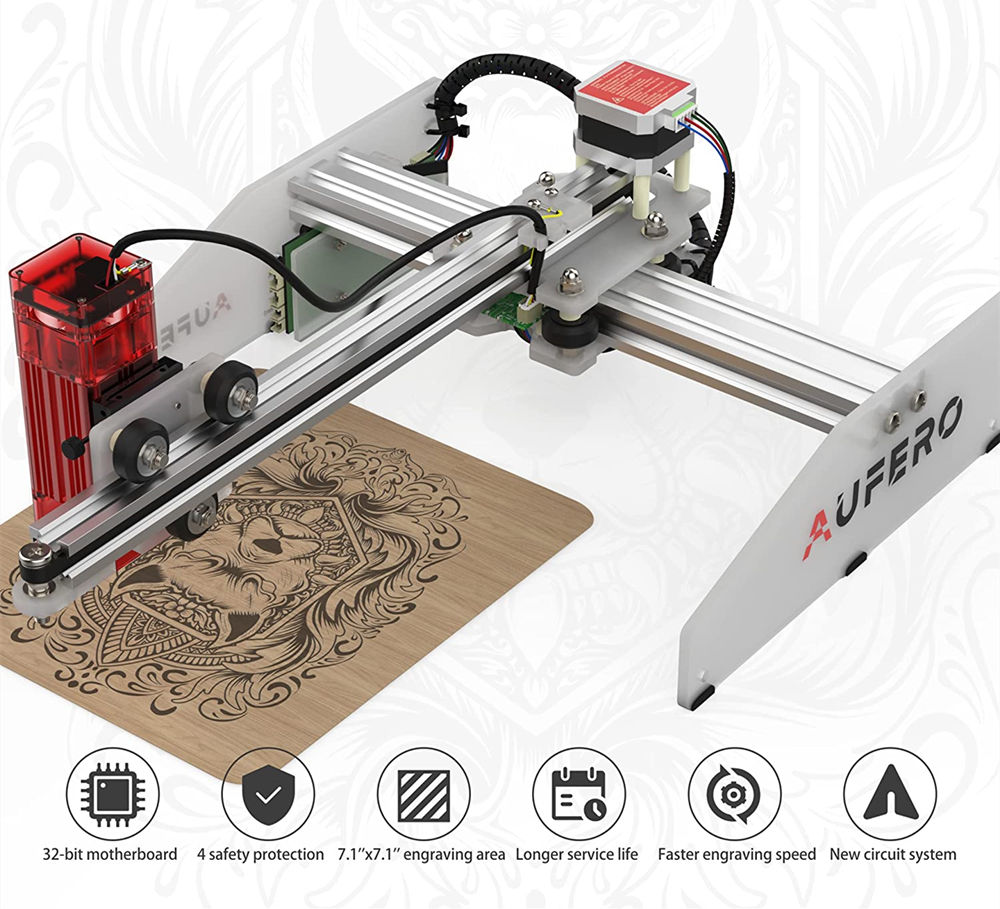

As we can see from the pictures, Aufero Laser 1 is made of white hard plastic and has two wide legs on the left and right sides to serve as a fixation. the laser module is mounted on the Y-axis and can move freely on the X-axis.

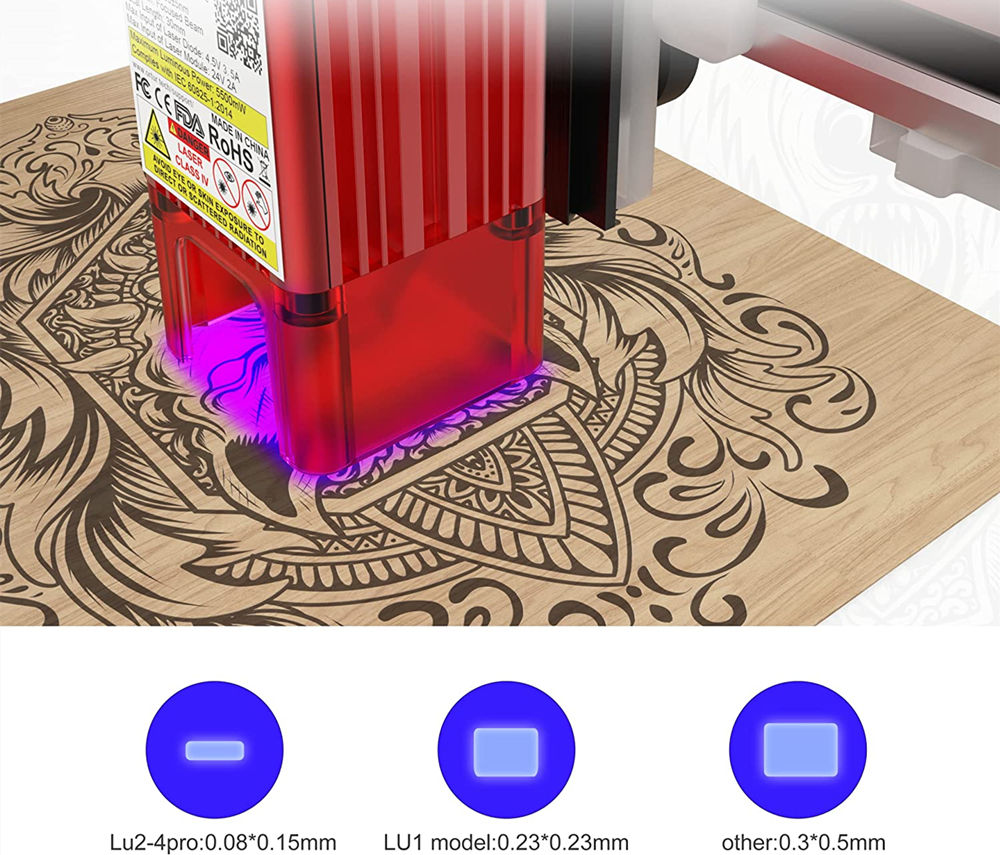

In terms of hardware configuration, it uses Ortur’s OLM-PRO-V1.2 motherboard, while equipped with a more powerful ESP32 MCU + 24V circuit, plus the Ortur Laser 1.7 series firmware upgrade, which can make the engraving speed further improved. I think it adopts 7W low power laser module with second generation Focus compression laser module, the engraving effect can be guaranteed. In addition, the laser head comes with a protective cover, as well as protective glasses included in the box.

Obviously, this laser engraver is positioned at the entry level and is aimed at beginners with a limited budget. I think Aufero Laser 1 is a good choice if you just do some engraving work on wood, bamboo, leather, coated metal.
