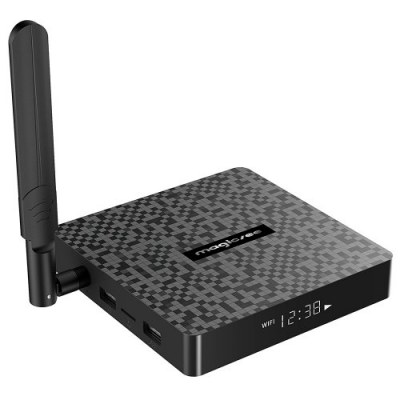

Magicsee has announced a new TV box called Magicsee N6 Plus, based on Amlogic S922X top chipset. The set-top box has excellent features and is able to cope with any multimedia content and even powerful 3D games.

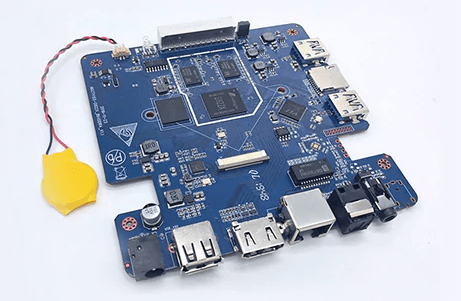

The Magicsee N6 Plus includes SoC Amlogic S922X, a 12nm six-core processor with 4 ARM Cortex-A73 processors that can reach 1.8GHz and 2 ARM Cortex-A53 processors that reach 1.9GHz. The graphics processor is an ARM Mali-G52 MP6 with a maximum frequency of 846 MHz, compatible with OpenGL ES 3.2 and Vulkan 1.0, allowing you to easily run powerful games such as PUBG. It is controlled by the Android 9.0 operating system. There is a special application for tracking the system parameters – Hardware Monitor.
As VPU Amlogic Video Engine (AVE-10) with all types of HDR support, Dolby Vision, Advanced HDR10, HDR10 +, HLG, PRIME HDR and REC709 / BT2020 profile support is used. There is also an integrated digital audio DAC. RAM is 4 GB LPDDR4 and internal memory is 128 GB eMMc, expandable thanks to the microSD card reader on the right side of the case.
TV Box Magicsee N6 Plus supports dual-band WiFi 2.4GHz / 5GHz, IEEE 802.11a / b / g / n / ac, 2 x 2 MIMO and Bluetooth 4.1 with internal antenna. Of the connectors on the case there are 2 USB ports: 3.0 and 2.0, Gigabit Ethernet connector, SPDIF digital audio output, HDMI 2.0 and 3.5 mm analog audio connector. As with similar models like Beelink, it uses an internal power supply for time synchronization.
