Minisforum X300

Minisforum X300
Category: Mini PC
  • 1: AMD Ryzen 5 PRO 3400GE
  • 2: Radeon™ Vega 11 Graphics 1300 MHz
  • 3: 16GB DDR4 RAM
  • 4: 512GB SATA SSD ROM
  • 5: Support Windows 10 Pro
  • 6: HDMI + VGA Dual Output

Minisforum X300 - Price

Minisforum X300 - Specs

Product Details

  • Features
    AMD Ryzen™ 5 3400GE
    Radeon™ Vega 11 Graphics
    Silent Fan with Super Coolong System
    Windows 10 Pro & Wi-Fi 6 pre-installed
    DDR4 8GB×1 Dual channel (SODIMM Slots×2)
    Large Capacity and Upgrade-Friendly
  • Specification
    Model: EliteMini X300
    OS: Windows 10 Pro
    CPU: AMD Ryzen5 Pro 3400GE,4 Cores 8 Threads 3.3Ghz,UP TO 4.0Ghz,Cache 4MB
    Instruction Set: 64bit
    Lithography: 12nm
    Graphics: Radeon™ Vega 11 Graphics 1300 MHz
    RAM: 16GB DDR4
    SSD: 1x 512GB M.2 2280 PCIE 4X SSD, 1x M.2 2242 SATA SSD slot, 1x 2.5inch SATA3 HDD slot
    WIFI: WIFI6, 2.4G/5G, 802.11AX, 802.11 b/g/n/ac, MIMO
    Bluetooth: Bluetooth 5.1
    LAN: 1000M
    Power Consumption: 19V/7.8A
    Product weight: 1.17 kg
    Product size (L x W x H): 15.40 x 15.30 x 6.20 cm

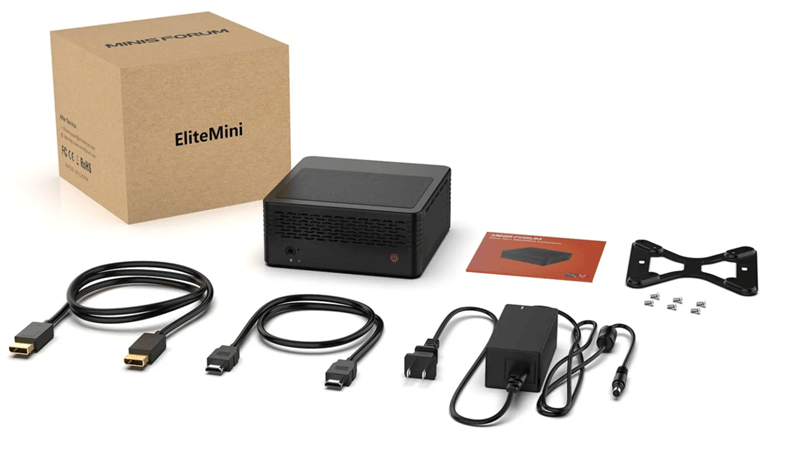

  • Package content
    1x MINI PC
    1x Mounting bracket
    1x Hdmi cable
    1x Power adapter
    1x Usb cable
    1x User manual

Our Rating

The overall rating is based on review by our experts

8.8 4.4 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

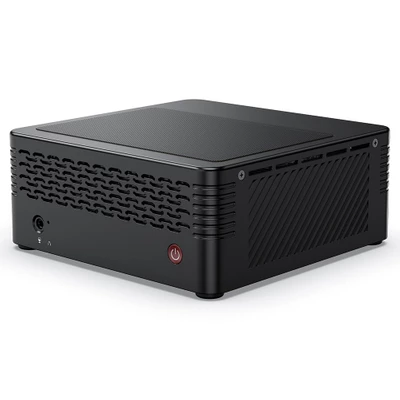

Minisforum X300 Mini PC With AMD Ryzen 5 PRO 3400GE CPU

The market for NUC-type mini PCs is booming now that teleworking is the order of the day, and now a new competitor has arrived who is already being touted as a “NUC killer”. It is the Mini-PC Minisforum EliteMini X300, equipped with an AMD Ryzen™ 5 3400GE processor with an amazing power.

With the arrival of the latest generation of AMD APUs, the mini PC market is changing a lot. As the inventors of this format, the NUC mini PCs were only taken by Intel processors, but in recent times we are seeing many models equipped with AMD Ryzen processor that exceed -widely in some cases- the usual power of the NUC and maintain their functionality and their form factor.

As we mentioned before, this mini PC uses an AMD Ryzen™ 5 3400GE APU, which includes a 4 Cores 8 Threads CPU with a base speed of 3.3 GHz and 4.0 GHz Turbo, as well as an 8-core Vega 8 GPU at 1200 MHz.

It is interesting to know that this chip has a TDP of 35 watts, but the Minisforum X300 integrates a 45 watts cooling solution, which allows the equipment to maintain a good temperature level emitting only 30 dBA of maximum noise. It can be seen that the equipment has ventilation grids on three of its sides for better cooling.

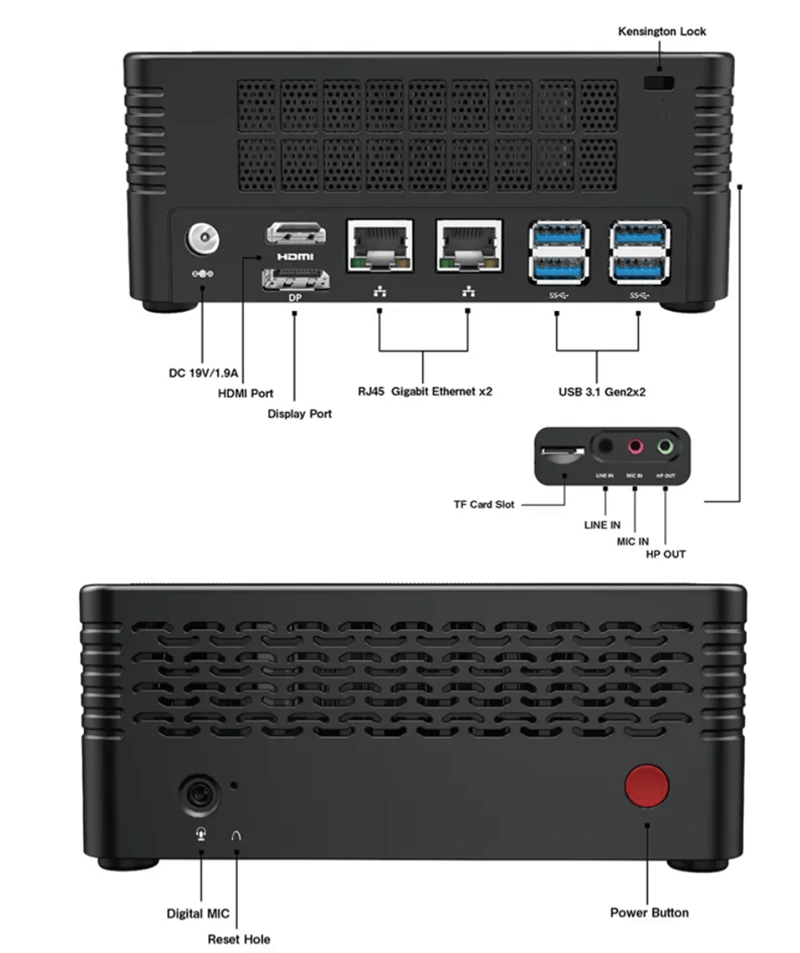

Although the manufacturer has not specified its dimensions, it is clear that this device is NUC format, and in fact has VESA anchor to mount it on the back of a monitor. As you can see in the pictures above, the device has one USB-C port, four USB 3.0 (one 3.1), mini audio jack, DisplayPort 1.2 and HDMI 2.0 video outputs and two RJ-45 network connectors.

Inside we find two SO-DIMM sockets DDR4 at 2400 MHz to install up to 32 GB of RAM, as well as a socket M.2 2280 for SSDs with SATA interface (it’s a pity that it is not PCIe NVMe).

There is also room to install a 2.5 inch SSD and SATA interface, and it includes an Intel AX200 WiFi + Bluetooth 5.0 combo module. The Minisforum X300 is obviously a barebone that comes without RAM memory or storage, so as we always say watch out for this if you decide to buy it because it is not a complete PC as such.

As we said, the manufacturer has not specified the dimensions of the product, but in the marketing material they say it fits in the palm of the hand. The case, which appears to be made of aluminum in combination with black plastic, has generous grids on three sides, and highlights the fact that the top of the case can be removed by simply pressing on the sides so that we can access the internal hardware without the need for a screwdriver.

As you can guess, this mini PC has a lot of ballots to become a real NUC killer, although of course it will depend on the price at which they put it on sale, since the manufacturer has not specified it yet.

Similarly, the manufacturer has not yet specified the launch date of this mini PC, but they have indicated that they will launch a campaign at Indiegogo and if you subscribe to their newsletter you will get a 25% discount on the price once the launch takes place.
