MJX Bugs B7

MJX Bugs B7
Brand: MJX
Category: Drones
  • 1: Optical Flow Positioning
  • 2: Point of interest
  • 3: Follow me
  • 4: 5G WiFi 4K HD Camera
  • 5: 4K ultra HD camera
  • 6: Trajectory Flight

MJX Bugs B7 - Specs

Product Details

  • Features
    1. Optical Flow Positioning: The built-in optical flow sensor that gets the real-time optical flow information and makes integrating computations.
    2. Follow me: The drone's camera will lock on your mobile phone, when using this function, the drone will track you automatically and capture your movement with paticular aerial view.
    3. Point of interest: Set a specific building, object or position as your point of interest. With point of interest, your drone will continuously circle clockwise around the present point.
    4. 5G WiFi 4K HD Camera:The wide-angle lens, which made up of a number of optical lens elements, makes it possible for the camera to capture sharp and vivid image with expansive background
  • Specification
    Brand: MJX
    Item Name: Bugs B7
    Item No.: B7
    Color: Black
    Mode: Mode 2 (Left Hand Mode)
    Wheelbase: 175mm

    Quadcopter Weight: 249g
    Max. Ascent Speed: 3m/s
    Max. Descent Speed: 2m/s
    Max. Flying Speed: 32km/h
    Max Flying Time: 15mins
    Max. Limit Height: 120m

    Motor: 1306 2750KV Brushless Motor
    ESC: 4A Brushless
    Built-in Positioning Sensor: GPS/Optical Flow/Barometer
    EIRP: 20dbm

    Operating Frequency: 2.4G
    Transmitter Battery: 1.5V 2 X AA(Not Included)
    Using Time: About 12h

    Item Name: 4K 5G Wifi Camera
    Effective Pixels: 4K
    Image Transmission: 720P@20FPS
    Video Transmission System: 5G WiFi(802.11.ac)
    Image Transmission Range: 200-300m
    Video Frames: 20fps
    Lens Angle: 120°
    Aperture: F/2.5
    Focal Length: 3.6mm
    Sensor: 1/2.7 inch CMOS
    Local Video Frame Rate: 4K@16fps,2.5K@25fps
    Camera Adjustable Angle: 0° to -90°
    Max Photo Resolution: 3840*2160
    Max Video Resolution: 3840*2160
    Supported SD Cards: Micro SD Card Class 10 And Above (Not included)
    Max. Expansion: 32GB

    Capacity: 1500mAh
    Voltage: 7.6V
    Battery Weight: 74g
    Flying Time: About 15mins
    Charging Time: About 150mins
    Ambient Temperature: 5 ~ 40 Celsius

    Input: 5V/2-2.1A
    Output: 7.6V/2A
    Operating Temperature Range: 5 ~ 40 Celsius

    Product weight: 249g
    Product size (L x W x H): 24×23.5×5.5cm
  • Package content
    1 X RC Quadcopter
    1 X Transmitter
    1 X 7.6V 1500mAh Battery(the battery quantity can be chosen)
    1 X Charger
    1 X USB Cable
    4 X Propeller
    1 X Screwdriver
    1 X Manual

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

MJX Bugs B7 GPS With 4K 5G WIFI Camera Foldable RC Quadcopter RTF

The new MJX Bugs B7 is the first foray into the world of racing drones by the Chinese company MJX. It is basically a racing drone for beginners with a great price/quality ratio. Racing drones for advanced drivers require a lot of skill as they do not have any kind of stabilization. The Bugs 7 is a drone that has stabilization and is perfect for those who want to make a first contact with racing and flying drones FPV (First Person View) or flying by watching the images captured by the drone’s camera in real time.

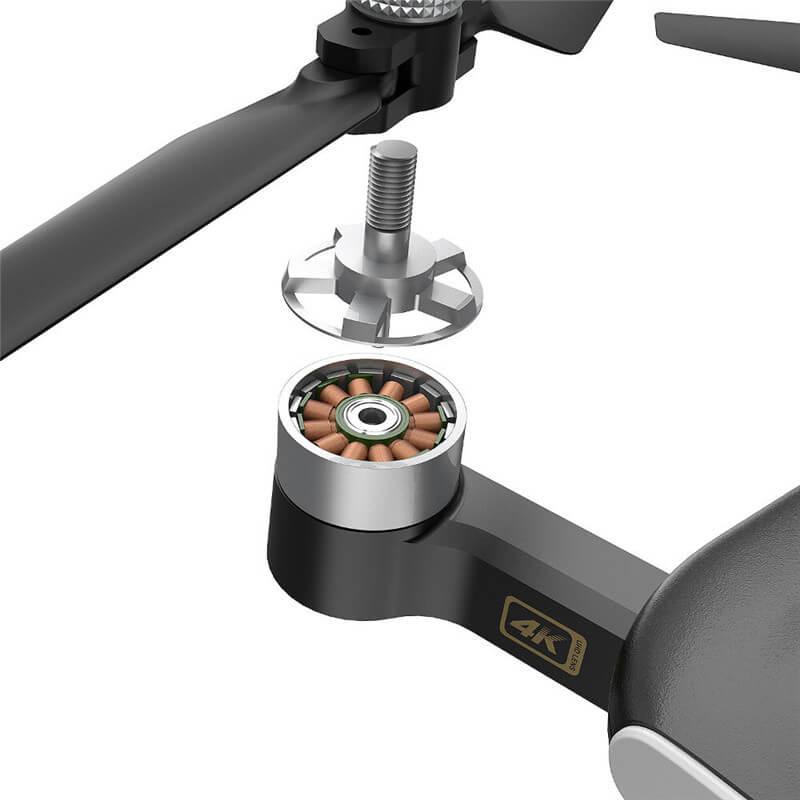

It is equipped with four powerful brushless motors which gives it great power and stability. The brushless motors, unlike the brush motors that use other cheap drones, are almost maintenance free and much more powerful. The MJX Bugs B7 has dimensions of 24×23.5×5.5 cm and a weight of 249 g (without the battery). The diagonal motor diameter is 250 mm. There are different categories of racing drones depending on the diagonal distance from engine to engine, ranging from the MINI-250 to 1000 GIANT.

It is equipped with a 7.6V 1500mAh lipo battery with a flight range of about 15 minutes. The MJX Bugs B7 is equipped with a MJX camera, the C5830 FPV, with its own 5.8G transmitter, eight channels and 720P resolution. The camera’s antenna is attached to the side of the drone and has a slot for inserting an SD card to record images and videos captured by the camera. The camera transmits images in real time in a clear and uninterrupted manner to a 4.3″ LCD monitor. The LCD monitor can be converted into goggles for a full FPV flight experience. Simply attach the LCD monitor to the MJX goggles. You can use any goggle with a 5.8G receiver.

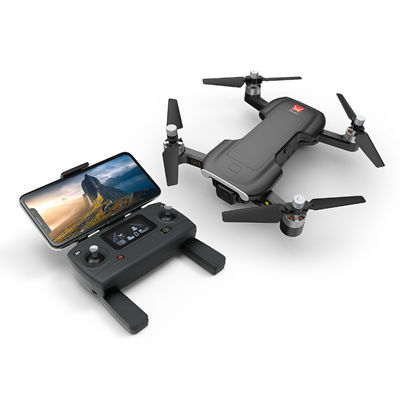

The Bugs B7 comes with a radio control with a range of 300 meters. From the radio control you can activate two speeds. A slow one for beginner pilots and a fast one to get the most out of your drone. In the case of a weak signal or low battery the drone will beep to warn you. You can also activate photography or video. In case of emergency you have a button to cut the power of the engines. You can also activate the front and rear LEDs and a key to make 360 degree turns.

It is the best choice to get you started in the world of racing drones and FPV flying. A great quality / price and reliability.
