Brand: Other
Category: Mini PC
  • 1: Intel Core i7-1065G7
  • 2: Intel Plus Graphics GPU
  • 3: 16GB DDR4 RAM for Advanced Multitasking
  • 4: 512 SSD Storage Capacity
  • 5: Good Heat Dissipation Performance
  • 6: Dual 4K video output



Banggood Coupon: BGMNMU02S  Price: $529.99  Time: 2021-09-30

Banggood Coupon: BGMNMU02H  Price: $549.99  Time: 2021-09-30

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 9 / 10
  • Performance 10 / 10
  • Connectivity 8 / 10

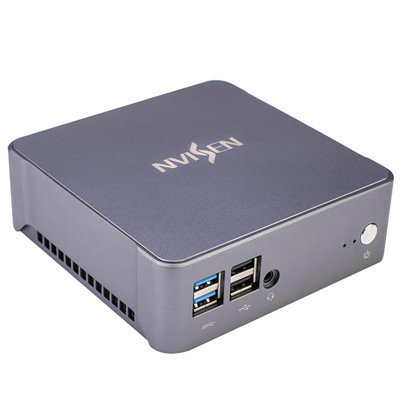

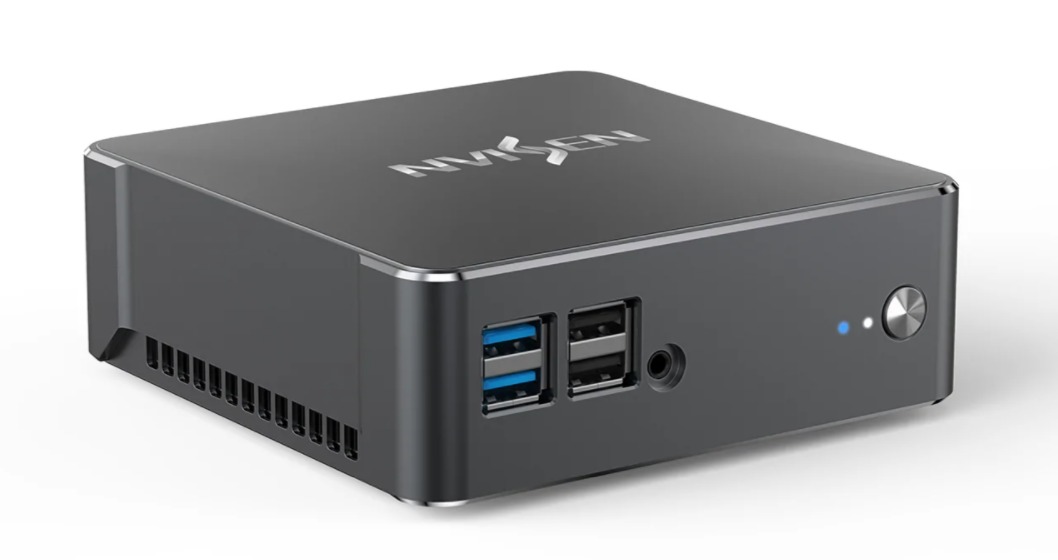

NVISEN MU02 Intel i7-1065G7 Mini PC

Chinese PC brand NVISEN has released the NVISEN MU02, a desktop PC with Intel i7-1065G7 and other features. There is a barebone version and a model with RAM/SSD and Win10 pre-installed, both are attractive.

Recently, the mini PC market has been hot with high cost performance. The NVISEN MU02 is also a very high cost, ultra-compact PC. It is also palm-sized at 12.8 x 12.8 x 4.3 cm.

You can choose between the barebones version with or without RAM/storage, and the inside looks like this, with two SO-DIMM (RAM) slots, 2.5′ SATA, and M/2 SSD slots on the board. Also, a 2.5′ SATA HDD/SSD can be installed on the top lid side. However, since it is such a narrow structure, it would be better to avoid HDDs with heat and install SSDs.

The other side has the CPU + CPU fan (and heatsink), but the lid side has holes for ventilation and cooling measures.

Intel’s CPUs with U are ultra-low voltage and are mainly designed for notebooks, but the i7-1065G7 is still comparable to the AMD R7 found in the previous generation of gaming notebooks.

It is available in 16GB memory and 512GB storage models. The barebones version comes with no RAM and no storage, and of course no OS, while the version with RAM and storage comes with Win 10 preinstalled.

It comes with a large number of expansion ports, including four USB 3.0 ports, two USB 2.0 ports, and six USB ports alone. In addition, USB Type-C, HDMI, and DP (Display Port) are all available at a level similar to that of most tower-type desktop PCs.


Product Details

Features - Intel Core i7-1065G7 Quad-Core 1.3GHz, up to 3.9GHz
- 16GB DDR4 RAM Dual Channel

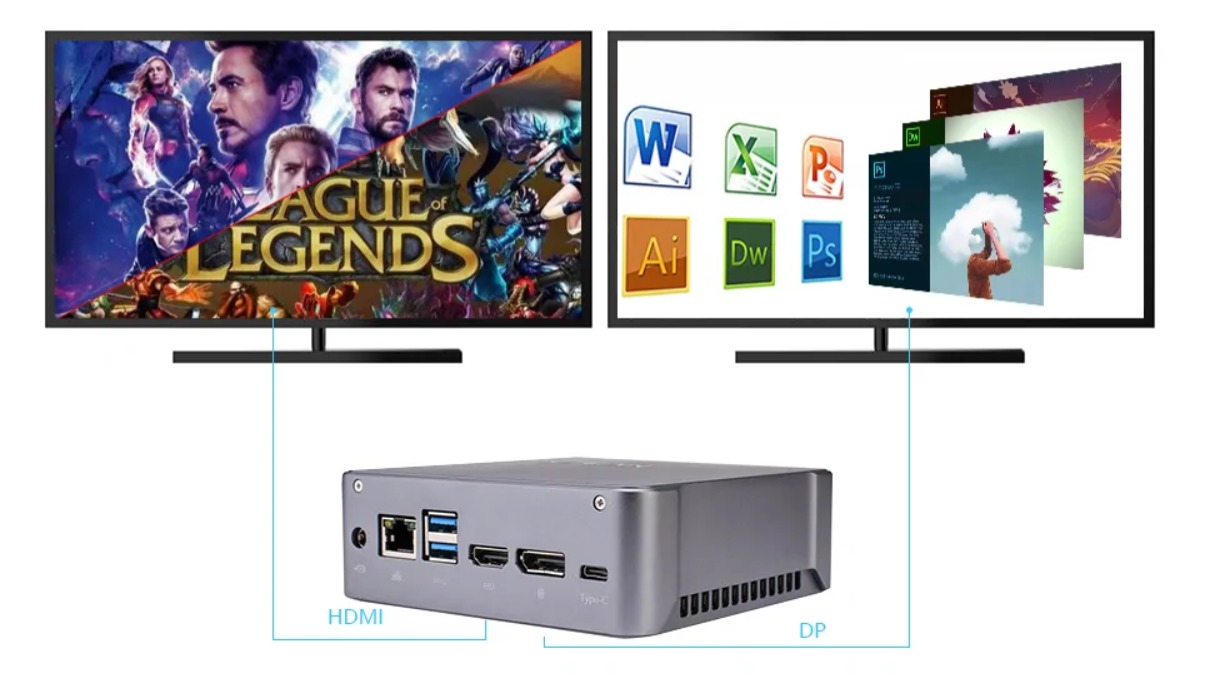

- HDMI + DP + Type-CTriple Output Expands Your Viewing Options
Specification Brand: Nvisen
Type: MU02
CPU: Intel Core i7-1065G7
Core: Quad-core eight-threads 8MB Cache,1.3GHz, Up to 3.9GHz
GPU: Intel Plus Graphics GPU
RAM: 16GB DDR4, can be upgraded up to 64GB RAM
Hard Drives Capacity: 512GB M.2 NVME SSD
SSD: Support 2.5 inch SATA SSD up to 2TB
Operating System: Windows 10, support Linux installed
