Brand: Other
Category: Mini PC
  • 1: Intel Core I7-8565U CPU, Quad Core
  • 2: Intel UHD Graphic 620 GPU
  • 3: 8GB DDR4 RAM for Advanced Multitasking
  • 4: 128 / 256 SSD Storage Capacity
  • 5: Good Heat Dissipation Performance

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

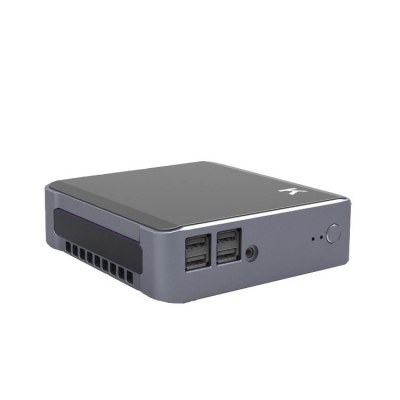

NVISEN Mini PC With Intel Core I7-8565U

It is not the most economical MiniPC we have ever seen. At 382.30€ it is more in the upper range of the genre. But this price can be easily explained since the Nvisen Y-MU-01 is quite well equipped. It starts with a Core i7-8565U, a four-core chip and eight threads operating from 1.8 to 4.6 GHz with 8 MB cache. Launched in the third quarter of 2018, it is part of the Whiskey Lake processor galaxy and therefore includes an Intel UHD 620 graphics circuit. This high-performance chip has a TDP of 15 watts, so it will be necessary to actively dissipate it. The housing is drilled from side to side to allow air to circulate through the heart of the machine

The Nvisen Y-MU-01 chip can handle up to 64 GB of DDR4 and this is quite good because the device offers, and this is quite rare, two SoDIMM memory slots in this format. It comes standard with 8 GB of RAM but can easily be upgraded to 16 or 32 GB.

The storage is composed by default of 128 or 256 GB in M.2 format. It will be supported by a 2.5″ standard SATA slot to add a mechanical disk or a second SSD. No image of the rear connector is available, however, the data sheet indicates that the unit has an HDMI 2.0 output and a Display-Port output to manage two Ultra-HD displays.

The package includes a total of four USB 3.0 ports, two USB 2.0 ports, one Gigabit Ethernet port, one Wifi4 module and Bluetooth 4.0 and headphone and microphone jacks. The Nvisen Y-MU-01 measures 13.6 cm wide by 12.5 cm deep and 4.3 cm thick.


Product Details

Features Intel Core I7-8565U CPU, Quad Core
8GB DDR4 RAM for Advanced Multitasking
128 / 256 SSD Storage Capacity
Specification Brand NVISEN
Type Y-MU-01
Color Sliver
Type Mini PC
CPU Intel I7-8565U
Core Quad Core,1.8GHz,Up to 4.6GHz
Cache 8M
Display core Intel HD Graphics 620
Hard Drives Capacity 128GB/256GB
Operating System Support Windows 8 / 10 / Linux

Power Input Vol DC 12V/5A
Power Output Vol AC 100-240V

Product weight 0.8500 kg
Product size (L x W x H) 13.60 x 12.50 x 4.30 cm
