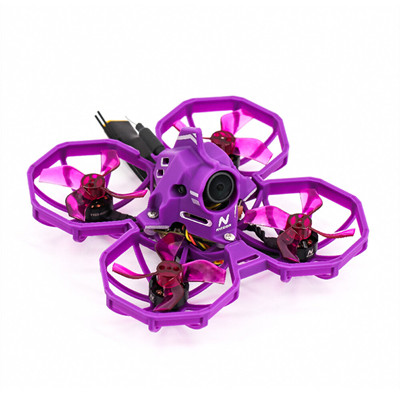

NVision Junior Racer75

NVision Junior Racer75
Brand: Other
Category: Drones
  • 1: Special purple color, beautiful design
  • 2: 135°octagonal protective cover
  • 3: Low battery protection
  • 4: Wheelbase: 75mm
  • 5: 1103 8000KV Brushless Motor
  • 6: GEMFAN 1636 4-blade propeller

NVision Junior Racer75 - Price

NVision Junior Racer75 - Specs

Product Details

  • Features
    - Special purple color, beautiful design
    - 135°octagonal protective cover increases the impact surface of the crash from 0.4c㎡ to 1c㎡, effectively protecting the FPV drone
    - With CADDX Eos2 1200TVL 1/3 CMOS 2.1mm Lens HD FPV Camera
    - Support the global professional racing velocidrone simulator, and get the same racing experience indoors in winter as real flying.
    - Low battery protection, out of control protection, etc., provide multiple protections for FPV
  • Specification
    Brand Name: NVision
    Model: Junior Racer75
    Item Name: 75mm F4 3S Whoop FPV Racing Drone
    Version: PNP ( Without Receiver, Lipo Battery, Radio Transmitter)
    Wheelbase: 75mm
    FC & ESC: F4 Flight Controller AIO 12A ESC
    Brushless Motor: 1103 8000KV Brushless Motor
    Propeller: GEMFAN 1636 4-blade propeller
    FPV Transmitter: Triangular vtx/ with small stick antenna
    FPV Camera: CADDX Eos2 1200TVL 2.1mm Lens FPV Camera
    Weight: 50.4g ( without battery and receiver)
    Flight Time: 5-7 Mins ( Take Example as 300mAh 3S 45C Lipo, NOT Included)
  • Package content
    1x NVision Junior Racer75 FPV Drone

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

NVision Junior Racer75 75mm F4 AIO 12A ESC 3S Whoop FPV Racing Drone

This is a little new in the world of Tinywhoop type nano racers! The Junior Racer75 is a small format device, with a diagonal of 7.5 cm from engine to engine, with a plastic fairing that protects the propellers. It allows, according to the manufacturer, to take the shocks of big crashes. The motors are brushless 1103 to 8000KV for 1.6 inch 1636 four-bladed Gemfan propellers.

It is based on an F4 AIO flight controller, flashed with Betaflight, associated with an ESC 4 in 1 of 12A. The FPV camera is a Caddx Turbo EOS2, 1200TVL, associated with a 5.8 GHz analog video transmitter equipped with a dipole antenna. The battery connector is an XT30. NVision recommends to use 300 mAh Lipo 3S to ensure a 5 minutes autonomy. A radio receiver must be added to this device – a socket allows you to quickly connect an SBUS model. The weight? Without battery and radio receiver, the unit weighs 50.4 grams. Price? The Junior Racer75 from NVision will be offered at $112.99 at Banggood. I started the tests, I tell you more very quickly…
