Brand: Other
Category: 3D Printer
  • 1: Smart APP control
  • 2: Powered by the power bank
  • 3: German imported laser head
  • 4: 500mW 405nm blue-violet laser light source
  • 5: Mini foldable, flexible adjustment

Our Rating

The overall rating is based on review by our experts

  • Design 8 / 10
  • Features 9 / 10
  • Connectivity 8 / 10
  • Performance 9 / 10

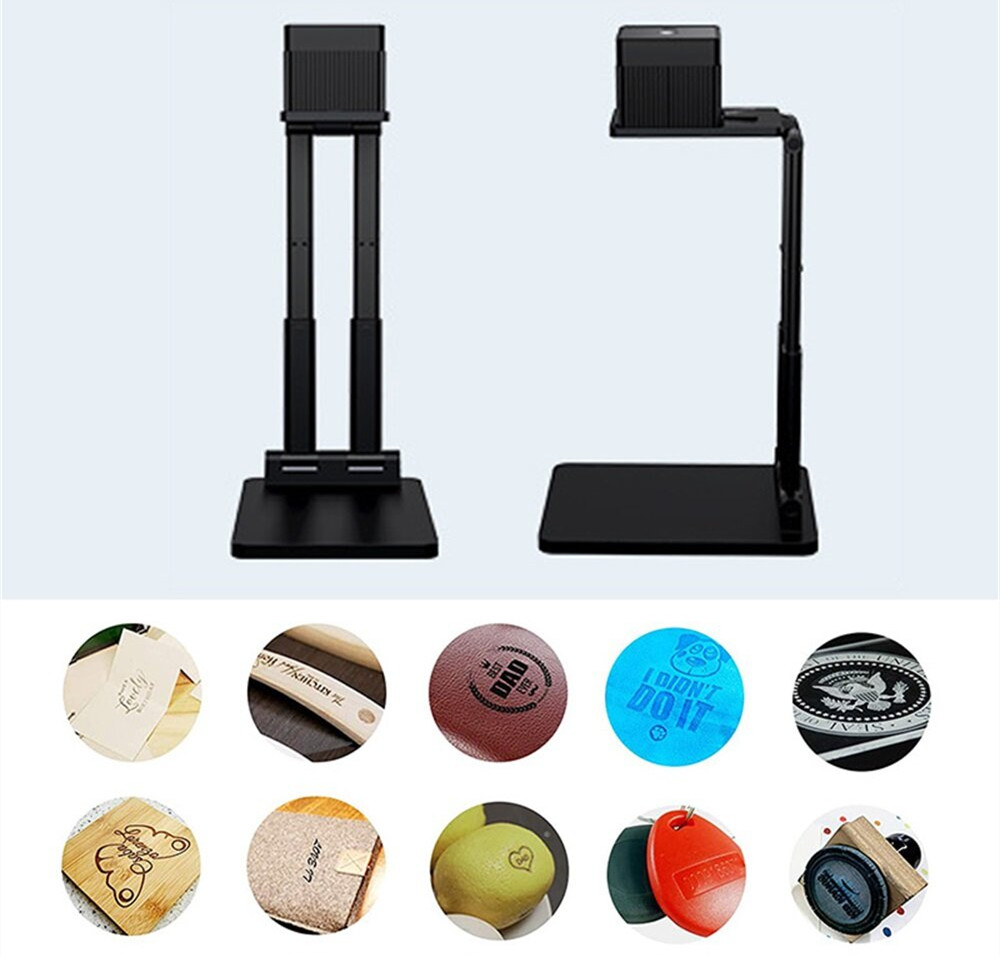

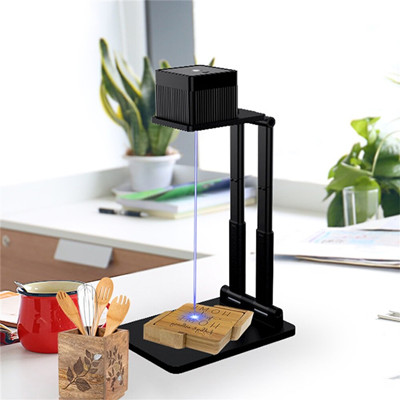

OKINGJOY LC100 500mW 405nm Mini Laser Engraving Machine

OKINGJOY LC100 is a portable mini laser engraver, this model uses a more compatible 500mW semiconductor laser power, wood, leather, plastic, can be easily engraved.

It uses an integrated design with high-speed oscillator technology solution for fast engraving at 600mm/s, and the small size can also meet the demand for batch customization.

This very interesting engraving machine is designed with dual optics and dual focus to achieve higher precision engraving. It can be directly handheld engraving, regardless of the size and shape of the engraved object. With dual-roller auto-rotating accessories, it can achieve 360° rotating engraving on cylinders. By high precision motor control bracket lift, to achieve different height object engraving.

You can even use the OKINGJOY LC100 comes with APP, you can edit pictures, text, hand-painted signature, QR code engraving in the APP to meet your customized engraving needs.

It uses NICHIA original imported laser source, can work continuously for a long time, the service life of up to 10000 + hours.


Product Details

Features - Smart APP control, bluetooth wireless connection, get rid of computers and data cables, easy to operate.
- Powered by the power bank, more convenient battery life. DIY anytime and anywhere, let more inspiration come into reality.
- German imported laser head, 500mW 405nm blue-violet laser light source (equivalent to 1500mW ordinary laser), long service life.
- Mini foldable, flexible adjustment, multi-angle engraving.
- Multi-material carving: wood/bamboo/cardboard/plastic/leather/PCB version/acrylic materials, etc.
Specification Brand: OKINGJOY
Model: LC100
Name: Pocket Smart Laser Engraving Machine
Color: Black
Material: Aviation Aluminum Alloy
Power input: 5V 2A, USB Type-c socket
Engraving area: 100x100mm
Laser source: 500mW 405nm blue-violet laser imported from Germany (equivalent to 1500mW ordinary laser)
File transfer: bluetooth 4.2/5.0 wireless transfer
Support format: BMP/JPEG/PNG and other image formats
Support system: Android /iOS
Support language: Chinese/English
Product size: 60×60x56mm
Product weight: 190g
Bracket size: 170×120x32mm (after folding)
Bracket weight: 690g
Applicable material: wood, bamboo, cardboard, plastic, leather, PCB version, acrylic material
