RadioMaster TX16S

RadioMaster TX16S

Brand: Other
Category: Drones
  • 1: Potentiometer Gimbal
  • 2: Internal Multi-protocol RF System
  • 3: Supports Telemetry
  • 4: Memory 16M
  • 5: Voice function

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

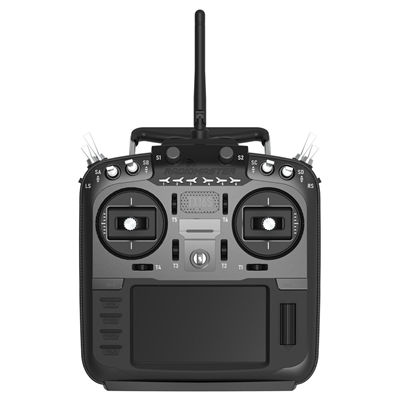

RadioMaster TX16S 2.4G 16CH Multi-protocol RF System OpenTX Potentiometer Gimbal Mode2 Transmitter for RC Drone

Haven’t you fallen for a multiprotocol radio control yet? Perhaps it is because the Jumper T12 is too small, and the T16 is difficult to find. The Radiomaster TX16S is almost identical to the T16. It is quite imposing (18.3 x 21.2 x 6.6 cm for a weight of 736 grams without battery), which ensures good grip. The control screen is a 4.3 inch color, the operating system is OpenTX, the rear hatch allows you to place a 2S battery or 2 Li-Ion batteries with a USB-C connector that allows charging.

Inside the TX16S is a multiprotocol module which ensures the compatibility of the radio control with the protocols of FrSky, Spektrum (DSM), Futaba, Flysky, Walkera, and those of Chinese manufacturers such as Hubsan, Syma, HiSky, Bayang , etc.At the rear of the radio control, a hatch allows the insertion of an external module, such as for example a Crossfire model from TBS. The radio control is delivered in mode 2, but it can easily be modified to switch to modes 1, 3 and 4. There are 2 versions of the TX16S. The first, the cheapest, is the TX16S with simple joysticks.

SPECS

Product Details

Features STM32F429BIT6 MCU
Industrial grade 4.3 inch 480*272 outdoor readable color screen
Compatible with OpenTX
Wheel menu button
Potentiometer Gimbal
Internal Multi-protocol RF System
Supports Telemetry (Protocol and Receiver dependent)
Memory 16M (can be expanded by Micro SD card)
Voice function
Vibration reminder function
Improved JR module slot
6-Flight Mode Buttons (Pixhawk, custom functions and more!)
Three-color LED status display
USB-C Charging port.
USB-C Simulator and PC connection port.
External UART ports to expand the capabilities of your radio.
Specification Brand Name: RadioMaster
Item Name: TX16S Transmitter
Channel: 16CH
Mode: Mode2 (Left Hand Throttle)
Size: 180*190*58 mm
Weight: 820g (with 2 x 18650 batteries installed)
Voltage: DC7-8.4V
Battery: 2 x 18650 (tray supplied) or 2S lipo (batteries not included)
Current: 350mah (NO CRSF)
External Micro SD slot: Card Included
2 x External UART Expansion Ports
