Reptile CLOUD-149

Reptile CLOUD-149
Brand: Other
Category: Drones
  • 1: Compact space
  • 2: complete functions
  • 3: flight stability
  • 4: not easy to damage
  • 5: simple maintenance
  • 6: shooting 4K video

Reptile CLOUD-149 - Specs

Product Details

  • Features
    Flight Controller & ESC : 20A ESC + Mini F4 Flight control + 500MW VTX
    Propeller: 3045
    Camera installation width: 19mm
    TPU Go.Pro mount
  • Specification
    Item name: CLOUD-149 RC Drone (PNP Verson)
    Wheelbase: 149mm
    Structure: X-type Division
    Top plate: 2mm
    Side plate: 1.5mm
    Bottom plate: 3mm
    Internal height: 30mm
    Plastic parts: ABS material plastic Diversion ring
    Printed parts: TPU antenna base *1
    Recommend Battery(Not included): 4S 850mAh
    Weight: 88G
  • Package content
    1* CLOUD-149 frame kit
    2* 1407 4000KV motor CW
    2* 1407 4000KV motor CCW
    1* 20A BLHELI_S 4 in 1 ESC
    1* Mini F4 flight controller
    1* 1200TVL camera
    1* 5.8G 40CH 25MW 200mw 500MW switchable VTX
    2* 3045 3-blade propeller purple CW
    2* 3045 3-blade propeller purple CCW
    1* 30° Camera Mount(For 6/7)
    1* Pagoda antenna
    1* Battery strap
    1* Circularly polarized antenna

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

Reptile CLOUD-149 149mm 3 inch 4S 20A BLHELI_S Mini F4 1200TVL Camera PNP FPV Racing RC Drone

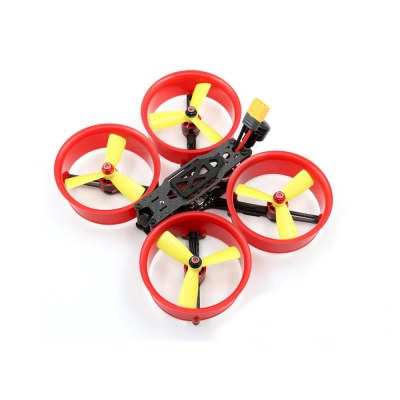

Builders unknown to the battalion are launching into the micro racers market. This is the case of Reptile, with its Cloud-149. It is a device with propeller protection of the Tinywhoop type, but quite large since it measures 14.9 cm diagonally. The structure is made of carbon, 3 mm thick for the lower plate, 2 mm thick for the upper plate with 3 cm spacers. The motors are 1407 to 4000KV brushless motors for 3 inch 3045 three-bladed propellers, all powered by a 20A 4 in 1 ESC. The latter is integrated into the flight controller component based on an F4 processor, flashed with Betaflight and including an active OSD.

The camera model is not indicated, it is a 1200TVL associated with a 5.8 GHz video transmitter compatible with 40 channels, capable of operating in 25 mW (the maximum allowed in France), but also 200 mW and 500 mW. The video antenna is a polarized one. Interesting, finally, this device from an unknown manufacturer, since it is able to carry a GoPro Hero 7 and transform into a Cinewhoop – a TPU bracket inclined at 10° is provided in the box. The total weight, excluding batteries, is 88 grams. There is no recommendation for the battery, but he takes the 3S and most probably the 4S without concern. To take off, you still need to add a radio receiver. The price? The Cloud-149 will be offered at 124 € at Banggood (excluding port, excluding taxes), in black or red.
