Brand: Other
Category: Gadget
  • 1: 15KM long-distance flight
  • 2: Expand Bluetooth, FPV, Link
  • 3: Telemetry data return
  • 4: OTA wireless upgrade receiver
  • 5: 4096 high resolution ratio channels
  • 6: 2MS high-speed response

SIYI FT24 - Price

SIYI FT24 - Specs

Product Details

  • Features
    15KM long-distance flight
    Expand Bluetooth, FPV, Link
    Chinese and English custom voice broadcast
    Telemetry data return
    OTA wireless upgrade receiver
    Support TF card
    Bearing assembly Gimbal
    4096 high resolution ratio channels
    2MS high-speed response
    2.8 inch high brightness color LCD screen
    Chinese and English menu
    Power voltage, RSSI signal return
  • Specification
    Brand Name: SIYI
    Item Name: FT24 Transmitter with Receiver (Optional)
    Weight: 586g (without battery)
    Size: 191*175*64mm
    Maximum communication distance (no interference, no obstruction): 15 KM
    Operating frequency: 2.400-2.483 GHz
    Output: PPM/PWM/SBUS
    Number of channels: 12 physical channels, 16 signal channels
    Support models: multi-rotor/fixed-wing/glider/helicopter/car/ship
    Support battery type: 18650 *2, 2S Lipo battery (Not Include)
    Battery compartment size: 60*58*16 MM
    Antenna gain: 2dbi
    Working current (rated): 210mA
  • Package content
    1 x FT24 Transmitter
    1 x FR Receiver (Optional)
    1 x FR Mini Receiver (Optional)

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 8 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 9 / 10

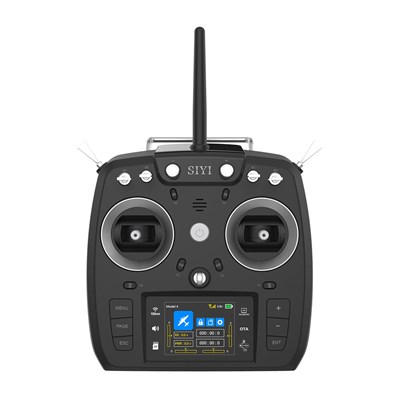

SIYI FT24 2.4GHz 12CH 15KM Long Range Transmitter with FR/FR Mini OTA Receiver Support External R9M/TBS Multi-protocol RF System for RC Drone

TBS Crossfire? R9 from FrSky ? Ghost from ImmersionRC ? Or older solutions like Dragonlink or HumPRC from Linx? Perhaps the alternative to these long-range radio link tools is Siyi’s FT24 radio control. It measures 19.1 x 17.5 x 6.4 cm for 586 grams without battery. It offers up to 24 channels (12 physical), support for PPM, PWD and SBUS, all in the 2.4 GHz range. It displays telemetry on a 2.8-inch color LCD screen. It houses a memory card and allows OTA (wireless) receiver updates. It has 6 switches and 2 thumbwheels. To power it, its manufacturer recommends 2 Li-Ion 18650 batteries.

Siyi assures that it can carry up to 15 kilometers and that its latency is about 2 milliseconds! The manufacturer does not give any more details, in particular the emission power – which is limited by law to 100 mW in France. A trap door at the rear allows to accommodate modules in JR format like TBS or FrSky transmitters. Convenient to ensure compatibility with equipment you already have.

The FT24 is compatible with the FR Receiver, a 5.15 x 5.38 x 1.3 cm model weighing 20 grams without an antenna, which offers 16 channels on SBUS, and operates on a 5 to 8.4 V power supply. The FR Mini Receiver offers similar features, but measures only 2.4 x 1.5 x 0.3 cm and weighs 1.5 grams (without antenna). It is to be supplied with 5V.
