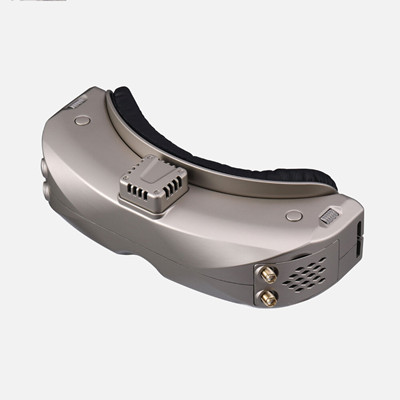

SKYZONE SKY04X OLED 5.8GHz 48CH Steadyview Receiver FPV Goggles Support DVR For RC Racing Drone

Popular manufacturer SKYZONE has launched the SKYZONE SKY04X OLED FPV goggles. FPV goggles are available in three models: high-end, middle, and entry-level, but SKYZONE until now has been positioned in the middle of high-end and middle, and they are the manufacturer that splits popularity with high-end models such as Fatshark HOD2 from the good cost performance. However, the selling price of this model is over $500.

At the moment, the two shops where you can buy it are Banggood and Geekbuying, where you can pre-order it. Shipping is in November, so if you pre-order as fast as you can, you can expect to have it in hand around the end of November.

It’s almost the same as the Fatshark HDO2 in terms of specifications, and the price is about the same when you have everything you need. It’s no longer a matter of which one you choose, so we think you can buy it according to your preferences. I mean, they seem to be exactly the same except for the receiver. The DVR is “H264, 30fps, MOV 6Mbps“, so this one is no different from Fatshark HDO2.

There is no difference in terms of specs and price, so I think it’s now a matter of preference as to which one to choose. The key to the SKYZONE SKY04X OLED is that we don’t have an actual device review yet, so we don’t know the performance of the receiver. It’s up to you guys to decide if you want to buy it with the initial lot.


Product Details

Features 1. SteadyView Receiver
2. Focus Adjustment
3. OELD Screen
4. Advanced Screen Settings
5. Shuttle Wheel Control
6. New User Interface with 10 languages
Specification Brand: SKYZONE
Model: SKY04X
Item: 5.8GHz 48CH Steadyview Receiver 1280X960 FPV Goggles
Screen: OLED
Resolution: 1280X960
FOV (Diagonal): 46°
AspectRatio: 4:3/16:9
Focus: -6~+6 adjustable
Interpupillary distance(IPD): 58-71mm
Receiver: 5.8Ghz 48CH Steadyview Receiver
Language: 10 Language
Power Supply: DC6.5-25.2V/USB5V
PowerConsumption: 720mAat12V
DVR: H264, 30fps, MOV6Mbps, SD Card support up to128Gb
Head Tracker: 3-axis Accelerometer, 3-axisgyroscope
Dimentions: 185*75*67mm
Weight: 267g
