SPCMaker Bat78 HD

SPCMaker Bat78 HD
Brand: Other
Category: Drones
  • 1: CPU: STM32F411CEU6
  • 2: Blackbox: 8M Flash Winbond
  • 3: Firmware: Betaflight SPCMAKERF411
  • 4: Input Voltage: 2-4S Lipo
  • 5: Burst Current: 40A
  • 6: 1103 11000KV Brushless Motor

SPCMaker Bat78 HD - Price

SPCMaker Bat78 HD - Specs

Product Details

  • Features
    Brand Name: SPCMaker
    CPU: STM32F411CEU6 ( 100MHZ)
    IMU: MPU6000 (SPI)
    OSD: AT7456E
    Blackbox: 8M Flash Winbond
    Firmware: Betaflight SPCMAKERF411 ( SPCM)
    Size: 31.4x31.4mm
    Mounting Hole: 25.5x25.5mm
    Weight: 7g
  • Specification
    Brand Name: SPCMaker
    Model: Bat78 HD
    Item Name: 78mm F4 OSD 2-3S FPV Racing Drone w/ 1080P Record
    Drone Wheelbase: 78mm
    Weight: 55g
  • Package content
    1x SPCMaker Bat78 HD 78mm FPV Racing Drone
    1x Anti-slipping Sponge for Lipo Battery
    1x LED with Buzzer

Our Rating

The overall rating is based on review by our experts

7.8 3.9 1
  • Design 7 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 7 / 10

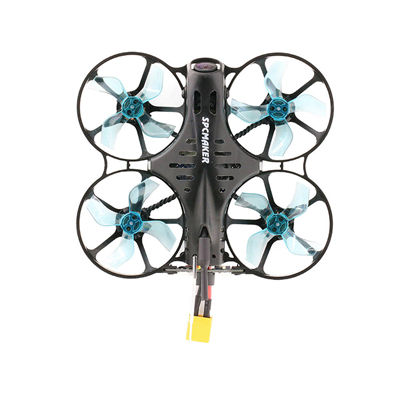

SPCMaker Bat78 HD 78mm F4 OSD 2-3S Whoop FPV Racing Drone

The manufacturer SPCmaker joins its competitors to expand its catalog with a new Cinewhoop model, the Bat78 HD. The electronics are based on a component combining a flight controller and an ESC. The flight controller is based on an F4 processor with an active OSD, flashed with betaflight. The ESC is a 4 in 1 of 25A Dshot600. The whole drives 1103 to 11000KV brushless motors for Gemfan 1636 quadruple propellers.

It is provided by a RunCam Split 3 Nano hybrid camera, which films in 1920 x 1080 pixels at 60 fps on a microSD memory card on board the device. It is coupled with an FPV camera intended to provide real-time video feedback for piloting in immersion. The video transmitter is a 5.8 GHz model compatible with 40 channels, adjustable to a power of 25 mW (the maximum authorized in France), 100 mW, 200 mW or 400 mW, with a dipole antenna. The equipment is completed by an LED and a buzzer. The whole thing weighs 55 grams.

To power the Bat78 HD, SPCmaker recommends a 2S battery from 500 to 650 mAh, or a 3S from 300 mAh, with an XT30 socket. The device will be available without radio receiver, or equipped with an AC900, DSM2 / DSMX, Flysky RX2A or FrSky XM + receiver. The price? The Bat78 HD will be offered from $185.99 at Banggood.
