T-bao MN22

T-bao MN22

Brand: T-bao
Category: Mini PC
  • 1: AMD Ryzen R3 2200U 2.5GHZ Quad Core
  • 2: Vega 3 Graphic
  • 3: 16GB DDR4 RAM 8+8 Dual Channel
  • 4: 512GB NVME SSD ROM
  • 5: HDMI + DP Dual Output Expands Your Viewing Options

Our Rating

The overall rating is based on review by our experts

9.8
  • Design 9 / 10
  • Features 10 / 10
  • Performance 10 / 10
  • Connectivity 10 / 10

T-Bao TBOOK MN22 MINI PC With AMD Ryzen3 2200U

T-bao, a company that produces a lot of notebooks, has introduced the TBOOK MN25, which is probably its first mini-PC. Its main feature is the AMD Ryzen 5 2500U CPU and RadeonTM Vega 8 GPU. However, the main character I introduced today is its younger brother, another Mini PC with a slightly lower configuration, called: T-bao MN22.

Aside from the AMD Ryzen 3 2200U CPU and Vega 3 Graphic GPU, it also features a PCIe / NVME-compatible SSD, which is faster than SATA. We compared Geekbench 5 scores to see what the AMD Ryzen 3 2200U and Radeon Vega 8, released in 2017, are capable of, which is a CPU benchmark.

In terms of single core scores, which are directly related to physical response, it’s the equivalent of the 7th generation Core i5-7200U. In multi-core, it has an advantage over the Core i5-7200U, partly due to the benefit of Vega 3. There are many articles on other sites comparing AMD Ryzen 3 2200U / Radeon Vega 8 to Core i5-8250U, but it’s not even close.

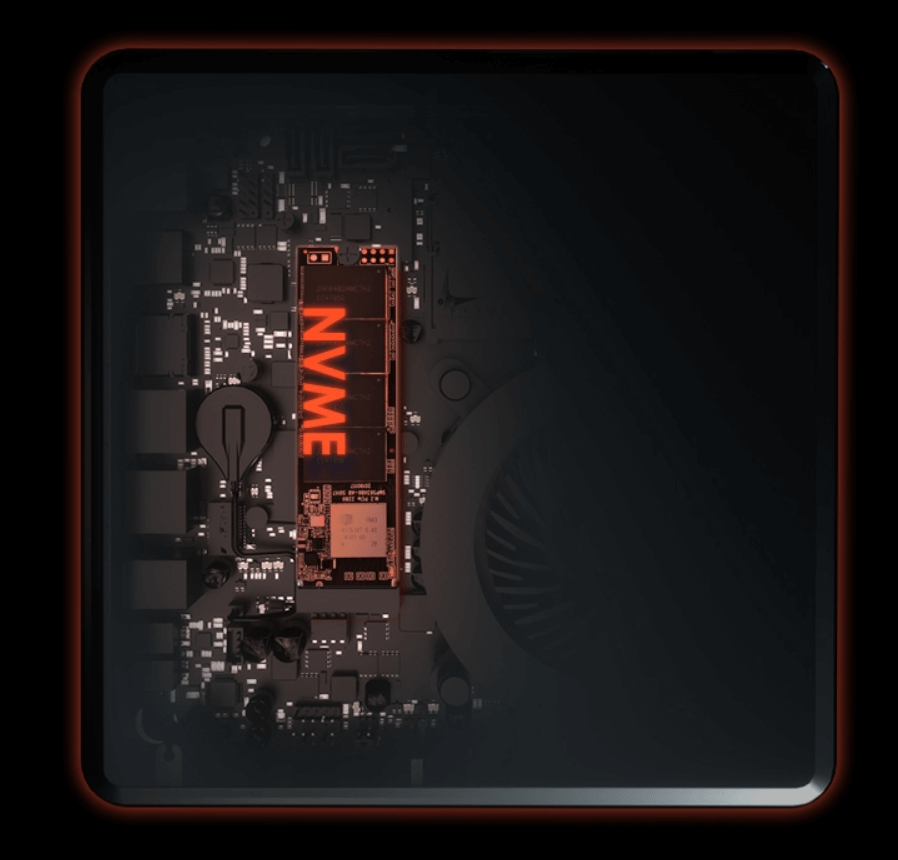

There’s an image showing that the SSD is PCIe / NVME compatible, but there’s no indication of whether it’s Gen.2 or Gen.3 compatible. It’s probably the former. In this case, it’s not as big of a difference in experience as SATA, but it’s enough of a difference in experience to make a vague difference when running Windows 10 or installing high-capacity apps.

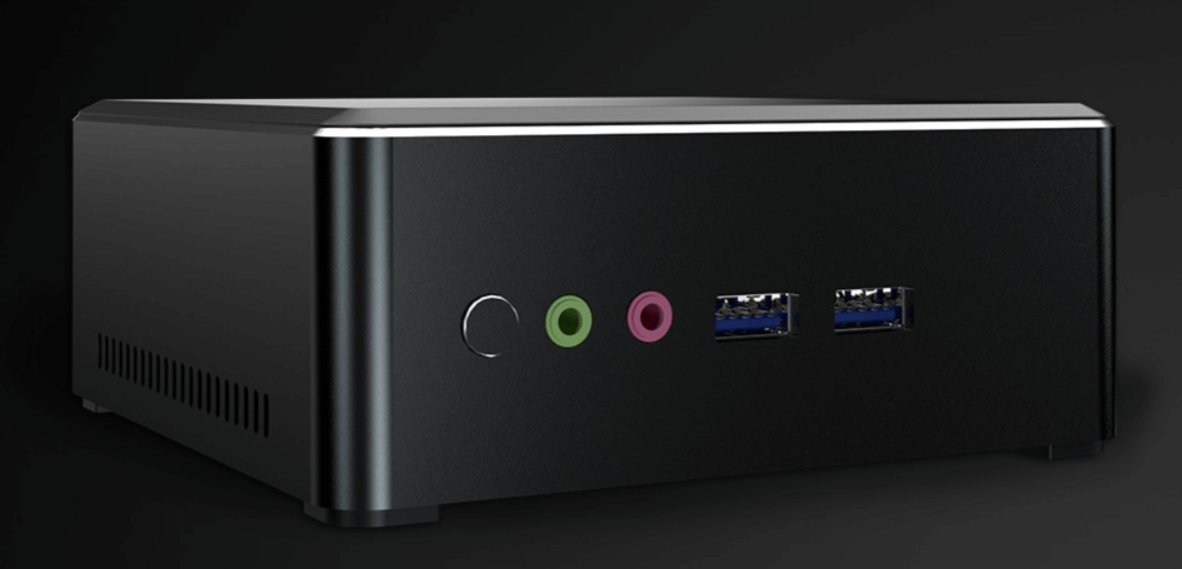

As with other mini-PCs, there’s an abundance of ports: four USB 3.0 x 4, two USB 2.0 x 2, HDMI, DP and wired LAN. There’s also a sense that there are a few slits for ventilation.

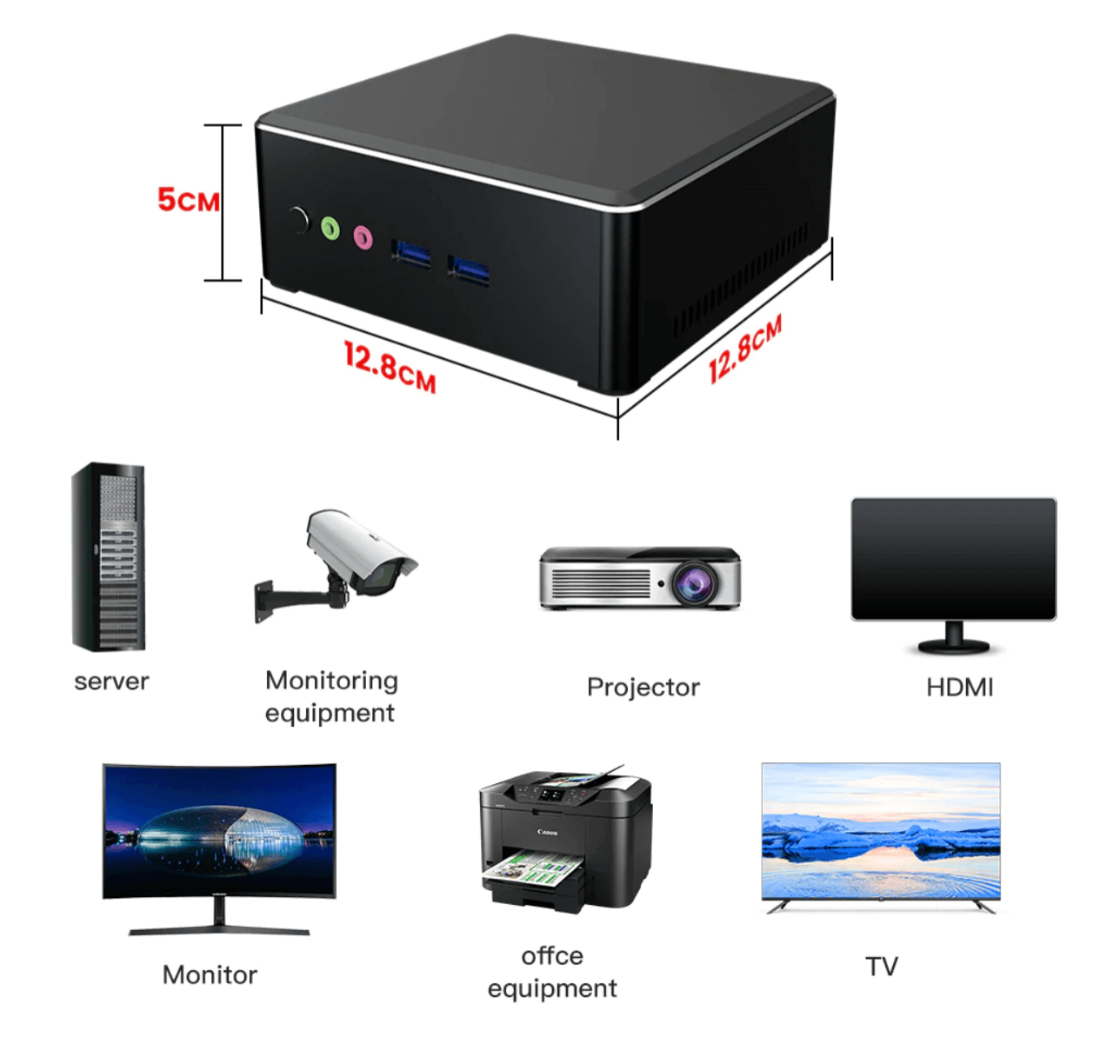

The 12.8cm square body is about the same as the BMAX B2 Plus below. It is a small part for a mini PC. There is no mention of the material of the body, but it is probably a combination of plastic and steel.

The T-bao MN22 is perfect for everyday use plus light gaming applications and as an entry-level machine for photo development and video editing! I’m especially glad I’m comfortable with the Adobe software! I’ve been using Lightroom CC and Premiere Pro with Galmax for years, so I’m pretty sure that’s what I’m talking about!

The Adobe software also works within the practical range for relatively light work, and while it has Windows 10, 8GB of memory and 256GB of SSD, the price at the time of writing is very attractive at $368.00.

Although there are parts that require some work, such as applying you own’s country language pack, the level of difficulty is not high, and I recommend the T-bao MN22 if you are looking for a high performance mini PC at a low price!

SPECS

Product Details

Features AMD Ryzen 3 2200U
Vega 3 Graphic GPU
16GB DDR4 RAM 8+8 Dual Channel
512GB NVME SSD ROM
HDMI + DP Dual Output Expands Your Viewing Options
Specification Brand: TBOOK
Type: MN22
Operating System: Windows 10
CPU: AMD Ryzen 3 2200U
RAM: 16GB DDR4(8 GB + 8GB Dual channel)
ROM: 512GB NVME SSD
SSD: Supports 2.5 inch SATA SSD x 1

Ethernet : Support RJ45 10/100/1000M
Wireless: WIFI 802.11 b/g/n/ac+BT 4.1

2*USB2.0
4*USB3.0
1*HDMI
1*DP
1*3.5mm standard headphone jack
 1*5.5MM power connector

Power Adapter: DC 19V/3.42A
Power Output: AC 100-240V 50/60Hz

Package weight: 1.2 kg
Product size (L x W x H): 12.8 x 12.8 x 5.0 cm
