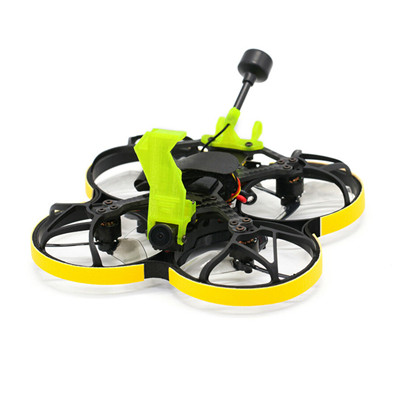

The manufacturer UrUAV offers a new Cinewhoop of the Pusher type, i.e. with downward-facing propellers. It measures 9.5 cm diagonal from engine to engine, with a carbon structure completed by propeller protections. Features that place it in front of the Beta95X V3 of BetaFPV. A foam surrounds these propeller protections to absorb shocks in case of hits. At the heart of the aircraft is a GePRC F4 AIO flight controller associated with an ESC 4 in 1 of 20A BLheli_S. The motors are brushless 1106 at 4500KV for 2.5 inch Gemfan D63 three-blade propellers.
The camera remains faithful to an analog video return: the camera is a Nano2 from RunCam, 1200TVL, coupled to a 40 channels 5.8 GHz analog video transmitter XF5805 compatible with a power adjustable to 25 mW (the maximum allowed in France), but also 100, 300 and 400 mW with SmartAudio support for settings. The antenna is a RHCP polarized connected with an Ipex connector. The battery is designed to be placed on top of the device. UrUAV recommends a Lipo 4S of 450 mAh with an XT30 connector, for an autonomy of 4 minutes.
The pre-installed radio receiver is an XM+ from FrSky. UrUAV provides support for a GoPro Naked camera. The equipment is completed by 4 LEDs on the back. The weight of the set is 94.6 grams. Other accessories are provided for the installation of a BetaFPV SMO 4K camera.
