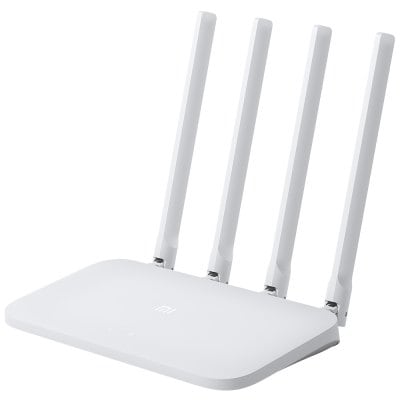

Xiaomi Mi 4C Wireless Router

Xiaomi Mi 4C Wireless Router

Brand: Xiaomi
Category: Smart Home
  • 1: CPU: MT7628DA
  • 2: RAM: 64MB DDR2
  • 3: 2.4G WiFi: 2X2 (Support IEEE 802.11n, 300Mbps max)
  • 4: Antenna: 4 PCS
  • 5: Heat Dissipating System: Natural heat dissipation

Our Rating

The overall rating is based on review by our experts

8.8
  • Design 9 / 10
  • Features 9 / 10
  • Battery 8 / 10
  • Performance 9 / 10

Xiaomi Mi 4C Wireless Router 2.4GHz / 300Mbps / Four Antennas

Xiaomi Mi 4C Wireless Router

This Xiaomi Mi 4C Wireless Router comes with 64MB of on board memory and alongside a smart APP management. Features 4 omni-directional antennas which is similar to the Mi Router 4. It supports for single-band (2.4GHz) Wi-Fi 802.11 b/g/n, 2X2 MIMO technology, and speeds of 300Mbps. It supports apps on Android, iOS, and Web.

Is your router ready?

On all sides, various companies talk about “fast and affordable Internet”, so 100-megabit routers and fiber-optic devices are already widely used. However, in our lives more and more are smart devices that also need access to the Internet. Following in the trend of technology development and speeding up the speed of ports, Xiaomi has launched a completely new Mi 4C Wireless Router.

Work faster than 100-megabit

The higher the speed of the ports, the more powerful the router is required. Xiaomi Mi WiFi Router 4C uses all the advantages of gigabit ports in both the home and the public network, providing a speed comparable to a fiber-optic connection.

Support for 802.11ac

One router can create a single network that simultaneously operates on two WiFi frequencies independently of each other and does not interfere with each other. The frequency 2.4 GHz is ideal for conditions with a lot of obstacles and long distance data transmission. The frequency of 5 GHz does not cause interference and provides a stable signal, as well as high speed and support for 802.11ac.

Effective data transfer

Xiaomi Mi WiFi Router 4C is equipped with four omni-directional antennas with high gain. Due to the precise measurements, the antennas are ideally optimized for internal filling of the router and provide the most efficient data transmission at the highest speed. And all this pleasure – without a single cliff.

MIOT protocol support for fast WiFi

Especially for intelligent devices Xiaomi and Mijia, a MiNET button was created, and the MIOT protocol itself was implemented in the router itself. When the first smart device is connected for the first time, it is enough just to press the MiNET button, and it will automatically connect to a single platform of smart Xiaomi devices.

Up to 128 connected devices

If your home has many smart devices, will they be able to influence the speed of Internet connection of a computer, smartphone or tablet? And in general, “a lot” – this is how much? Xiaomi Mi WiFi Router 4C can provide access to the network for 128 connected devices at the same time, so that even in a large Internet family there will be enough for everyone.

Powerful “iron” will not fail

Dual-core processor MT7621A with a frequency of 880 MHz provides a stable connection to the Internet further under high load. You can safely upload photos, watch videos and movies in high quality or participate in fierce battles with many other players, and Xiaomi Mi WiFi Router 4C allow you to do all this without worrying about sudden clipping or falling speed. 128 MB of FLASH-memory and 128 MB of RAM guarantee a stable connection to the network of multiple devices.

More features with Mi WiFi

In the Mi WiFi application, you can measure the connection speed, configure WiFi and make even more than a dozen useful actions in just a few clicks. Through the application you can manage smart devices, set speed limits, change connection settings and generally do everything the way you want. Download Mi WiFi application and find out about all the available functions.

Professional protection and guest access

You can at any time see the connected devices from your smartphone or computer and by pressing just one button you can prevent them from accessing the network. In addition, when a suspicious device is detected, the router will automatically notify the owner, and in just a second you can get rid of uninvited guests using the application. In Xiaomi Mi WiFi Router 4C, you can configure a white list of MAC addresses that will allow access to the network only to specified devices and no one else. In addition, the router can create a separate guest network for secure connection.

Effective cooling for stable operation

Specially for dissipating heat in the body of the router, a radiator plate made of aluminum-magnesium alloy is installed, covered with a special adhesive with high thermal conductivity. The bottom surface of the router is dotted with holes, which together with the holes on the rear end surface create air circulation and further increase the efficiency of the heat sink. Due to the complex solution, the heat generated by the elements of the structure is quickly removed from the outside of the hull of the router, guaranteeing it a long service life.

A minimalistic design fits into any interior

Housing of Xiaomi Mi WiFi Router 4C is made of polished white plastic without the use of paint or varnish. Its simple geometric shape easily fits into any interior.

SPECS

Product Details

Features ● 4 High-performance Antennas For Stronger Signals
The high-quality antennas help to offer a great resistance for the signal. It all starts with a dual-band design, where 2.4 GHz has a maximum signal strength of 5dBi. This creates a stronger and more reliable Wi-Fi, while the four high-gain antennas offer an extremely wide range of signals.

● 64 MB RAM
Built-in 64MB RAM, 8 times larger than normal router, has strong performance. The increasing number of connected devices produces valuable RAM strains. Xiaomi Router 4C has a RAM of 64 MB that allows up to 64 devices connected simultaneously all full Wi-Fi speeds.

● The Mainstream Of 2.4GHz Intelligent Routers
3 times faster than traditional wireless routers, support the latest IEEE 802.11n protocol, transmission rate up to 300Mbps.

● APP Intelligent Management
An intelligent home controller center to operate all the smart home appliances.

● Mini Size, Stylish Appearance
7 sets of protection, more secure router, to protect your exclusive WiFi zone and etc. Creative, direct and swift connection.
Specification Brand: Xiaomi
Type: Router
Color: White
CPU: MT7628DA
ROM: 16MB NorFlash
RAM: 64MB DDR2
2.4G WiFi: 2X2 (Support IEEE 802.11n, 300Mbps max)
Antenna: 4 PCS
Heat Dissipating System: Natural heat dissipation
Material: ABS
Lan Port: 2 (10/100 Auto MDI/MDIX)
WAN Port : 1 (10/100 Auto MDI/MDIX)
LED Indicators: 3 (Red/Blue/Yellow)
Button: 1 x Reset button
DC Input: 1
WiFi Band: 2.4GHz
Wireless Channels: 2.4GHz Channel: 1,2,3,4,5,6,7,8,9,10,11,12,13
Modulation Mode:
11b:DSSS:DBPSK(1Mbps),DQPSK(2Mbps),
CCK(5.5/11Mbps)
11g:OFDM:BPSK(6/9Mbps),
QPSK(12/18Mbps),16QAM(24/36Mbps),
64QAM(48/54Mbps)
11n:MIMO-OFDM:BPSK,QPSK,16QAM,64QAM
11Mbps:≤-90dBm,54 Mbps:≤-72dBm,
HT20 MCS7:≤-69dBm,
HT40 MCS7:≤-66dBm

Operating System: MiWiFi ROM (Based on OpenWRT)
Language: The original system of this product is with Chinese and you can change the language through the official APP.

Wireless Security: WPA-PSK/WPA2-PSK encryption, Wireless access control (black and white list), SSID hiding, Intelligent anti rub network, wireless intrusion detection, password brute force crack detection, management background access control, access to SSID isolation

Management Application: Support Web, Android, iOS
Protocol Standards: IEEE 802.11b/g/n, IEEE 802.3/3u
Approval Standards: GB9254-2008 YD/T993-1998 GB4943.1-2011
Working Environment: Operating Temperature: 0-40°C

Working Humidity: 10%-90%RH
Storage Temperature : -40-70°C
Storage Humidity: 5%-90%RH
Power: 5W

Package weight: 0.5600 kg
Package size: 36.50 x 22.20 x 4.50 cm / 14.37 x 8.74 x 1.77 inches
