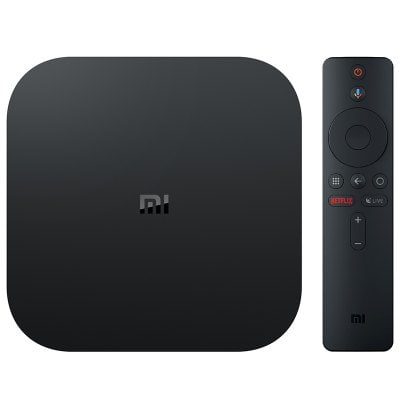

Xiaomi Mi Box S

Xiaomi Mi Box S
Brand: Xiaomi
Category: TV Box
  • 1: CPU: Cortex A53
  • 2: RAM: 2G ROM: 8G
  • 3: System: Android 8.1
  • 4: Bluetooth:
  • 5: 2.4GHz + 5.8GHz dual band WiFi
  • 6: Mali 450 GPU

Xiaomi Mi Box S - Specs

Product Details

  • Features
    - Android 8.1 operation system
    - Cortex A53 CPU, quad core
    - Mali 450 GPU
    - 2.4GHz + 5.8GHz dual band WiFi
    - 2GB RAM + 8GB ROM
  • Specification
    Brand: Xiaomi
    Model: Mi BOX S
    Type: TV Box
    GPU: Mali-450
    System: Android 8.1
    CPU: Cortex A53
    Core: Quad Core
    RAM: 2G
    RAM Type: DDR3
    ROM: 8G
    Max. Extended Capacity: 64G
    TV Box Features: 5G WiFi,Portable

    Decoder Format: H.263,H.264,H.265,HD MPEG4
    Video format: 3GP,4K,DIVX,H.264,H.265,M4V,MKV,MP4,MPEG2,MPEG4,RM,RMVB,VC-1,VOB,WMV
    Photo Format: BMP,GIF,JPEG,TIFF
    Support 5.1 Surround Sound Output: Yes

    5G WiFi: Yes
    Bluetooth: Bluetooth 4.2
    Power Supply: Charge Adapter
    Interface: AV,DC Power Port,HDMI,USB2.0
    Antenna: No
    Language: Multi-language
    HDMI Version: 2.0
    Other Functions: 3D Games,3D Video,DLNA,ISO Files,Miracast,NTSC,PAL
    External Subtitle Supported: No
    HDMI Function: HDCP
    Power Consumption.: 2W
    RJ45 Port Speed: 1000Mbps

    System Bit: 64Bit

    Power Type: External Power Adapter Mode

    Remote Controller Battery: 2 x AA Battery ( not included )

    Product weight: 0.3000 kg
    Package weight: 0.5400 kg
    Product size (L x W x H): 9.52 x 9.52 x 1.68 cm / 3.75 x 3.75 x 0.66 inches
    Package size (L x W x H): 20.00 x 20.00 x 10.00 cm / 7.87 x 7.87 x 3.94 inches
  • Package content
    1 x Xiaomi Mi Android TV Box
    1 x Remote Control
    1 x Power Adapter

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

Xiaomi Mi Box S 4K HDR Android TV BOX with Google Assistant Remote

Again something new from Xiaomi, which is actually not that new. The Xiaomi Mi TV Box S is based on the Xiaomi Mi Box 3, but offers a few advanced features. These could be quite interesting for one or the other.

We can not understand the sometimes euphoric coverage of the new Xiaomi Mi Box S, which is popping up everywhere in the English and German-speaking world. For the new Mi TV Box S is as mentioned above again only a product variation of Xiaomi, which is nothing more than a modified Xiaomi Mi Box 3 in the heart. A gadget, which the manufacturer already presented in May 2016.

The Xiaomi Mi Box S itself brings little advantage over the Xiaomi Mi Box 3, only the Bluetooth standard has been changed from version 4.1 to version 4.2. Otherwise, here is a Cortex A53 CPU, installed with a clock of up to 2 GHz and a Mali 450 GPU.

The memory is further composed of 2 GB of DDR3 RAM and 8 GB of eMMC internal memory. In 2016, this was pretty solid, today I would say that the storage standards are almost outdated. However, the things the box is meant for are still enough.

Also with the connections there are no innovations. There is an HDMI 2.0a interface, a USB-A 2.0 port and a 3.5 mm jack connection available. In your comments to our review of the Xiaomi Mi Box 3, many CG users had wished for an Ethernet port, unfortunately this was not realized in the Xiaomi Mi Box S. Even fast data transfer via USB-A 3.0 remains denied to us, instead simply the old USB 2.0 standard was adopted.

In addition to the already mentioned upgrade to Bluetooth 4.2, the second wireless connection is of course 802.11 a / b / g / n / ac dual-band WiFi. As with the Xiaomi Mi Box 3, the hardware for 4K image playback is 60 FPS with HDR enabled. In the area of ​​the sound the Dolby standards DTS HD and Dolby True HD are supported. An update to more current formats, such as Dolby Atmos or DTS: X, but there is apparently not a pity!

Actually, there is only one big difference to the Xiaomi Mi Box 3, the Mi Box S supports the Google Assistant and can be part of your Smart Homes! This was in the included remote control, similar to what it may already know from the Amazon Fire TV, a microphone installed.

With the corresponding button on the remote control not only the Mi Box S can be operated with voice commands, but also other smart home gadgets. In addition, the Mi Box S is delivered “out-of-the-box” with Android TV 8.1. On the Mi Box 3, however, Android TV 6.0 is pre-installed, but Android TV 8.1 is available as an update.

In addition, the design has been revised, with the dimensions of 95.25 x 95.25 x 16.7 mm and a weight of 147 g , it is smaller and lighter. In addition, the new 4K TV box edged, while the Mi Box 3 had a very round design.

The Xiaomi Mi Box S was introduced to Google Pixel 3 yesterday as part of the Google Keynote. In the US, the box is already available from 19 October at the American retailer “Walmart”.

The Xiaomi Mi Box S is therefore less a new product, but rather a version of the Xiaomi Mi Box 3 optimized for the American market. This was created in collaboration with Google and is distributed by Walmart. In my opinion, the Xiaomi Mi Box S is not worth it, as long as you already own the Mi Box 3.

Currently, there is no information regarding how much the novelty will cost. However, experts believe that the price of the device will be about 60-80 dollars, that is how much the current version of the gadget is worth. It is noted that if users already have a TV box Mi Box 3, then they do not make sense to purchase a new device.
