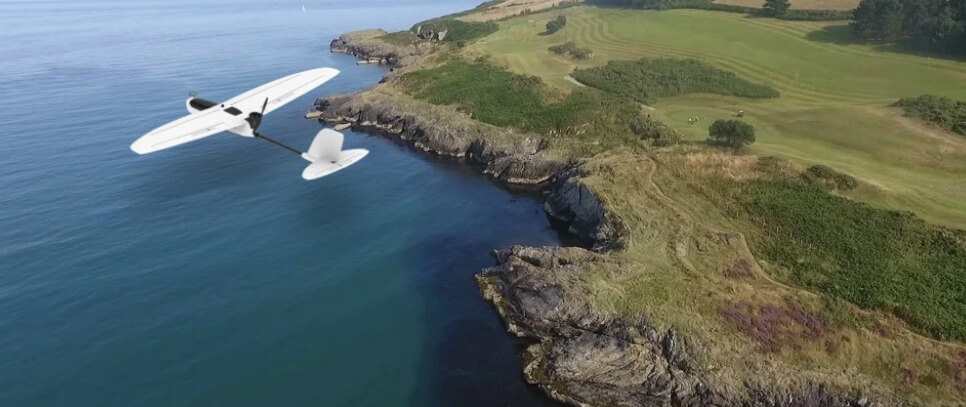

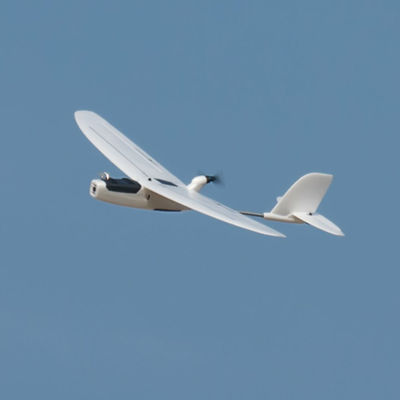

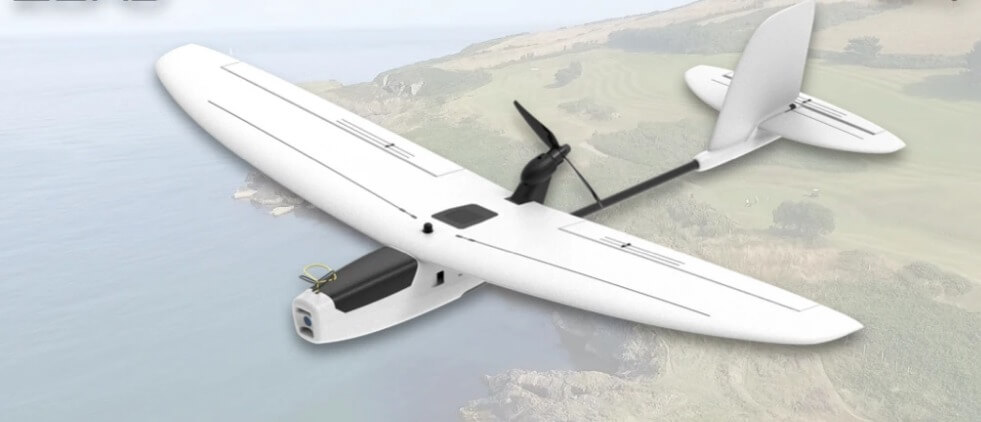

ZOHD Drift 877mm Wingspan FPV Glider AIO EPP RC Airplane KIT/PNP/FPV Version

The Drift of ZOHD is a rather classic radio-controlled motorglider, controllable on 2 axes (depth, ailerons), with a wingspan of 87.7 cm and a length of 68.8 cm. Its motor is a brushless 1406 at 2600KV for a two-bladed (2S) or three-bladed (3S) 5-inch propeller, piloted by a 30A ESC. The stabilizer and ailerons are driven by servos of 4.3 and 8g. There are several versions, including a do-it-yourself version, a pre-assembled version and, probably the most interesting, an FPV version. The fuselage contains the on-board mechanics and electronics: the ESC, a ZOHD Kopilot Lite flight controller, and an FPV camera, the ZOHD VC400 AIO.

The VC400 AIO camera is a compact element composed of a FPV 600TVL camera associated with a 5.8 GHz video transmitter compatible with 40 channels and capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 200 mW or 400 mW to go further (where allowed). It allows for submersion flights: the camera is at the front of the unit, embedded in the EPP – but with 2 slots for ventilation. The antenna is a small polarized antenna attached to the camera and transmitter unit. It indicates in OSD the basic information (frequency, transmission power, power supply voltage, power supply time and callsign).

The FPV version of the Drift is delivered with the Kopilot Lite flight controller. Despite its qualification as a Lite, it is capable of stabilizing the aircraft to facilitate flights. This flying aid can be deactivated – and reactivated – in flight to take better advantage of the aircraft and push it a little further. It is also equipped with a GPS that offers an automatic return to the starting point (RTH) function and a geo-barrier to prevent the aircraft from going too far. There is no need to use a Windows PC or Mac to set up the flight controller. Obviously, its functions are more limited than those of a controller flashed with Inav or other advanced firmware.

The wings and tail, made of EPP reinforced with spars, are detachable for easy transport. A radio receiver has to be added to the Drift to take off, as well as a battery. ZOHD recommends a Lipo 2S from 900 to 1500 mAh, or a 3S from 800 to 1100 mAh.To stay below 250 grams, ZOHD indicates that you should limit yourself to 800 mAh in 3S. The Drift FPV is a motorglider for beginners, with the help of the disengageable flight controller, perfect for fun, stress-free, immersed flights.

SPECS

Product Details

Features - Super easy to hand launch and slow fly, agile and accurate in control.

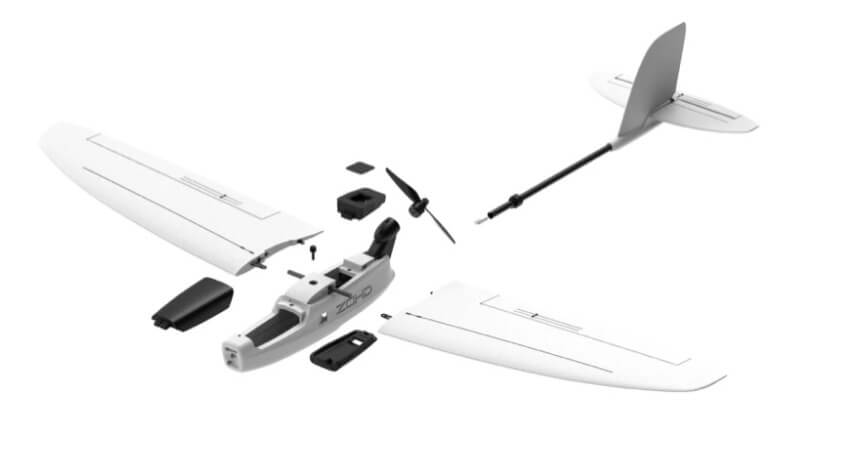

- Detachable main wing and tail boom, glue-free assembly, portable for outdoor flying.
- Durable EPP material, built-in CF spar for enhancement, crash resistant.
- Being light-weight will be safe to fly anywhere, anytime. You’re avoiding the hassle of an FPV registration.
- Large battery bay for extended flight time.
- Nose camera bay compatible with all FPV and AIO cameras in the market.
- Special designed H-girder for main wing, makes it super solid and tough.
- Built-in CF strip inside fuselage for extra enhancement.
- Built-in CF rod in the ailerons will give precision and sharp action to your inputs.
- Dedicated equipment bay for FPV Camera, Flight Controller (ZOHD Kopilot Lite) and GPS.
- Optimized air-cooling design will keep your gear safe from overheating
Specification Brand Name: ZOHD
Item Name: DRIFT
Material: High Quality EPP
Wingspan: 877mm (34.52'')
Length: 688mm (27.08'')
Version: KIT, PNP, FPV Version (optional)
KIT Empty Weight: 113g
PNP Empty Weight: 162g
FPV READY Empty Weight: 185g

Recommended 2S Configuration:
Motor: 1406-2600KV
ESC: 30A w/5V 2A BEC
Servos: 4.3g*2, 8g*1
Propeller: 2 blade 5x5
Recommended Battery: Lipo 2S 900-1500mAh
ZOHD Lionpack 18650 2S1P 3500mAh
For Sub250g Configuration: PNP+Lipo 2S 900mAh battery+Kopilot Lite+VC400 Camera

Recommended 3S Configuration:
Motor: 1406-2600KV
ESC: 30A w/5V 2A BEC
Servos: 4.3g*2, 8g*1
Propeller: 3 blade 3x5x3
Battery: Lipo 3S 800-1100mAh
For Sub250g Configuration: PNP+Lipo 3S 800mAh battery+Kopilot Lite+VC400 Camera
