Brand: Asus
Category: Mini PC
  • Feature 1: Intel Core i5-8265U
  • Feature 2: Intel UHD Graphics 620
  • Feature 3: USB 3.1 Gen 2 Type-C
  • Feature 4: Expandable 2.5 inch HDD
  • Feature 5: Support 4K video display
  • Feature 6: 1000Mbps / BT4.0

ASUS PN61 - Specs

Product Details

  • Features
    ● Intel Core i5-8265U
    ● Intel HD Graphics 620 GPU
    ● Support 1TB or 2.5 inch HDD
    ● Support 64 / 128 / 256 / 512GB
    ● Support H.265 decoding, saving bandwidth
    ● Support 4K video display
    ● 1000Mbps Ethernet, fast network access
    ● 2.4GHz WiFi
  • Specification
    Brand: ASUS PN61
    Model: FMP04 i5 8265U
    Type: Mini PC
    System: Linux,Windows 10,Windows 8
    CPU: Core i5 7200U
    Core: Dual Core
    GPU: Intel HD Graphics 620
    RAM Type: DDR4
    Maximum External Hard Drives Capacity: 1TB

    5G WiFi: No
    Bluetooth: Bluetooth4.0
    Power Supply: Charge Adapter
    Interface: COM,DC Power Port,HDMI,RJ45,USB2.0,USB3.0,VGA
    Antenna: Yes
    Camera: Without
    Language: Multi-language
    DVD Support: Yes
    HDMI Version: 2.0
    Other Functions: 3D Games,3D Video,Airplay,DLNA,ISO Files,Miracast,NTSC,PAL
    External Subtitle Supported: Yes
    HDMI Function: CEC,HDCP,HEC
    Power Consumption.: 12W
    RJ45 Port Speed: 1000Mbps
  • Package content
    1 x ASUS PN61 Mini PC
    2 x WiFi Antenna
    1 x Power Adapter
    1 x Power Cord
    1 x Bag of Screws
    1 x English User Manual

Our Rating

The overall rating is based on review by our experts

9.0 4.5 1
  • Design 9 / 10
  • Features 10 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

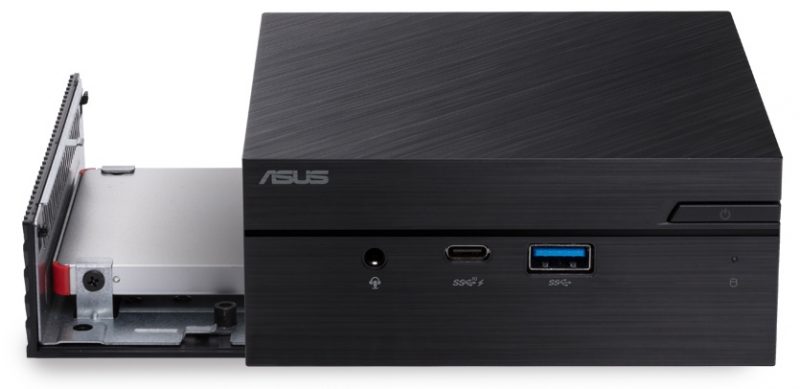

For demanding users who need a relatively powerful system in a compact form factor, ASUS has released a new Mini PC model called ASUS PN61. It measures only 115 x 115 x 49 mm and weighs 0.7 kg. The new product is powered by an external adapter with a power of 65 or 90 watts. The delivery set optionally includes a keyboard and mouse. The price of the new ASUS PN61 is not reported.


Inside the new product is a processor Intel Core i5-8265U (4 / 8 x 1.6 – 3.9 GHz) or Intel Core i7-8565U (4 / 8 x 1.8 – 4.6 GHz). And the Intel UHD Graphics 620 Video Core is responsible for processing graphics, so don’t count on high gaming capabilities. DDR4-2400 RAM capacity can range from 2 to 32 GB. Two SO-DIMM slots are provided for it. The disk subsystem can include a 2.5-inch HDD with a capacity of 500 GB / 1 TB and / or M.2 SSD of 128 / 256 GB.


Networking capabilities in ASUS PN61 are provided by Intel’s Gigabit LAN controller and 802.11a/b/g/n/ac Wi-Fi + Bluetooth 5.0 wireless interface module. USB 3.1 Gen 2 Type-C, USB 3.1 Gen 1 and 3.5mm audio ports are located on the front panel of the case. The main part of external interfaces is on the back side: 2 x USB 3.1 Gen 1, USB 3.1 Gen 1-C, HDMI, RJ45, DC-In and one port, which depends on the configuration (COM, VGA, Display Port, HDMI, LAN, Thunderbolt 3).
