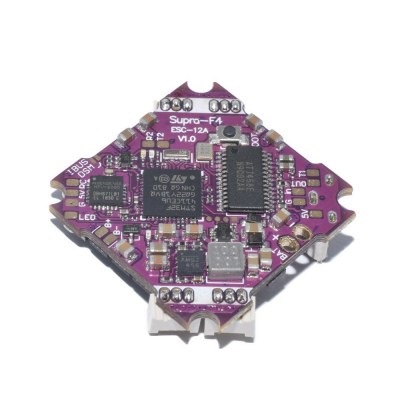

AuroraRC Supra-F4-12A

AuroraRC Supra-F4-12A
Brand: Other
Category: Drones
  • Feature 1: Include Buzzer pad
  • Feature 2: MPU6000 Gyroscope
  • Feature 3: F411 Flight Controller
  • Feature 4: Silica gel anti-vibration balls
  • Feature 5: Solve the problem of vibration
  • Feature 6: Installing Hole: 25.5×25.5mm, M2

AuroraRC Supra-F4-12A - Price

AuroraRC Supra-F4-12A - Specs

Product Details

  • Features
    - Silica gel anti-vibration balls, solve the problem of vibration
    - F411 Flight Controller
    - MPU6000 Gyroscope
    - Include Buzzer pad
  • Specification
    Brand Name: AuroraRC
    Model: Supra-F4-12A
    Item Name: F411 F4 Flight Controller AIO OSD BEC Built-in 12A 2-4S 4in1 ESC
    MCU: STM32F411
    IMU: MPU6000 gyroscope/accelerometer (SPI)
    OSD: BetaFlight OSD w/ AT7456E chip
    Barometer:NO
    BEC Output: 5V@1A
    Integrated LC Filter
    Firmware target: MATEKF411
    ESC MCU: BB21F16G
    Continuous current: 12A
    Input:2-4s lipo
    Supports Dshot600 ,Oneshot,Multishot
    Current meter: 210
    Target: G_H_30
    Size: 28.5×28.5mm board,25.5mm mounting holes (M2)
    Installing Hole: 25.5×25.5mm, M2
    Weight: 5.6g
  • Package content
    1 x F4 Flight Controller Board Built-in ESC
    2 x 20AWG cable
    1 x AMASS XT30 Plug
    4x Soft Silicone Balls

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 9 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

AuroraRC Supra-F4-12A V1.0 F411 F4 Flight Controller AIO OSD BEC Built-in 12A 2-4S 4in1 ESC for RC Drone

The Tinywhoop are slowly moving up a gear: they are getting 4S batteries. Of course, electronics must follow the movement, including ESC. There were already the F411 Mini 4S from GEPRC, the F4 Whoop FC 2-4S from SucceX and the F4 2-4S AIO from BetaFPV, compatible with 4S.

Now here is the AuroraRC Supra-F4-12A. It is a 2.85 x 2.85 cm component for 5.6 grams based on an F4 processor. It is flashed with Betaflight and includes an active OSD. It is coupled with a 4 in 1 ESC of 12A for brushless motors, compatible with BLheli_S and Dshot600. The Supra-F4 is equipped with a current sensor and can be used to weld a buzzer. All this can be powered by 4S batteries and an XT30 connector. The price? It will be offered at $39.59 at Banggood Store.
