Eachine LAL 5style

Eachine LAL 5style

Brand: Eachine
Category: Drones
  • 1: Wheelbase: 225mm
  • 2: Bottom plate: 2mm
  • 3: Upper plate: 2mm
  • 4: Arm plate: 5mm
  • 5: X plate: 2mm

Our Rating

The overall rating is based on review by our experts

8.3
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

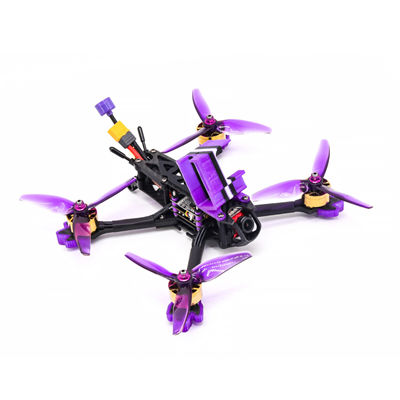

Eachine LAL 5style 220mm 6S Freestyle 5 Inch FPV Racing Drone

The manufacturer Eachine is developing the LAL range with the 5style. The carbon X structure measures 22.5 cm diagonally from motor to motor, with arms 5 mm thick. The motors are brushless 2307 to 1850KV, a little less powerful than those of the LAL5 6S. Eachine supplies Racerstar 5 inch 5046 three-bladed propellers. The whole is powered by a 4A 1 ESC of 50A BLheli_32 Dshot600. The flight controller is an LAL-F405, the same as on the LAL5. It is flashed with Betaflight, with a Bluetooth module to access wireless settings via the SpeedyBee smartphone app.

The camera is a Caddx Ratel, a 1200TVL with a 2.1 mm lens for a 180° FOV, with WDR support. It is associated with a 5.8 GHz TX805 video transmitter compatible with 40 channels, capable of transmitting at 25 mW, 200 mW, 600 mW and 800 mW. It supports SmartAudio for settings taking advantage of the OSD, and the antenna connector is in MMCX format. The LAL 5style can be delivered without a radio receiver, or with an XM + or R-XSR receiver from FrSky. Support is provided for a GoPro 6/7/8 or a 5 Session, but it is not supplied with the device, it must be purchased separately. The weight, without battery (but with GoPro support), is 395 grams.

Besides the fact that it is delivered pre-assembled, it is its price! This racer in 6S is available from $189.0 at Banggood, with availability scheduled for June 8, 2020.

SPECS

Product Details

Features 1. The LAL series comes with a new 5style fpv racing drone.
2. It means 5 Inch freestyle fpv racing drone reached a new level of cost-effective and appearance.
3. Made with more TPU protection parts , smooth power system and more different receiver version to convenient your selection. PNP and BNF version has ready and you will love flying it.
Specification  Brand name: Eachine
Item name: LAL 5style
 Drone weight: 395.20g (Without Battery)
Mode: 2307
KV: 1850
Idle current (IO/10V): 1.1A
No.of Cells(Lipo): 3-6S
Peak current: 40A
Max. power: 960W
Max. thrust: 1427g (6S/5″)
Configu-ration:12N14P
Internal Resistance(Rm): 0.0792Ω
Stator diameter: 23mm
Stator thickness: 7mm
Motor diameter: 28.5mm
Motor length: 19.7mm
 Shaft length: 34.2mm
Shaft diameter: φ5mm
Motor mount hole size: M3
Install hole distance: 16*16mm
Recommend propeller: 5-7 Inch
Weight: 36g
