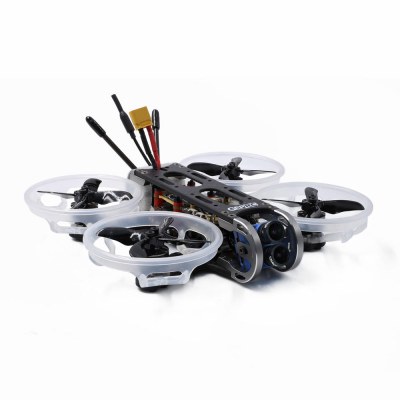

GEPRC CinePro 4K Advanced Version

GEPRC CinePro 4K Advanced Version
Brand: Other
Category: Drones
  • 1: Model:STABLE PRO F7 35A
  • 2: MCU: STM32F722RET6
  • 3: IMU: 2x ICM20689(SPI)
  • 4: BlackBox: 32Mb onboard Flash
  • 5: Firmware target: EXF722DUAL
  • 6: Input voltage: 5V

GEPRC CinePro 4K Advanced Version - Specs

Product Details

  • Features
    HD Video Recording: 4K@30fps, 2.7K@60fps, 1080P@90fps.
    Dual Camera System: 1200TVL FPV camera of competition-level, low latency within 10ms.
    WIFI/APP support: Video recording parameters are adjustable by WIFI/APP.
    Advanced Version: F722 Flight Controller, STABLE PRO F722 DUAL BL32 35A.
    Black Box: 32Mb onboard flash memory.
    500mW VTX Power: Effectively improves your flight distance.
    Aerial Photography Friendly: No sight of propellers and propeller protection frames in your video.
    Full Soft Mounted FC System: Provides a clean operating environment for gyro.
    Say Goodbye to Jelly: Stable video, and comfortable FOV.
    Improved GEP-CX2 Frame: Full 3K carbon fiber, 7075 aviation aluminum, High-pre cision CNC. Rugged and durable frame, Better protection for the 4K camera.
    New Propeller Guard: Better airflow, Higher flight efficiency.
    High Efficiency Motor: GEP-GR1105 5000KV Motors, 4S battery (450-650mAh) recommended.
    Taillight Design: Eye-catching night view and lighting effects.
    Exquisite Assembly Process: Eliminate any potential installation problems.
  • Specification
    Frame: GEP-CX2(Improved version,Including Guards)
    STABLE PRO F722 DUAL Gyro ICM20689
    Camera: Caddx Tarsier 4K 1200TVL
    Motor: GEP-GR1105 5000KV(4S lipo battery is Best)
    Propeller: EMAX AVAN 2Inch or DalProp Q2035 4-blade
    VTX 5.8G 500mW
    Weight: Around 125g(without battery)
  • Package content
    1 x CinePro 4K Advanced Version F722 FC FPV Racing Drone (PNP/BNF Optional)
    1 x EMAX AVAN 2inch PROP(SET)
    1 x DalProp Q2035 4-blade(SET)

Our Rating

The overall rating is based on review by our experts

8.3 4.2 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 8 / 10
  • Connectivity 8 / 10

GEPRC CinePro 4K HD 3-4S FPV Racing Drone Advanced Version PNP/BNF F722 FC DUAL Gyro ICM20689 Camera

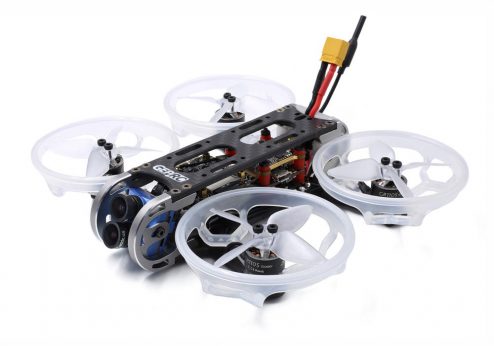

The Cinewhoop family is growing. Introducing GePRC’s CinePro 4K, a device with features slightly above those of its competitors. The structure is quite classic, made of carbon with plastic propeller guards and aluminium camera guards. Inside, there is the Caddx Tarsier camera, a hybrid model that allows you to enjoy both 1200TVL analog video feedback and 4K recording at 30 frames per second (or 2.7K at 60 fps). Enough to film beautiful images. But to do this, you need a very stable device to avoid vibrations.

The flight controller is based on a latest generation processor, an F7! Isn’t that a little disproportionate for a nano racer type device? It’s hard to say until he’s available for testing. It is conceivable that the additional computing power will allow for more flexible flights, or perhaps more efficient stabilization. The controller is flashed under Betaflight, with an active OSD.

The propulsion part is provided by 1105 to 5000KV brushless motors driven by a 4 in 1 35A ESC capable of supporting 4S batteries. The propellers are 2-inch quadruple Emax Avan blades, supplemented by a set of Q2035 quadruple Dalprop blades – it will be interesting to check which ones produce the least parasitic vibrations. The video transmitter is a 5.8 GHz model with 48 channels capable of transmitting at 0 mW (pitmode), 25 mW, 100 mW, 200 mW, 400 mW and even 500 mW !

GePRC recommends 450 to 650 mAh 4S batteries with an XT30 connector to power the CinePro 4K. It will be offered from $270.00 at Banggood (without port, without taxes) without radio receiver. You can also choose a pre-installed FrSky XM+ or R-XSR receiver.
