HGLRC Toothpick 3” Parrot132

HGLRC Toothpick 3” Parrot132

Brand: Other
Category: Drones
  • 1: Horizontal Resolution:1200 TVL
  • 2: TV System:NTSC / PAL option
  • 3: IMAGE:16:9
  • 4: Electronic Shutter:PAL: 1/50-100,000
  • 5: NTSC: 1/60-100,000

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

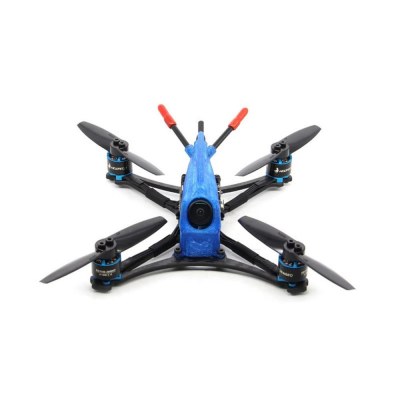

HGLRC Toothpick 3” Parrot132 micro 4S FPV Racing Drone

Some nano racers follow one another and look very similar. The HGLRC Parrot132, like its predecessor the Parrot120, has an obvious family resemblance to the iFlight TurboBee 120RS V2. It is a model for 3 inch propellers, larger than the classic Toothpicks. It is based on a carbon structure with a 13.2 cm motor diagonal, 2.5 mm thick with 2.3 cm spacers. The bare frame weighs 18 grams.

HGLRC chose 1106 to 3800KV brushless motors for Gemfan 3025 two-bladed propellers, driven by a 4-in-1 ESC FD13A 13A and an FD411 flight controller based on an F4 processor, flashed with Betaflight, with an active OSD. The video part is provided by a Caddx EOS2 Turbo EOS2 camera combined with a 5.8 GHz FD VTX video transmitter capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW, 200 mW or 400 mW to take a little distance. The video antenna is a dipole on a u.FL connector.

The central fairing protects the electronics, channels the video antenna and offers 2 holes for guides for radio antennas. The Parrot132 is available without a radio receiver, or with an XM+ receiver from FrSky or A8S from Flysky. Weight? 76 grams without battery. HGLRC does not recommend any particular battery model, it can be assumed that the Parrot132 is designed for Lipo 4S of about 600 mAh. The price? From $127.99 at Banggood Store.

SPECS

Product Details

Features Brand Name: HGLRC
Item Name: PARROT132 FPV Racing Drone
Net Weight:76g (Without receiver)

HGLRC PARROT132 Frame Kit
Material: Carbon Fiber
Model: PARROT
Wheelbase: 132mm
Type: 3" Frame
Arm Thickness: 2.5mm
Standoff Height: 23mm
Flight control installation holes: 16*16/20*20mm
Support camera: 14X14mm
Weight: 18g

HGLRC FD411 Flight Controller
Item Name:FD411 Flight Controller
MPU: MPU6000-SPI
CPU: STM32F411CEU6
Black Box: NO
Input Voltage: 2-4S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 2A
Size: 21x21mm
Installing Hole: 16x16mm, M2
Support SBUS/PPM/DSMX/iBUS receiver
Weight:2.7g
Specification HGLRC FD13A 4in1 BLS 2-4S ESC
Item Name: FD13A 4in1 2-4S ESC
Input Voltage: 2-4S Lipo
Constant Current: 13A
Peak Current: 15A (5S)
BEC Ouput: NO
Size: 23x24mm
Installing Hole: 16x16mm, M2
Weight: 3.2g
CPU: SILABS EFM8BB2 48MHZ
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode: DSHOT600/300/150/Oneshot125/42,MultiShot,PWM

HGLRC FD VTX Micro 400mW
Item Name: FD VTX Micro
Output Power: PIT/25mW/100mW/200mW/400mW Switchable
Input Voltage: DC 5V
Installing Hole: 16x16mm, M2
Size: 20x20mm
Antenna: IPEX
Weight: 1.5g

Caddx.us Turbo Eos2 FPV Camera
Item Name:Turbo EOS2
Image Sensor:1/3" CMOS
Horizontal Resolution:1200 TVL
TV System:NTSC / PAL option
IMAGE:16:9
Synchronization:Internal
Electronic Shutter:PAL: 1/50-100,000
NTSC: 1/60-100,000
S/N Ratio: >52dB (AGC OFF)
Video Output:CVBS
Lens:2.1mm
Auto Gain Control: YES
BLC: YES
WDR:Global WDR
DNR:2 DNR
Dimensions:14mm"14mm*16mm
Input Power:DC 3.3-6V
Working Temperatur:-20℃~+60℃
Work Humidity:20%~80%
Net weight:3.5g

FD1106 3800KV Brushless Motor
Motor:KV 3800KV
Stator Diameter:11mm
Stator Thickness:6mm
No.of Stator Arms:9S
No.of Rotor poles:12P
Motor Resistance:290mΩ
Max Continuous Current:6.37A
No.of Cells(Lipo):3-4S
ESC:13A
Recommended Prop(inch):2.5 Inch
Wire type:28AWG x 80mm
Weight:6g

Gemfan 3025 2Inch 2-Blade Propeller
Quantity: 3 CW & 3 CCW
