Hubsan H501S

Hubsan H501S
Brand: Hubsan
Category: Drones
  • 1: 1080P High Definition Camera
  • 2: 20 minutes flight time
  • 3: Rotor size: 185mm (7.3 inches )
  • 4: Max current: 16A
  • 5: Max Flight radius:300m
  • 6: Camera : 1080P,FOV: 110 degree

Hubsan H501S - Specs

Product Details

  • Features
    5.8G 200mW FPV Real-time Video Transmission
    Share the videos and photos to the LCD display at anytime anywhere
    1080P HD Camera
    The built in HD camera are tuned amazingly to capture stunning pictures and videos from the sky
    Follow Me Mode
    The built-in GPS enables the H501S flying itself to capture your adventure wherever you are
    Headless Mode
    When enters into headless mode, the controls will be set to one direction based on the quadcopter's current path
    One Key to Return:
    The fight control system will automatically control the quadcopter to turn to home and land.
    6 Axis Gyro:
    Strong stability, stronger wind resistance, easier to control.
    Unmatched Brushless Motor:
    Each motor is made by the superb technology, more powerful and more durable.
    Longer Flight Time:
    The intelligent battery with large capacity extends the flying time last to 20 minutes.
  • Specification
    1080P High Definition Camera
    GPS Positioning
    Automatic Return To Home
    Altitude Hold
    Follow Me Function
    Flight time 20 Minutes(7.4V 2700mAh Lipo battery)
    Distance: 300meters
    Controller Battery: 1300mAh 7.4V Lipo battery(included)
    GPS FPV Quadcopter with brushless motor
    20 minutes flight time
    Follow me Mode
    RTH mode( automatic return home )
    Failsafe mode
    Altitude mode
    Headless mode
    LED Indicators
    support 4G-64G TF card (not included)
    Product specification
    Rotor size: 185mm (7.3 inches )
    Camera : 1080P,FOV: 110 degree
    Brushless Motor: KV1650 PM1806 x4
    Quad copter Battery: 7.4V 2700mAh Lipo (included)
    ESC: brushless 12A x4
    Max current: 16A
    Rubber feet
    Max Flight radius:300m
    H-edition Max flight radius: 400m
    Flight time: around 20 minutes
    Charging time: around 210 minutes
    Adaptor + balance charger ( included)
    2.4G and 5.8G FPV Controller
    Controller Battery: 1300mAh 7.4V Lipo battery(included) or 4 x AA (not included)

    Package size: 32.70 x 16.00 x 35.00 cm / 12.87 x 6.3 x 13.78 inches
    Package weight: 1.9300 kg
    Product size: 32.00 x 15.00 x 34.00 cm / 12.6 x 5.91 x 13.39 inches
    Product weight: 0.8000 kg

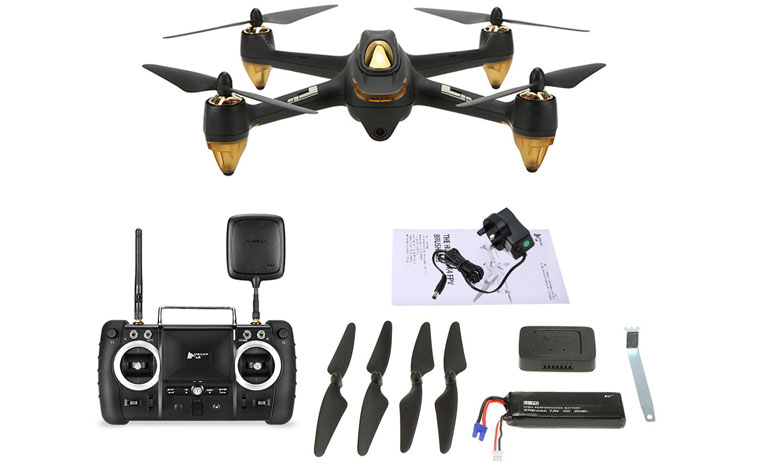

  • Package content
    1 x H501S Aircraft Body,
    1 x H901A Remote Controller,
    1 x Transmitter Sun Shade,
    1 x 7.4V 2700mAh LiPo Battery,
    1 x 7.4V 1300mAh LiPo Battery,
    4 x Propeller,
    1 x AC Adapter,
    1 x Balance Charger,
    1 x Wrench,
    1 x Camera Filter,
    1 x H501S Instruction Manual,
    1 x Disclaimer Warning

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

Hubsan H501S HD Aerial Drone

Hubsan H501S is a quadcopter model from Hubsan, which falls under the standard 250 and is equipped with an FPV kit with a camera that shoots video in HD quality. This model is sold in three versions, each of which differs in some technical characteristics.

Special features

  • Built-in GPS module
  • Brushless motors
  • Auto return and failsafe function
  • Follow me option
  • Altitude Hold Mode Altitude Hold Mode
  • “Headless” mode

It makes no sense to review the model Hubsan H501S pro, as it differs only in the remote. Due to the improved antennas, the flight range is increased to 1,500 meters.

Hubsan H501S HD

Quadcopter Hubsan H501S is available in several versions:

  • Low Edition – Economy Edition
  • Standard Edition – Basic Edition
  • High Edition – improved version

Each of these quadcopter models differs in such parameters:

  • Control range
  • Maximum flight time

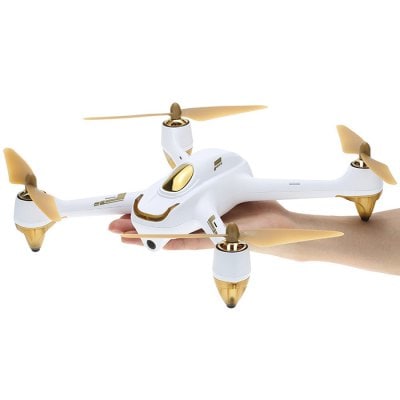

The gadget is available in two colors: brushless black and brushless (white). The quadcopter design is complemented by a diode backlight, which allows it to be launched in the evening and at night.

The included quadrocopter contains:

  • Remote Control
  • Battery
  • Charger
  • Power supply to charge
  • 2 rotors “A”
  • 2 rotors “B”
  • Spare screws
  • Key
  • Instruction manual

In order to update the software, you need to use a USB-connector, which is located in the compartment for the battery.

Quadcopter has several flight modes:

  • Return home
  • Follow mode
  • Height hold
  • Beginner Mode

Under these buttons are the GPS and video switches. The “headless” mode can be activated by pressing the left stick. The right stick includes the Follow me feature.

If necessary, you can purchase a remote control with the Android operating system.

The monitor displays all data on the flight of the quadcopter: information on the battery status, flight mode, number of satellites, coordinates

The quadcopter is equipped with brushless motors designed according to the latest standards in the field of radio electronics and having high efficiency with an extended service life.

To ensure the safe flight of the gadget, self-locking screws are used. They prevent emergency situations, eliminating the uncontrolled fall of the quadcopter.

The transmitter has an FPV module that operates at an analog frequency of 5.8 GHz. The user sees the image in the current time, without delay. The radius of action is 300 m. By installing external antennas, this figure can be increased to 1200 m.

The Hubsan x4 CAM brushless quadcopter is equipped with an HD-quality camera, the image transfer rate is 17 frames per second. The camera provides good quality shooting both during the day and at night.

This model of a racing drone displays aerial photography at a high level. The transmitters are all working properly, transmitting to the viewer the high-flying feeling to the maximum quality.

An intelligent type LiPo-battery (weighing 105 g) is built into the quadrocopter; its parameters are 7.4V 2700mAh 10С 20Wh. Charging time for the device is 3.5 hours. You can shorten this period to one hour by purchasing an IMAX B6 charging type.
