Brand: Hystou
Category: Mini PC
  • 1: CPU: Intel core i7-8550U
  • 2: GPU: Intel UHD Graphics 620
  • 3: Available RAM: 4GB / 8GB / 16GB
  • 4: SSD support: 128GB / 256GB
  • 5: Support 4K video display

Our Rating

The overall rating is based on review by our experts

  • Design 9 / 10
  • Features 10 / 10
  • Performance 9 / 10
  • Connectivity 9 / 10

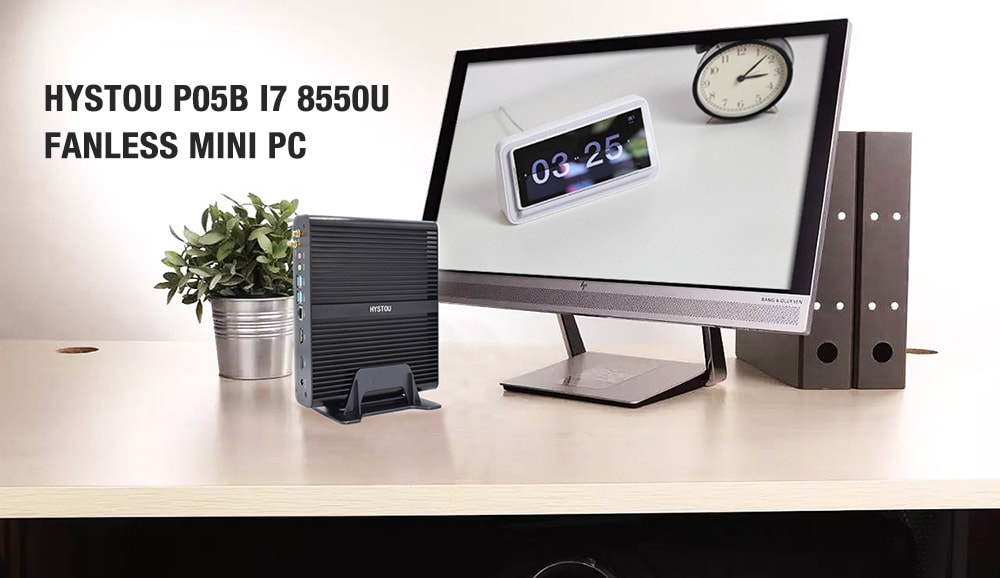

HYSTOU P05B I7 8550U Fanless Mini PC

The HYSTOU P05B is an excellent Mini PC that is powered by an Intel Core i7 8550U processor and has a fanless casing that is best suited as a low-power entertainment system.


HYSTOU P05B is a barebones mini PC and is best suited as a modest entertainment system. Low power consumption, a full range of connections and a fan will appeal to those who want to have a system with low power consumption, but offers much better performance than the Atom chipset.

Inside the HYSTOU P05B has an Intel Core i7 8550U on ULV (Ultra Low Voltage). These chipsets are also mainly available on laptops and low-power systems. There are three versions available, the base model offers an Intel Core i3 4010U chipset with 4 GB of LPDDR3 RAM and about 64 GB of internal memory.


They are followed by models of the average price, Intel Core i5 4200U and an extreme model with Intel Core i7 4500U, but it comes with a little more than 8 GB of RAM and 128 GB of internal memory. All models come with both support for a 2.5-inch hard drive, as well as an mSATA SSD.

Regardless of the model, the HYSTOU P05B does not have a separate video card, and thus it is quite limited with the Intel HD 4400. As expected, this will not be a game-oriented computer, especially in 3D games. Other games will work fine. However, the system can easily work with 4K video output.

Intel Core i7 8550U is sure a great chipset, it offers high performance compared to systems based on Intel Atom. Unfortunately, the lack of discrete graphics means that it is not gaming. But if you are looking for a low-power entertainment system, then the HYSTOU P05B is likely to be a great choice.


Product Details

Features ● CPU: Intel core i7-8550U
● GPU: Intel UHD Graphics 620
● Available RAM: 4GB / 8GB / 16GB
● SSD support: 128GB / 256GB
● Support 4K video display
● 1000Mbps Ethernet, fast network access
● 2.4GHz + 5GHz dual-band WiFi
Specification Brand: HYSTOU
Type: Mini PC
CPU: Intel Core i7-8550U
Core: Quad Core
GPU: Intel UHD Graphics 620

Decoder Format: H.263,H.264,H.265,HD MPEG4
Video format: All
Audio format: All
Photo Format: All
Support 5.1 Surround Sound Output: Yes

5G WiFi: Yes
Bluetooth: Bluetooth4.0
Power Supply: Charge Adapter

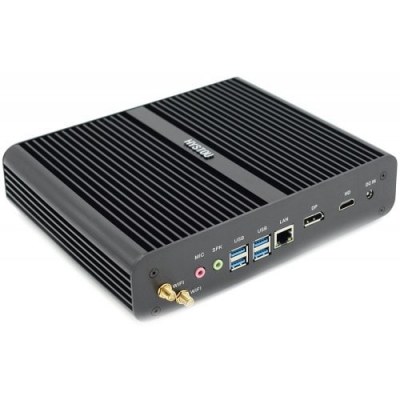

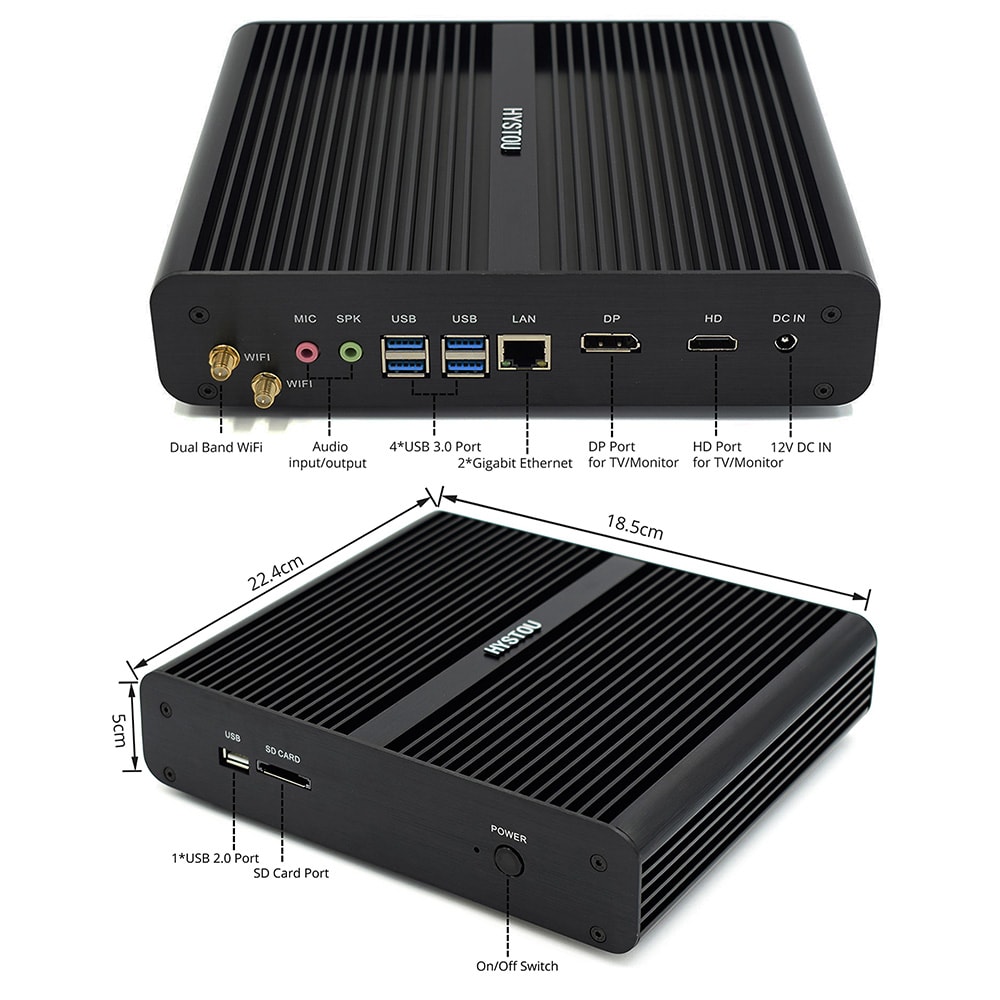

Interface: DC Power Port,DP,HDMI,LAN,Mic,SPK,USB3.0,WiFi Antenna
Antenna: Yes
Language: Multi-language
HDMI Version: 1.4
Other Functions: 3D Games,3D Video,DLNA,ISO Files,Miracast,NTSC
External Subtitle Supported: Yes
Power Consumption.: 15W
RJ45 Port Speed: 1Gbps

System Bit: 64Bit

Power Type: External Power Adapter Mode

Product weight: 1.8000 kg
Package weight: 2.7000 kg
Product size (L x W x H): 22.40 x 18.50 x 5.00 cm / 8.82 x 7.28 x 1.97 inches
Package size (L x W x H): 31.50 x 26.00 x 8.00 cm / 12.4 x 10.24 x 3.15 inches


Post a Review Please not that each user review reflects the opinion of it's respectful author.
  1. Liviu IONESCU

    Good intentions, poor implementation

    The P05B with Intel Core i7 8550U is certainly a good intention but it lacks a lot in implementation. I have bought one through the Gearbest site.
    First it was offered with a poor BIOS (an AMI evaluation copy) and there are no BIOS updates to correct this. I have even contacted the factory but they ignored me.
    Seconly, the HDMI output does not support HD video and provides audio only in old style BIOS loading (you need to use legacy mode for the Video driver). The DP however is ok and offers UHD and audio in UEFI mode.
    Thirdly, the Processor is well cooled but the M2 SSD is not. I found out that it can reach 62 degrees Celsius (which is "Too high" as reported by Samsung). One M2 SSD (Crucial) already failed after 18 months of operation.
    For the rest, it looks great and the lack of fan noise makes it siutable for entertainment systems
