iFlight TurboBee 66R

iFlight TurboBee 66R
Brand: iFlight
Category: Drones
  • Feature 1: Input voltage 2-4S
  • Feature 2: Gyro: ICM-20689
  • Feature 3: 2x UART ports
  • Feature 4: VTX: SucceX Whoop-VTX 25/100/200mW
  • Feature 5: Blackbox FLASH 8MB
  • Feature 6: Firmware: BlheliS G-H-30

iFlight TurboBee 66R - Price

iFlight TurboBee 66R - Specs

Product Details

  • Features
    Brand name: iFlight
    Item name: TurboBee 66R 1.2 Inch 1-2S Whoop FPV Racing Drone
    Brushless Motor: iFlight BeeMotor 0802 12000KV 1-2S
    Flight Controller & ESC: SucceX F4 Whoop Flight Controller 2-4S 12A AIO Board
    VTX: SucceX Whoop-VTX 25/100/200mW
    Camera: Caddx.us Turbo Eos2 2.1mm 16:9 NTSC Cam
    Weight: 42.9g
  • Specification
    -STM32F411
    -Input voltage 2-4S
    -Gyro: ICM-20689
    -2x UART ports
    -OSD inbuilt
    -Baro: NO
    -Blackbox FLASH 8MB
    -BEC 5V 2A Cont.
    -Size:28.5*28.5mm
    -Mounting holes:φ3mm 25.5*25.5mm
    -Weight: 6.1g
    -BF target : IFRC/IFF411PRO(STM32F411)
    -Current scale: 210

    -Firmware: BlheliS G-H-30
    -Input voltage : 2-4S
    -Continuous current: 12A
    -MCU: BB21F16G
    -BEC: None
    -ESC protocol: PWM, oneshot125, multishot, dshot150, 300, 600, etc.

    -Power: PIT/25/100/200mW
    -Antenna interface: IPEX (UFL)
    -Telemetry: IRC Tramp
    -Size: triangle 26mm*19mm
    -Mounting holes: none
    -Weight: 2g
  • Package content
    1 x TurboBee 66R Frame Kit
    1 x SucceX F4 Whoop Flight Controller 2-4S 12A AIO Board
    1 x SucceX Whoop-VTX 25/100/200mW VTX
    4 x BeeMotor 0802 12000KV 1-2S Brushless Motor
    1 x 5.8Ghz ipex UFL Plug Antenna
    1 x Caddx.us Turbo Eos2 Camera
    1 x iFlight 30mm Duct set
    2 x 10*100mm Battery Strap
    1 x XT30U Male with cable wire
    4 x HQ 30mm 4-blade 1mm Hole Balck Propeller CW
    4 x HQ 30mm 4-blade 1mm Hole Balck Propeller CCW
    1 x 14mm Black Camera Mount TPU 3D Printed Parts ( 1 Pair )
    1 x VTX Buckle TPU 3D Printed
    1 x Antenna Bracket TPU 3D Printed
    1 x Receiver Mount TPU 3D Printed
    2 x Black Small Antenna Protection Cap
    2 x Black Small Antenna Protection Tube 4CM

Our Rating

The overall rating is based on review by our experts

8.5 4.3 1
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

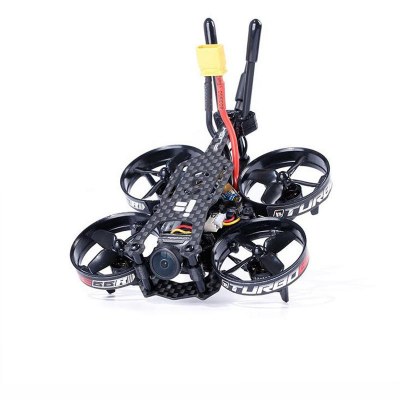

iFlight TurboBee 66R 1.2 Inch 1-2S Whoop FPV Racing Drone

The iFlight TurboBee family continues to grow! The TurboBee 66R is the smallest device in the range – for the moment – with a 6.6 cm diagonal measurement of the motor engine. It follows the principle of the other models: a carbon structure on which the motors are fixed, brushless 0802 to 12000KV for 3 cm quadripal propellers with a central hole of 1 mm. The ESC that drives them is a SucceX 12A DShot600. The propellers are enclosed in flexible plastic protections.

The flight controller is a SucceX based on an F4 processor flashed with Betaflight including an active OSD. The camera is a Caddx 1200TVL Turbo EOS2 associated with a 5.8 GHz SucceX Whoop transmitter capable of transmitting at 0 mW (pitmode), 25 mW (the maximum allowed in France), 100 mW and 200 mW, with support for the IRC Tramp protocol for settings via remote control and OSD. The antenna is a dipole mounted on a u.FL connector.

The device weighs 43 grams without the battery. The power socket is an XT30. iFlight recommends 1S or 2S batteries (not easy to find with an XT30 connector). The ESC and flight controller support the 3S and even the 4S, but the engines are unlikely to withstand the impact. The TurboBee 66R is available without a radio receiver, with a Flysky A8S or FrSky XM+ receiver. The price? It will be offered from $119.99 at Banggood.
