Skystars Angela145 4K

Skystars Angela145 4K

Brand: SKYSTARS
Category: Drones
  • 1: CPU: STM32F405RGT6
  • 2: Input Voltage: 2-4S Lipo
  • 3: Built-in Betaflight OSD to adjust PID
  • 4: BEC Output: 5V@2A
  • 5: Support Subs/ PPM/ DSMX receiver

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

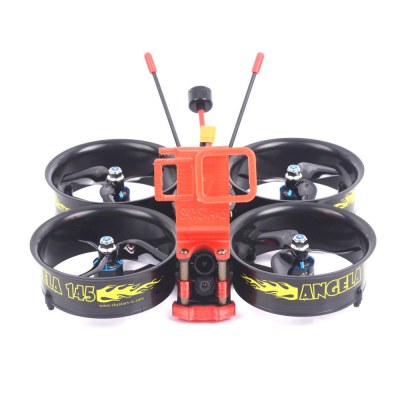

Skystars Angela145 4K 145mm F4 OSD 3-4S 3 Inch Whoop FPV Racing Drone

Skystars is offering a new Cinewhoop. A Cinewhoop is a small multirotor with propeller protection, which is equipped with an HD camera. The Angela145 4K is not that small, since its motor motor diagonal is 14.5 cm. This is what allows it to carry a GoPro HD camera. It is based on a carbon structure with 3 mm thick arms. The motors are 1408 to 3800KV brushless motors for Gemfan three-bladed propellers secured in duct-type protections. The ESC is a 4-in-1 35A DShot600 powered by a flight controller based on an F4 processor. It is flashed with Betaflight firmware, and offers an active OSD.

How does the video part justify the 4K mention? The Angela145 4K is based on a RunCam Hybrid 4K camera, a model composed of 2 cameras. One films in analog to ensure the return of the image in real time and pilot in FPV. The other films in 4K at 30 frames per second or 2.7K at 60 frames per second, and stores the sequences on a microSD memory card on board the camera. The FPV part is completed by a 5.8 GHz transmitter compatible with 48 channels and capable of transmitting at 25 mW (the maximum authorized in France), 200 mW and 500 mW.

The Angela145 4K comes with a TPU bracket for a GoPro Hero 6, 7 or 8 camera. What’s the point since the camera already films in 4K? The quality of the images from the RunCam does not match that of a GoPro, especially in the absence of a 4K mode at 60 frames per second and stabilized. Or GoPro’s Superview which offers an extra wide angle. There are therefore potentially 3 cameras on board the aircraft! Who says better?

The Angela145 4K is to be powered with 3S or 4S batteries from 1500 to 1800 mAh, according to the technical data sheet, with an XT30 plug. In practice, it is likely that batteries with a little less capacity will be more suitable. The device is delivered without a radio receiver, or with an X-XSR, XM+ or R9MM receiver from FrSky. It will be available from $292.59 at Banggood Store.

SPECS

Product Details

Features Brand Name: Skystars
Model: Angela145 4K
Item Name: 145mm F4 OSD 3-4S 3 Inch Whoop FPV Racing Drone
Receiver: Without Receiver/ Frsky XM+ RX/ Frsky R-XSR RX/ Frsky R9MM RX (Optional)
Weight: 258g
Specification Brand Name: Skystars
Model: Angela145
Wheelbase: 145mm
Material: 3K Carbon fiber
Arm Plate Thickness: 3mm
Thickness of top plate: 2mm
Thickness of bottom plate: 3mm
Screws: YFS 12.9 class screw
Weight: 128g


Input Voltage: 2-4S Lipo
Constant Current: 35A
Burst Current: 38A
BEC Ouput: NO
Firmware: BLhelis
Size: 27x27mm (main board) 27x31mm (including pad)
Installing Hole: 20x20mm, M2
Weight: 4g
MOS Tube: TOP QUALITY MOSFET
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150/300/600, forward and reverse

Output power: 25mW/200mW/500mW switchable
Control mode:button OR Channel changes and Pitmode setting
BAT: 7-26V,BEC 5V-1A
145mA----500mW
Video system: NTSC/PAL
Antenna: IPEX
Frequency: 5.8GHz 5 bands 48channels
Weight: 3.2 g
Mounting Hole: 20mmx20mm

Recommend 3-4S 1500-1800mAh Lipo
