SKYSTARS G730L
-
1: CPU: STM32F405RGT6
-
2: Micro F4 Flight Control Board
-
3: Input Voltage: 2 - 6S LiPo
-
4: BEC Output: 5V 3A
-
5: Input Voltage: 2-6S Lipo battery
-
6: Wheelbase: 300mm
SKYSTARS G730L - Specs
Product Details
-
Features- Support Dshot 1200 in default out from factory
- Also support Oneshot42, Oneshot125, Multishot, Dshot150, Dshot300 and Dshot600
- Ultra light and ultra small ESC
- The color of RGB LED can be set by Blhelisuite.
-Powered by high performance STM32 MCU frequency up t0 48 MHZ
-Composed of 3Oz gold plated PCB
-Flashed with the latest BLheli32 firmware
-Supports higher KV motor and more power load, more suitable for violent flight of racing drone
-Aluminum heat sink effectively slow down the temperature rise -
SpecificationFrame Kit
Wheelbase: 300mm
Arm Plate Thickness: 4mm
TOP&Bottom Plate Thickness: 2mm
Side Plate Thickness: 2mm
Material: 3k Carbon Fiber
Weight: 163g
Flight Controller
Micro F4 Flight Control Board ( D-Shot Version )
MPU: 6000
CPU: STM32F405RGT6
Input Voltage: 2 - 6S LiPo
Built-in BetaFlight OSD to adjust PID
BEC Output: 5V 3A
Size: 30.5 x 30.5mm board, 3mm mounting holes ( M3 )
Weight:7g
Support SUBS / PPM / DSMX receiver
ESC
50A 2-6S Blheli_32 RGB light ESC:
Input Voltage: 2-6S Lipo battery
Constant Current: 50A
Peak Current: 60A
BEC Output: no
CPU: STM32F051 BLHeli - 32 firmware
Size: 26 x 15 x 6MM
Weight: 7.4g
MOS Tube: TOP QUALITY MOSFET
VTX
FPV Transmitter
Output power: 25mW / 200mW / 500mW / 800mW switchable
Control mode: button OR Channel changes and Pit mode setting through PWM
With a microphone, you can switch the audio flexibly
BAT: 7 - 26V, BEC 5V - 1A
310mA - 800mW
Video system: NTSC / PAL
Motor
Skystars 2306 KV1800, race edition
Camera
Model RunCam Swift 2
Image Sensor 1/3" SONY Super HAD II CCD
Horizontal Resolution 600TVL,4:3
Lens 2.3mm 150-degree
Signal system PAL
Integrated OSD: yes
Integrated MIC: yes
S/N Ration >60dB ( AGC OFF )
Electronic Shutter Speed PAL: 1/50 - 100,000; NTSC:1/60 - 100,000
AutoGain Control ( AGC ): yes
Back light compensation ( BLC ): yes
Min.illumination 0.01Lux/1.2F
WDR D-WDR
DNR 2DNR
Day/Night Color / Auto / B&W
Power DC 5 to 36V
Net weight 14g
Dimensions 28.5mm x 26mm x 26mm
DP7056C 7 inch Propeller
RC Drone Finger Tracker
Flashing LED light, buzzer
Battery tie: 20MM, anti-slip pad
Powered by 3.7 100mAh LiPo battery ( included )
Pagoda 2 Antenna
Gain: 1.6dBi
Axial ratio: 1.0 ( near perfect )
Bandwidth: 5.5GHz - 6.0GHz
Radiation Efficiency: 95 percent
VSWR: less than or equal to 1.22
Connector: MMCX
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
10.9,12.9 screws
Aluminum column 30MM
Package size: 36.00 x 26.00 x 6.00 cm / 14.17 x 10.24 x 2.36 inches
Package weight: 0.4800 kg
Product size: 19.00 x 19.50 x 4.50 cm / 7.48 x 7.68 x 1.77 inches
Product weight: 0.3900 kg -
Package content1 x SKYSTARS G730L RC Drone
3 x Strap
1 x Anti-slip Pad
4 x Motor Nut
8 x Propeller

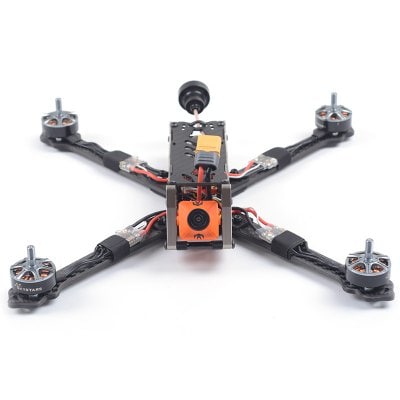

SKYSTARS G730L FPV Racing RC Drone
Featuring 30cm wheelbase, the SKYSTARS G730L drone is compatible wih 7 inch propellers. Being quite large, it is more suitable for long range FPV flights than for high speed racing competitions.
Like the HobbyMate Comet, the SKYSTARS G730L quadcopter is also equipped with F4 flight controller. By default it comes with BetaFlight firmware. It can be configure with multiple flight modes (Acro, Horizon and Angle). The on-board RunCam Swift 2 camera is matched with a up to 800mW video transmitter.
