Skystars StarLord GK7

Skystars StarLord GK7

Brand: SKYSTARS
Category: Drones
  • 1: Wheelbase: 297mm
  • 2: Bottom plate thickness: 2mm
  • 3: Top Plate Thickness: 2mm
  • 4: FC Pattern: 20*20 and 30*30mm
  • 5: F4 Flight Control Board

Our Rating

The overall rating is based on review by our experts

8.5
  • Design 9 / 10
  • Features 8 / 10
  • Performance 9 / 10
  • Connectivity 8 / 10

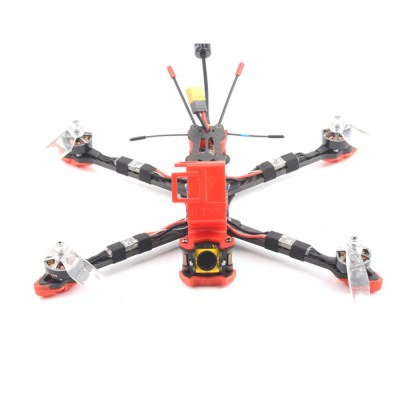

Skystars StarLord GK7 297mm F4 OSD 3-6S 7 Inch FPV Racing Drone

This racer is part of the large format range, it is an apparatus equipped with 7 inch propellers. The StarLord GK7 measures 29.7 cm of motor engine diagonal, with a carbon structure whose arms are 2 mm thick. It is therefore not a machine ready to handle crashes, but a machine designed for thoughtful flights. The motors are 2306 to 1750KV brushless motors for 7 inch (7045) three-bladed DALprop propellers. The flight controller is a Skystars TurboS based on an F4 processor flashed with Betaflight, offering an active OSD. It is associated with a 4 ESC of 40A BLheli_S DShot600.

The FPV camera is a Caddx Ratel, a 1200TVL. It provides the signal to a 40-channel 5.8 GHz transmitter capable of transmitting at 25 mW (the maximum allowed in France), 200 mW, 500 mW and 800 mW to go further (where allowed). The antenna is a polarized model connected via an MMCX connector. The StarLord GK7 can be delivered with or without GPS, with or without radio receiver. Among the receiver choices, there are the XM+, R-XSR, or FrSky’s R9mm. The food? The device is compatible with Lipo from 3S to 6S, from 1500 to 2600 mAh, with an XT60 connector. A TPU support for GoPro is provided with the device to come back from flights with beautiful images… The price? From $207.99 at Banggood Store.

SPECS

Product Details

Features Brand Name: Skystars
Model: GK7
Wheelbase: 297mm
Bottom plate thickness: 2mm
Top Plate Thickness: 2mm
Top and bottom plate spacing: 25mm (aluminum column height 25mm)
FC Pattern: 20*20 and 30*30mm
FPV Camera Spacing: 19mm
Screws: YFS 12.9 class screw
Specification Brand Name: Skystars
Model: StarLord GK7
Item Name: 297mm F4 OSD 3-6S 7 Inch FPV Racing Drone
Drone Wheelbase: 297mm
Optional Model: With GPS / Without GPS
Optional Receiver: Without Receiver/ Frsky XM+ Receiver/ Frsky R-XSR Receiver/
Frsky R9MM Receiver
Weight: 436g

F4 Flight Control Board (D-Shot Version)
Brand Name: Skystars
Model: TurboS
MPU: 6000
CPU: STM32F405RGT6
Input Voltage: 2-6S Lipo
Built-in Betaflight OSD to adjust PID
BEC Output: 5V@3A
Size: 30.5x30.5mm board, 3mm mounting holes (M3)
Weight:6g
Support Subs/PPM/DSMX receiver

Weight: 7.4g
Size: 60mm x 17mm
Gain: 2.5dbi
Axial ratio: <1.0 (near perfect)
Bandwidth: 5.5GHz-6.0GHz
Radiation Efficiency: 98%
VSWR: <=1.2
Connector: SMA
Works great as both a transmitting or receiving antenna
Compatible with other styles of 5.8GHz RHCP antennas
