SKYSTARS Ghostrider X95
-
1: Input Voltage: 2S LiPo battery
-
2: BAT: 7 - 26V, BEC 5V - 1A
-
3: Firmware: BLHeli - S
-
4: Constant Current: 20A
-
5: Horizontal Resolution: 800TVL
-
6: Signal System: PAL / NTSC
SKYSTARS Ghostrider X95 - Specs
Product Details
-
Features● Perfect power system of SKYSTARS Micro F4 flight controller + BLHeli - S 20A ESC + 1104 7500KV motor provides powerful power for you to experience the ultimate flying pleasure and, more importantly
● The one-key correction function make you can continue to fly while the drone bomb
● Note: when an obstacle is stuck in the motor, it is not recommended to use the one-button correction function, which will easily cause the motor to burn out -
SpecificationFrame Kit
Item name: Ghostrider X95 Frame Kit
Wheelbase: 95mm
Material: elastic plastic
Screws: 10.9 class screw
Weight: 25g
Flight controller
Micro F4 Flight Control Board ( D-Shot Version )
MPU: MPU6000-SPI
CPU: STM32F405RGT6, dual 8K
Built-in Betaflight OSD to adjust PID
BEC Output: 5V 2A
Size: 25 x 25mm board, Installing Hole: 20x20mm, mounting holes ( M2 )
Weight: 2.3g
Support Subs/PPM/DSMX receiver
ESC
20A 2 - 4S BLHeli - S 4 in 1 ESC:
Input Voltage: 2S LiPo battery
Constant Current: 20A
Peak Current: 28A
BEC Output: no
Firmware: BLHeli - S
Size: 27 x 27mm ( main board ), 27 x 31mm ( including pad )
Installing Hole: 20 x 20mm, M2
Weight: 4g
MOS Tube: top quality MOSFET
Support Damped Mode, Oneshot125, Oneshot42, Multishot, Dshot150 / 300 / 600, forward and reverse
FPV Transmitter
Mini FPV Transmitter
Output power: 25mW / 100mW / 200mW switchable
Control mode: button OR channel changes
BAT: 7 - 26V, BEC 5V - 1A
190mA - 200mW
Video system: NTSC / PAL
Frequency: 5.8GHz 5 bands 40 channels, with Raceband: 5645 - 5945MHz
Size: 24 x 24mm ( L x W ), Hole: 20 x 20mm
Weight: 2.5g
Motor Skystars 1104 7500KV , race edition
Camera
Image Sensor: 1/3 inch CMOS sensor
Horizontal Resolution: 800TVL
Lens: 2.3mm Lens
FOV: 115 degree ( 2.3mm )
Signal System: PAL / NTSC
S/N Ratio: more than 50dB ( AGC OFF )
Min.illumination: 0.1Lux/1.2F
Day / Night: Auto
Power: DC 5V
Net weight: 3g
Dimensions: 18mm x 14mm x 13mm
Propeller
Paddle Gemfan 2040
LED Buzzer: RGB LED X2 BBX1
Antenna: brass antenna
Product weight: 0.0400 kg
Package weight: 0.2800 kg
Product size (L x W x H): 10.00 x 10.00 x 4.50 cm / 3.94 x 3.94 x 1.77 inches
Package size (L x W x H): 17.00 x 17.00 x 7.00 cm / 6.69 x 6.69 x 2.76 inches -
Package content1 x SKYSTARS Ghostrider X95 RC Drone ( No Battery )
8 x Propeller
1 x Battery Tie
1 x Anti-slip Pad for Battery

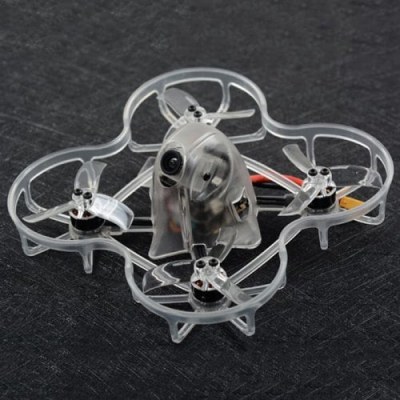

SKYSTARS Ghostrider X95 FPV Racing RC Drone
FPV quadrocopters come in a variety of shapes and sizes. Today we will present you a X95 microdrones from SKYSTARS which are announced under the names X95 Ghost Rider. Its size is 95 mm.
In fact, the SKYSTARS Ghostrider X95 is a near-perfect FPV RC drone with a unique design and protection features, which means excellent handling and more effective flight performance.
